SWEEX PU053 - QUICK_START_GUIDE Manual

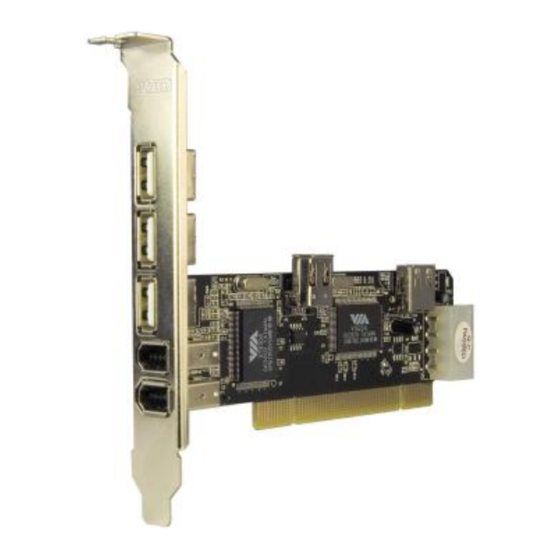

4 port usb 2.0 & 3 port firewire pci card
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

English version
English version

Introduction

First of all, many thanks for purchasing this Sweex 4 Port USB 2.0 & 3 Port Firewire PCI Card. This card enables you to easily add four USB ports
and two FireWire ports to the PC.
To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during
installation or operation of this product, go to www.sweex.com and look under the heading service & support.
Hardware
Take the following precautionary measures prior to installing the hardware:
1. Ensure the PC is switched off and disconnected from the mains.
2. Also, disconnect the printer and monitor cables (they have their own power supply) to be absolutely sure that the PC is not live.
3. Now unscrew the computer casing.
4. After having unscrewed the computer casing, you must ensure that you are free of any static electricity. Do this by touching a (neutral) pipe of the
central heating system or an unpainted water pipe. Please note that you must not use magnetic screwdrivers. Before you proceed any further, briefly
touch the iron frame of the PC casing. Furthermore, make sure that you minimise contact with any contact points of the PC, PCI card or the memory.
5. Find a vacant PCI slot and remove the metal guard plate part of the computer casing in front of the relevant slot. On occasion the card does not
allow to be inserted in the PCI slot smoothly. Should this be the case, do not force anything, but try another available slot.
6. Once the card has been successfully installed, check whether all other cards are still properly inserted in the PCI slots. It is possible that the
other PCI cards are lifted up slightly when installing a new PCI card; as a result, the relevant cards or even the entire PC may no longer operate
correctly.
7. You can now replace the casing on the computer base and correctly reconnect all cables to and from the PC.
8. Now switch on the PC again.
9. Windows will now detect the card.
Installation under Windows 98SE
We advise you to ensure the operating system is up-to-date before starting the installation. This can be easily checked by starting up Internet Explorer
and selecting the option "Windows Update" in the "Extra" menu. Once the hardware has been detected, Windows shows the following screen:
Click "Next".
PU053 Sweex 4 Port USB 2.0 & 3 Port Firewire PCI Card


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU053 - QUICK_START_GUIDE and is the answer not in the manual?

Questions and answers

Related Manuals for SWEEX PU053 - QUICK_START_GUIDE

Summary of Contents for SWEEX PU053 - QUICK_START_GUIDE

  • Page 1 PU053 Sweex 4 Port USB 2.0 & 3 Port Firewire PCI Card Introduction First of all, many thanks for purchasing this Sweex 4 Port USB 2.0 & 3 Port Firewire PCI Card. This card enables you to easily add four USB ports and two FireWire ports to the PC.
  • Page 2 English version Here, select the option “Search for the best driver” and click “Next”. Untick all options. Then click “Next”. Select the first option and click “Next”. To complete this part, click “Next” and then “Finish”.
  • Page 3 English version Complete the above installation procedure for this part once more. Click “Next”. Here, select the option “Search for the best driver” and click “Next”.
  • Page 4 English version Tick the last option: “Specify a location”. Insert the CD-ROM in the CD-ROM player. Go to the CD-ROM via “Browse”, and select the folder “Drivers”. In this folder, select the relevant operating system; Win 98. Then click “Next”. Note: In the illustration, “X” stands for our CD-ROM station. Your drive letter may be different! Click “Next”.
  • Page 5 Here, select the option “Search for the best driver” and click “Next”. Untick all options. Then click “Next”. Select the first option and click “Next”. To complete this part, click “Next” and then “Finish”. Now the hardware has been installed successfully. Finally, we advise you to restart the PC.
  • Page 6 Sweex PCI Combo Card will be installed automatically. If you do not have the possibility of updating Windows, a separate VIA USB 2.0 driver must be installed in order to use the USB 2.0 feature. It can be found in the Sweex autorun menu (starts automatically after inserting the CD-ROM) under the “VIA USB2.0 Driver” button.
