SWEEX LW057V2 Installation Manual

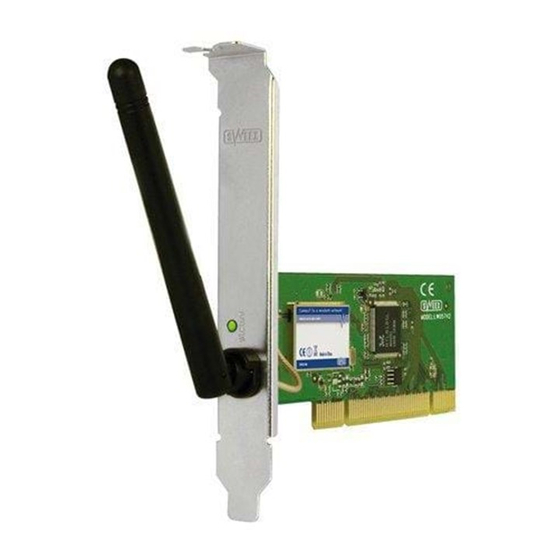

Wireless lan pci card 54 mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English version
Introduction
• Do not expose the Wireless LAN PCI Card 54 Mbps to extreme temperatures. Do not place the device in direct sun light or close
to heating elements.
• Do not use the Wireless LAN PCI Card 54 Mbps in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.
• Never try to open the device yourself, this voids the warranty.

Hardware Installation

1. Make sure the computer is turned off and that there is no power connected.
2. Also remove the printer and monitor cable, because these have their own power supply.
3. Now unscrew the computer casing.
4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or
an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid
direct contact with the contact points of the PCI slot and contact points on the graphics card.
5. Locate a free PCI slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the
manual of your computer to find the PCI slot.
6. When possible fasten the card with screws so it can not move.
7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen
that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not
work.
8. Close the computer casing and reconnect all cables properly.
9. Turn on the computer.
Installation Windows XP
After starting the computer this window will appear.
LW057V2 Sweex Wireless LAN PCI Card 54 Mbps
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LW057V2 and is the answer not in the manual?

Questions and answers

Related Manuals for SWEEX LW057V2

Summary of Contents for SWEEX LW057V2

  • Page 1: Hardware Installation

    7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
  • Page 2 English version Choose “No not this time” and click “Next”. Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers. If windows can not find the drivers, choose “Install from a list or specific location” in the above window.

  • Page 3: Installation Windows Vista

    English version It is possible that Windows notifies you that the driver is not certified. This is not a problem for correctly functioning of the Sweex Wireless LAN PCI Card 54 Mbps. All Sweex products and relevant drivers are tested thoroughly. Choose the option “Continue Anyway”.

  • Page 4: Setting Up The Wireless Network

    Navigate to the Sweex CD-ROM to find the drivers. It is possible that Windows notifies you that the driver is not certified. This is not a problem for correctly functioning of the Sweex Wireless LAN PCI Card 54 Mbps. All Sweex products and relevant drivers are tested thoroughly. Choose the option “Install this driver software anyway”.

  • Page 5: Windows Xp

    This code is also called the network key. Enter this code on every computer that wants to connect to the secured network. Only with this key you can be part of the network. If you did not enter the network key yourself in the router or modem, ask the installer, manufacturer, supplier or provider for this code.
  • Page 6 “BLASTER” does have security. To connect your computer to it you need a security code. When you do not get a list, but a message that no wireless networks can be found, check if the wireless router, modem or access point are turned on and that the distance to the wireless computer is not to far.

  • Page 7: Windows Vista

    Select “View network status and tasks”. In the left column select “Manage network connections”. Right click “Wireless Network connection” and choose “Connect/ Disconnect”. Select your network and click “Connect”. When asked enter your security code to connect. You are now connected to your network.
  • Page 8 Click the “Support” tab to view your IP-address. In most cases you will receive an IP-address from the wireless router or modem when the connection has been established correctly. If it is needed to enter the IP-address settings or to change them, go back to...
  • Page 9 If you can not select “Status”, no connection has been made. In this case choose “Connect / Disconnect”. See chapter “Connecting the computer to the wireless network“. Configuring IP-address in Vista If it is needed to enter the IP-address settings or to change them, go back to the “General” tab and click the “Properties” button.

  • Page 10: Warranty

    English version Select “Internet Protocol Version 4 (TCP/IPv4)” and select “Properties”. Select that you want to obtain an IP-address automatically or enter the IP-address you want to use. Click “OK” to store the settings. Warranty For most Sweex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweex offers 2 years of warranty.
