SWEEX PU012 - QUICK_START_GUIDE Introduction Manual

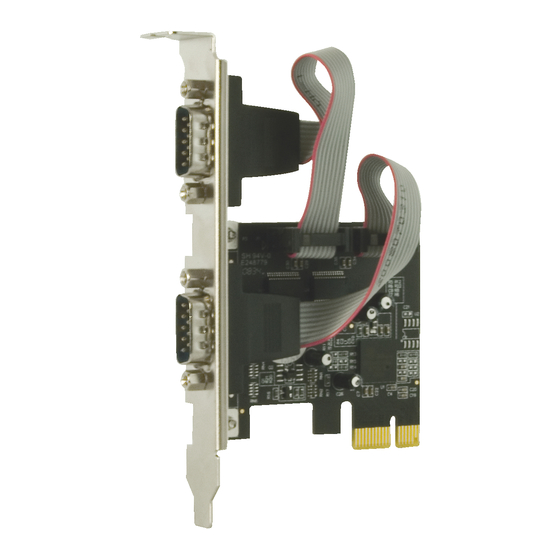

2 port serial pci express card
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

English version
Introduction
• Do not expose the PU012 to extreme temperatures. Do not place the device in direct sun light or close to heating elements.
• Do not use the PU012 in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.

Hardware Installation

1. Make sure the computer is turned off and that there is no power connected.
2. Also remove the printer and monitor cable, because these have their own power supply.
3. Now unscrew the computer casing.
4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or
an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid
direct contact with the contact points of the PCIe slot and contact points on the graphics card.
5. Locate a free PCIe slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the
manual of your computer to find the PCIe slot.
6. When possible fasten the card with screws so it can not move.
7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen
that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not
work.
8. Close the computer casing and reconnect all cables properly.
9. Turn on the computer.
PU012 Sweex 2 Port Serial PCI Express Card
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU012 - QUICK_START_GUIDE and is the answer not in the manual?

Questions and answers

Related Manuals for SWEEX PU012 - QUICK_START_GUIDE

Summary of Contents for SWEEX PU012 - QUICK_START_GUIDE

  • Page 1: Hardware Installation

    7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
  • Page 2 After starting the computer this window will appear. Choose “No not this time” and click “Next”. Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.
  • Page 3 English version It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option “Continue Anyway”.
  • Page 4 English version Click “Locate and install driver software”. Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers. When windows can not find the drivers, choose “I don’t have a disc. Show me other options.” in the above window.
  • Page 5 English version It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option “Install this driver software anyway”.
  • Page 6 English version Here you can view or change your COM port. Be aware that you do not choose a port that is already being used by the computer. This can result in a conflict. Warranty For most Sweex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweex offers 2 years of warranty.
