SWEEX PU006V2 - QUICK_START_GUIDE Manual

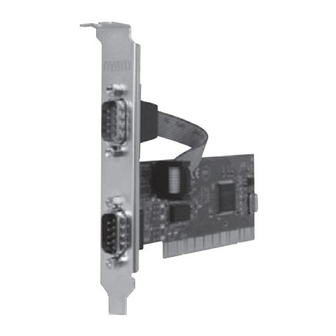

2 port serial pci card

English version

Introduction

• Do not expose the PU006V2 to extreme temperatures. Do not place the device in direct sun light or close to heating elements.

• Do not use the PU006V2 in extremely dusty or moist environments.

• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.

1. Make sure the computer is turned off and that there is no power connected.

2. Also remove the printer and monitor cable, because these have their own power supply.

3. Now unscrew the computer casing.

4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or

an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid

direct contact with the contact points of the PCI slot and contact points on the graphics card.

5. Locate a free PCI slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the

manual of your computer to find the PCI slot.

6. When possible fasten the card with screws so it can not move.

7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen

that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not

work.

8. Close the computer casing and reconnect all cables properly.

9. Turn on the computer.

After detection of the hardware, Windows shows the following screen;

PU006V2 Sweex 2 Port Serial PCI Card

Table of Contents

Do you have a question about the PU006V2 - QUICK_START_GUIDE and is the answer not in the manual?

Page 1 7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
Page 2 Click “Install” to start the installation. It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option “Continue Anyway”.
Page 3 English version Choose the option “No, not this time” and Press “Next”. Choose “Install the software automatically” and click “Next”. Follow the remaining instructions to complete the installation. It is possible that you have to accept the last window twice.
Page 4 Select the tab “Port settings” and click “Advanced…”. Here you can view or change your COM port. Be aware that you do not choose a port that is already being used by the computer. This can result in a conflict.
Page 5 Warranty For most Sweex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweex offers 2 years of warranty. We do not give support or warranty on supplied software, rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.
