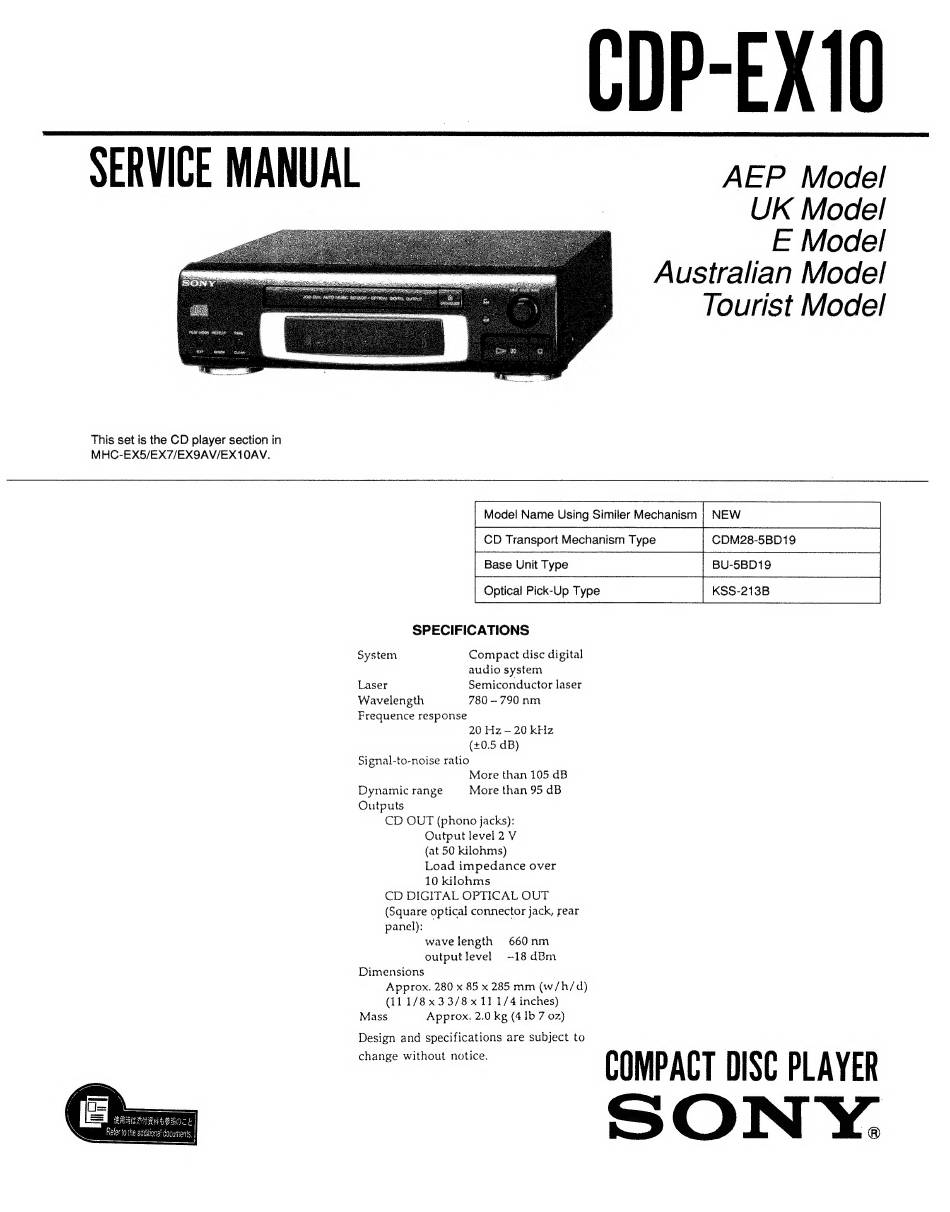

Sony CDP-EX10 Service Manual

CDP-EX10
SERVICE MANUAL AEP Model
UK Model
E Model
Australian Model
Tourist Model
This set is the CD player section in
MHC-EX5/EX7/EX9AV/EX10AV.
Model Name Using Similer Mechanism
CD Transport Mechanism Type
Optical Pick-Up Type |
SPECIFICATIONS
System Compact disc digital
audio system
Laser Semiconductor laser
Wavelength 780 —790 nm
Frequence response
20 Hz - 20 kHz
(+0.5 dB)
Signal-to-noise ratio
More than 105 dB
Dynamic range More than 95 dB
Outputs
CD OUT (phono jacks):
Output level 2 V
(at 50 kilohms)
Load impedance over
10 kilohms
CD DIGITAL OPTICAL OUT
(Square optical connector jack, rear
panel): —
wave length 660nm
outputlevel -18dBm
Dimensions
Approx. 280 x 85 x 285 mm (w/h/d)
(11 1/8x 33/8 x 11 1/4 inches)
Mass Approx. 2.0 kg (4 lb 7 oz)
Design and specifications are subject to
