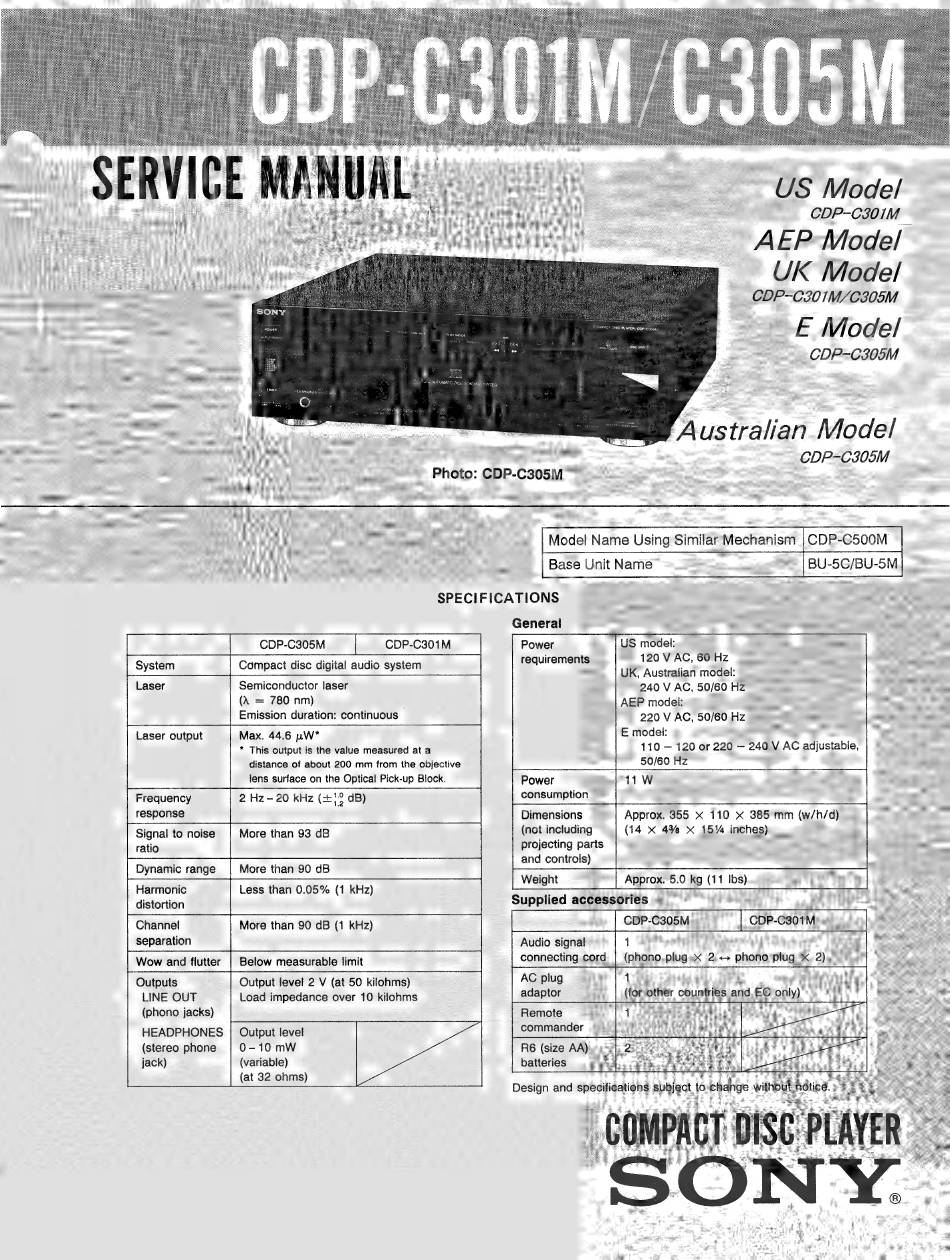

Sony CDP-C301M Service Manual

у
SERVICE MANUAL
US Model
CDP-C301M
AEP Model
UK Model
=o CDP-C301M/C305M
ана
|
E Model
; CDP-C305M
PPE"
Australian Model
CDP-C305M
Photo: CDP-C305M
Model Name Using Similar Mechanism | CDP-C500M
SPECIFICATIONS
| | CDP-O305M CDP-C301M
Compact disc digital audio system
Laser Semiconductor laser
(A = 780 nm)
Laser output
Emission duration: continuous -
Frequency
Max. 44.6 uW*
response
* This output is the value measured at a
distance of about 200 mm from the objective
lens surface on the Optical Pick-up Block.
2 Hz - 20 kHz (+? dB)
7742
Signal to noise
More than 93 dB
ratio
Harmonic Less than 0.05% (1 kHz)
distortion
Channel
separation
Wow and flutter | Below measurable limit
Outputs Output level 2 V (at 50 kilohms)
LINE OUT Load impedance over 10 kilohms
(phono jacks)
HEADPHONES | Output level
(stereo phone 0-10 mW
jack) (variable)
(at 32 ohms)
More than 90 dB (1 kHz)
General
Power US model:
requirements 120 V AC, 60 Hz
UK, Australian model:
240 V AC, 50/60 Hz
AEP model:
220 V AC, 50/60 Hz
E model:
110 — 120 or 220 — 240 V AC adjustable,
50/60 Hz
Power
consumption
Dimensions Approx. 355 x 110 x 385 mm (w/h/d)
(not including (14 x 4Ys x 15% inches)
projecting parts
and controls)
Weight Approx. 5.0 kg (11 Ibs)
Supplied accessories
||| CDP-C308M CDP-C301M
(phono plug x 2 «> phono plug x 2)
Audio signal 1
1
connecting cord
(for other countries and EC only)
AC plug
adaptor
Remote
commander
R6 (size AA)
batteries
Design and specifications subject to change without notice.
COMPACT DISC PLAYER
SONY.
