Summary of Contents for Sena 50S-10

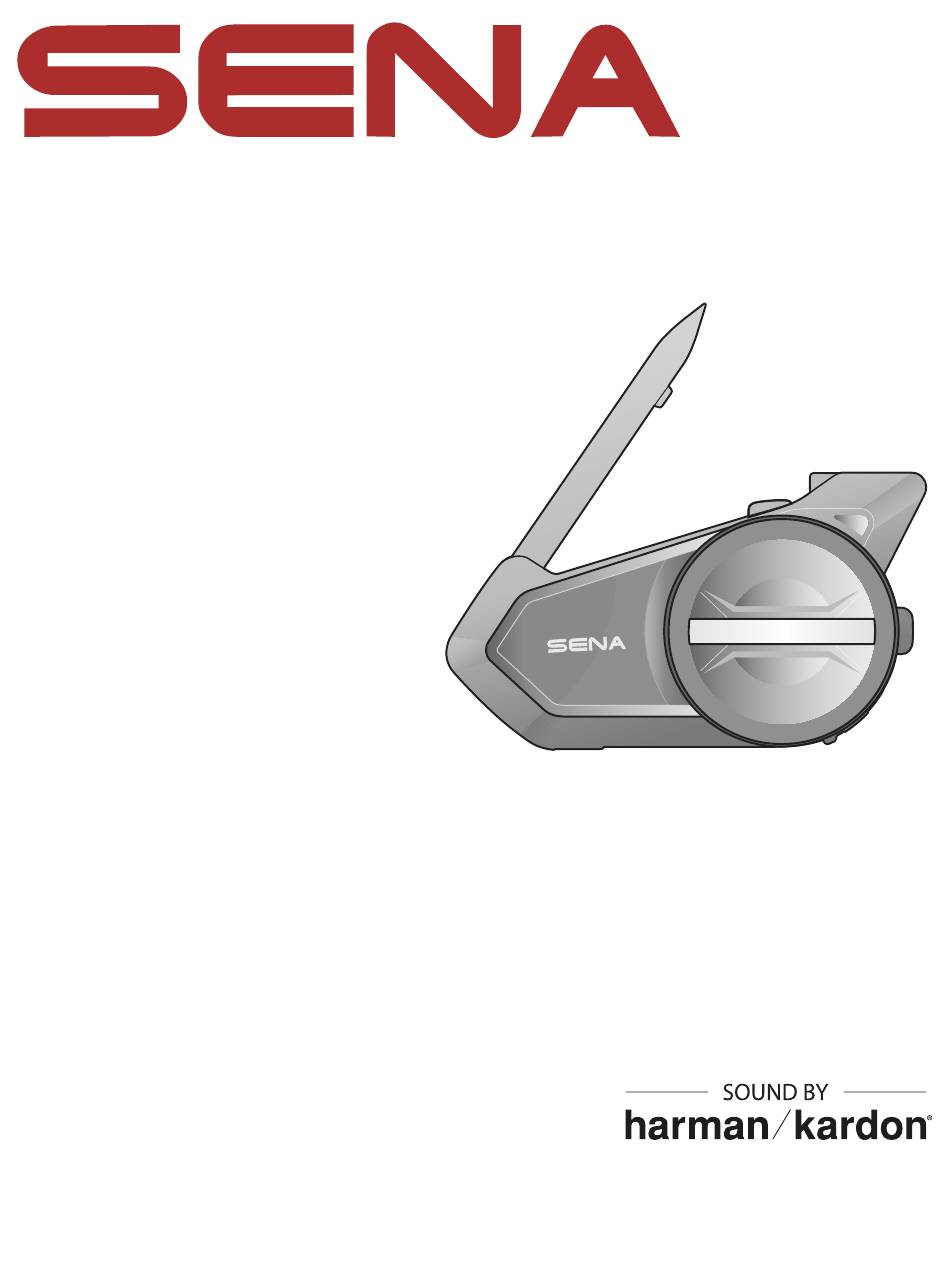

- Page 1 MOTORCYCLE BLUETOOTH ® COMMUNICATION SYSTEM WITH MESH INTERCOM™ QUICK START GUIDE ENGLISH / 2.3.0...
- Page 2 RIDE CONNECTED The 50S takes a trusted design and makes major upgrades in both hardware and software. With Mesh Intercom™ technology, it’s time for an all-new experience of riding connected. Bluetooth ® Multi-Way Intercom Mesh Intercom™ up to 2 km (1.2 mi)* Intercom up to 2 km (1.2 mi)* Audio Multitasking™...
-
Page 3: Getting Started
ROTATE counterclockwise (left). Rotate while Pressing Jog Dial clockwise (right) or ROTATE ROTATE ROTATE counterclockwise (left). Audible prompt “Hello” Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips. Sena Technologies Co., Ltd. sena.com... -
Page 4: How To Use This Guide
GETTING STARTED How to Use This Guide The legend and callouts are here to help you read the illustrations. New technology can be confusing, but we’ve created a simple way to perform actions using illustrations. HOLD Function Button(s) to Tap or Hold Buttons Mesh Intercom Button Phone Button... -
Page 5: Product Details
QUICK START GUIDE Product Details Mesh Intercom Button Status LED Mesh Intercom Antenna Bluetooth Antenna Phone Button Jog Dial Ambient Mode Button DC Power Charging & Firmware Upgrade Port... -
Page 6: Installation
QUICK START GUIDE Installation Mesh Intercom Antenna Pull the Mesh Intercom Antenna outwards slightly to unfold it. -
Page 7: Downloadable Sena Software
QUICK START GUIDE Downloadable Sena Software Download the Sena Motorcycles App at Google Play Store Store. Sena Motorcycles • Device configuration setting Download the following items at sena.com. Sena Device Manager • Firmware upgrade • Device configuration setting Quick Start Guide, User’s Guide... -
Page 8: Basic Operations
QUICK START GUIDE Basic Operations Powering On Powering Off HOLD Volume Up Volume Down ROTATE ROTATE Checking the Battery Level Instructions are for when powering the headset on. Visual Method HOLD... -
Page 9: Phone Pairing
QUICK START GUIDE Phone Pairing HOLD Blinking “Phone pairing” 2. Select 50S in the list of Bluetooth devices detected. Bluetooth Device B • The headset will enter the Phone Pairing mode automatically when you initially turn on the headset. • For more information on phone pairing, refer to the User’s Guide. -
Page 10: Mobile Phone
QUICK START GUIDE Mobile Phone Answer a Call End a Call HOLD Reject a call HOLD Siri and Google Assistant Activate the Siri or Google Assistant Installed on Your Smartphone “Hey Google” or “Hey Siri”... -
Page 11: Music Controls
QUICK START GUIDE Music Controls Play/Pause Track forward HOLD ROTATE “[Beep, Beep]” Track backward ROTATE Mesh Intercom™ When Mesh Intercom is enabled, the 50S will automatically connect to nearby 50S users and allow them to talk to each other. Mesh Intercom On Mesh Intercom Off “Mesh intercom on”... - Page 12 QUICK START GUIDE Open Mesh™ When Mesh Intercom is enabled, the headset will be in Open Mesh (default: channel 1) initially. Users can freely communicate with each other in the same Open Mesh channel. Channel Setting (Default: channel 1) If the Open Mesh communication experiences interference because other groups are also using channel 1 (default), change the channel.
- Page 13 QUICK START GUIDE Enter into the Channel Setting “Channel setting, 1” Navigate between Channels ••• Exit •••) ROTATE ROTATE “#” Save the Channel “Channel is set, channel #” Note: To exit the Channel Setting, rotate the Jog Dial clockwise or counterclockwise until you hear a voice prompt, “Exit”, and tap the Jog Dial.
- Page 14 QUICK START GUIDE Group Mesh™ Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. Up to 24 users can all be connected in each private group.
- Page 15 QUICK START GUIDE 2. The headsets complete Mesh Grouping and automatically switch from Open Mesh to Group Mesh. “Group Mesh” Open Mesh Group Mesh Joining an Existing Group Mesh One of the members in an Existing Group Mesh can allow new members in Open Mesh to join the Existing Group Mesh.
- Page 16 QUICK START GUIDE 1. One of the current members and a new member enter into Mesh Grouping to join the Existing Group Mesh. (NEW MEMBER) HOLD CURRENT MEMBER IN GROUP MESH “Mesh grouping” 2. The headsets complete Mesh Grouping. The new members will hear a voice prompt as their headsets automatically switch from Open Mesh to Group Mesh.
- Page 17 Button or the Sena Motorcycles App. [Caller] [Caller] “Mesh reach-out request” [Nearby Friends] “Mesh intercom requested” 3. Friends who receive the request message need to manually turn on their Mesh Intercom using the headset’s Button or the Sena Motorcycles App.
-
Page 18: Bluetooth Intercom
QUICK START GUIDE Reset Mesh If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1). HOLD Bluetooth Intercom Up to three other people can be paired with the headset for Bluetooth intercom conversations. - Page 19 Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the Sena Motorcycles App without remembering the button operation. 1. Pair the mobile phone with the headset.
- Page 20 QUICK START GUIDE Using the Button HOLD “Intercom pairing” The 50S will automatically pair with a Sena headset. Flashing blue LED confirms intercoms are paired. STATUS Note: Repeat the step above to pair with Intercom Friends C & D.
-
Page 21: Two-Way Intercom
QUICK START GUIDE Two-Way Intercom Last-Come, First-Served Start/End with Intercom Friend 1 Intercom Friend 1 Start/End with Intercom Friend 2 Intercom Intercom Friend 1 Friend 2 Intercom Intercom Intercom Friend 1 Friend 2 Friend 3 Start/End with Intercom Friend 3... -
Page 22: Ambient Mode
QUICK START GUIDE Ambient Mode FM Radio FM Radio Off FM Radio On HOLD HOLD Seek Stations Scan Stations ROTATE ROTATE Navigating Preset Stations... -
Page 23: Configuration Menu
QUICK START GUIDE Configuration Menu Accessing the Headset Navigating Between Configuration Menu Menu Options HOLD ROTATE “[Menu prompt]” “Configuration menu” ROTATE Execute Menu Options “[Menu prompt]” Troubleshooting Factory Reset Fault Reset HOLD Note: Fault Reset will not restore the headset to factory default settings. -
Page 24: Quick Reference
QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Power on/ Power off ROTATE ROTATE Basic Volume up/Volume down Operations Ambient Mode Answer phone call End phone call HOLD Mobile Reject phone call Phone Speed dial Activate the Siri or Google Assistant Siri and Google Assistant... - Page 25 QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Play/Pause music ROTATE Track forward Music ROTATE Track backward HOLD FM radio on/off Select preset Seek forward/ ROTATE ROTATE FM Radio backward Scan up FM band/ stop scanning...
- Page 26 QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS Mesh Intercom on/off Channel setting HOLD Mesh Grouping Mesh HOLD Intercom™ Enable/Disable Mic Mesh Reach-Out Request HOLD Reset Mesh HOLD Intercom pairing Start/End intercom Intercom 2.3.0_EN_July2023...
