English version
English version
Introduction
First of all, many thanks for purchasing this Sweex LAN PCI Card Gigabit. With this card you can use a quick Internet connection and super fast
network connections effortlessly.
To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during
installation or operation of this product, go to www.sweex.com and look under the heading service & support.
Contents of the box
Prior to installation, check if all required parts are present. The following parts must be present in the box:
• LAN PCI card gigabit
• CD-ROM with manual
If one of the above parts is missing, please contact the shop or supplier.
Specifications
• Single-chip controller for PCI local bus revision 2.2
• Supports: 802.3 10BASE-T and IEEE802.3u 100 BASE-TX standard
• Maximum data transfer speed: 1000 Mbps
• Supports: IEEE 802.1P and 802.1Q
• Auto-Negotiation and Full Duplex Flow Control (IEEE802.3x)
• Chipset: Realtek RTL8169
• Connector: 1 x UTP RJ-45 with auto-MDI/MDI-X
• Supports: ACPI and PCI power management
• 4 diagnosis LEDs for link status and data transfer
• Supports: Windows 98SE, 2000 and XP

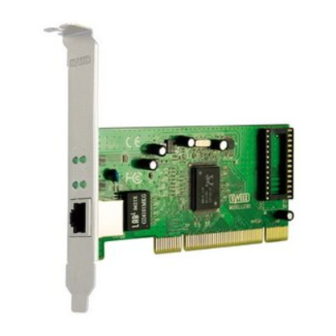

LC101 Sweex LAN PCI Card Gigabit
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SWEEX LC101
Summary of Contents for SWEEX LC101
- Page 1 LC101 Sweex LAN PCI Card Gigabit Introduction First of all, many thanks for purchasing this Sweex LAN PCI Card Gigabit. With this card you can use a quick Internet connection and super fast network connections effortlessly. To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during installation or operation of this product, go to www.sweex.com and look under the heading service &...
- Page 2 5. Find a vacant PCI slot and remove the metal guard plate part of the computer casing in front of the relevant slot. On occasion the card does not allow for it to be inserted in the PCI slot smoothly. Should this be the case, do not force anything, but try another available slot.
- Page 3 Select the option “Search for the best driver” and click “Next”. Tick the last option: “Specify a location”. Insert the Sweex CD-ROM in the CD-ROM player. Go to the Sweex CD-ROM via “Browse”, and select the folder “Drivers”. In this folder, select the relevant operating system; win98. Then click “Next”.
- Page 4 English version Installation under Windows 2000 and XP We advise you to ensure the operating system is up-to-date before starting the installation. This can be easily checked by starting up Internet Explorer and selecting the option “Windows Update” in the “Extra” menu. Once the hardware has been detected, Windows shows the following screen: Select “No, not this time”...
- Page 5 English version Windows may note that the driver is not certified. This will not affect the correct functioning of the PCI card. All Sweex products and corresponding drivers are tested extensively. Here select the option “Continue Anyway”. Finally click “Finish”. Now the hardware has been installed successfully.
