SWEEX LC001 Quick Installation Manual

English version

Introduction

First of all, many thanks for purchasing this Sweex LAN PCI Card. To ensure this product operates correctly, we advise you to carefully read this

manual first. If despite this manual you still experience problems during installation or operation of this product, go to www.sweex.com and look

under the heading service & support.

We advise you to ensure that the PC operating system is up-to-date before starting the installation. This is easy to check by starting up "Internet

Explorer" and selecting the option "Windows Update" in the "Extra" menu. This Sweex LAN PCI Card is fully supported by Windows Microsoft®,

Windows® XP, Windows Vista®, Windows® 7.

Prior to installation, check if all required parts are present. The following parts must be present in the box:

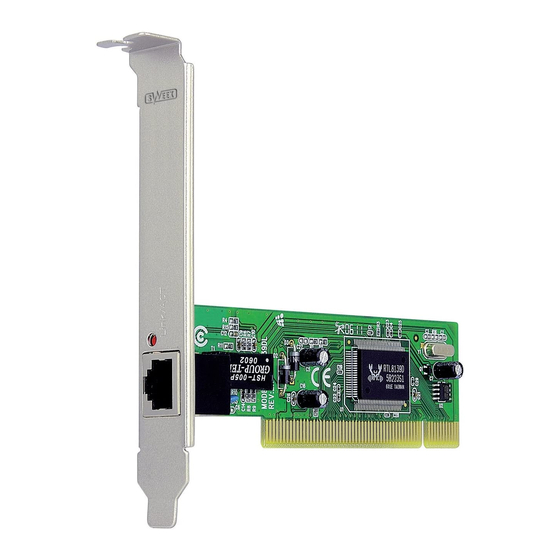

• 10/100 Network card PCI

• Quick installation guide

• CD with software, drivers, manual

If one of the above parts is missing, please contact the supplier.

• Single-chip controller for PCI local bus revision 2.2

• Supports: 'Wake On LAN'(WOL) at PCI revision 2.2

• In accordance with 802.3 10BASE-T and IEEE802.3u 100 BASE-TX standard

• Realtek 8139 chipset

• Single shielded RJ-45 connector for use at 10 or 100 Mbps

• High performance bus master structure for low CPU and bus usage

• Supports: ACPI and PCI power management

• 1 diagnosis LED for link status and data transfer

• Supports: Windows Microsoft®, Windows® XP, Windows Vista®, Windows® 7
