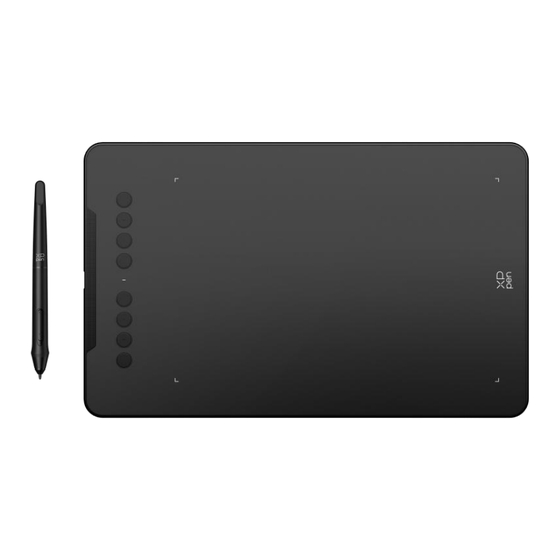

XP-PEN Deco 01 Manual

Drawing tablet
Hide thumbs Also See for Deco 01:
Table of Contents

Advertisement

Quick Links

Download this manual
Deco 01/Deco mini7 Drawing Tablet
Contents
1. Introduction ................................................................................................................................... 2
1.1 Product Overview .............................................................................................................. 3
1.2 Included with your product ...............................................................................................3
2. Connection ....................................................................................................................................4
2.1 Connect to computer ........................................................................................................ 4
2.2 Connect to Android Phone or Tablet ............................................................................. 4
3. Compatibility ................................................................................................................................. 4
4. Product Settings ...........................................................................................................................5
4.1 Driver Installation ...............................................................................................................5
4.2 Introduction to Driver ........................................................................................................ 7
4.3 Device Settings ..................................................................................................................8
4.3.1 Work Area ................................................................................................................8
4.3.2 Shortcut Key ......................................................................................................... 11
4.4 Application ........................................................................................................................ 13
4.5 Pen Settings ..................................................................................................................... 15
4.6 Driver Settings ................................................................................................................. 17
4.7Driver Uninstallation .........................................................................................................17
5. FAQs ............................................................................................................................................ 18
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Deco 01 and is the answer not in the manual?

Questions and answers

Related Manuals for XP-PEN Deco 01

Summary of Contents for XP-PEN Deco 01

  • Page 1: Table Of Contents

    Deco 01/Deco mini7 Drawing Tablet Contents 1. Introduction ........................... 2 1.1 Product Overview ......................3 1.2 Included with your product ....................3 2. Connection ............................4 2.1 Connect to computer ......................4 2.2 Connect to Android Phone or Tablet ................4 3. Compatibility ..........................4 4.

  • Page 2: Introduction

    1. Introduction Thank you for choosing XPPen Deco 01/Deco mini7 Drawing Tablet. This user manual is specially designed to detail the product’s functions and features. Please read this manual before using the product to ensure safe and proper use. Due to the latest product improvements, content may differ from the final product and is subject to change without prior notice.

  • Page 3: Product Overview

    Off:the stylus is beyond the active area. 3、USB-C port 4、Active area 1.2 Included with your product 1 x Stylus 1 x Stylus Stand（Only Deco 01） 1 x Glove（Only Deco 01） 1 x USB-C to USB-A Cable 1 x Protective Film（Only Deco 01） 8 x Nibs 1 x USB to USB-C Adapter * The list is for illustrative purposes only.

  • Page 4: Connection

    The product is set to full area mapping by default. You can download the XPPen tools app to adapt to your screen ratio, ensuring precise mapping: Go to the official website (https://www.xp-pen.com) to download the XPPen tools app  and install it on your android device;...

  • Page 5: Product Settings

    To ensure the device works properly, please install the driver before using. Please download the driver suitable for your product model from XPPen website (https://www.xp-pen.com). Notes: 1. Before installing the driver, please turn off all antivirus software and graphics software.
  • Page 6 If there is no PenTablet_Driver on the list, go to resource Library -> Application Support -> PenDriver to add the driver manually. Linux: Deb: Enter command “sudo dpkg -i”. Drag the installation file to the window and execute the command; Rpm: Enter command “sudo rpm -i”.

  • Page 7: Introduction To Driver

    4.2 Introduction to Driver The driver will run automatically after being installed. If it does not run automatically, please run it manually. If the device is not connected or the connection fails, you can see the following prompt. In this case, try to restart your computer or the driver, or contact our service staff for support. If the device is connected to your computer successfully, the device name will be displayed in the upper left corner of the driver.

  • Page 8: Device Settings

    specific device's settings after switching to that device, and all changes made will only apply to that device. 4.3 Device Settings 4.3.1 Work Area Go to Work Area and define the mapping between the device's work area and the screen display area.
  • Page 9 Drag to select an area: Drag the cursor from one point to another on the Screen.  Click to set screen area: Click the upper left corner position and lower right corner  position to select on the monitor.  Coordinates: Manually enter coordinates in the corresponding input boxes for X, Y, W and H.
  • Page 10 The driver enables the following ways to set the work area of the device: Full area: The whole work area of the device is available. Customize active area: Three ways. Drag to select an area: Drag the cursor from one point to another on the device. ...

  • Page 11: Shortcut Key

    appear on the screen, but some part of the work area may not be used. But if you don’t choose the proportion and draw a circle, then the circle may change into an ellipse on the screen. Rotation: You can set the device to 0°, 90°, 180° and 270° clockwise for use. Left-handed mode: Rotate 180°.
  • Page 12 You can set keyboard shortcut, for example, set it as “Alt+A” in 3D MAX, so the alignment tool can be used. Multiple groups of shortcut keys can be set. For example, type Ctrl+C, Ctrl+V, and when you press the key, the shortcut key functions set will all run once. Windows (Command): You can add a combination key containing system key, for example: to enter Win(Cmd)+Shift+3, you can press Shift+3 and the driver will bring the system key automatically.

  • Page 13: Application

    Set the key combination of mouse and keyboard. With the "Shift" and "Left Click" selected, the shortcut actions can be enabled in application that supports such key combinations. Other-Precision mode: Limit the device’s work area to a certain area. This function may allow you to create more detailed drawings.
  • Page 14 Add an application from the list of applications, tick the application, and then customize pen keys functions. For example, if you select an application and change its configuration, the change is valid only when you use the application. When you switch to another application, the driver will recognize it automatically.

  • Page 15: Pen Settings

    4.5 Pen Settings When the stylus is within the work area, the device will recognize the stylus and add it to the driver. The stylus used should be compatible with the device. Pen keys The setting or usage method is the same as the shortcut keys, see 4.3.2.
  • Page 16 Pressure By adjusting the pressure curve or selecting preset pressure options. Current pressure: Test the current pressure sensitivity level of your stylus. Pressure: When turned off, the pressure sensitivity of the stylus will be disabled. Tilt: When turned off, the tilt functionality of the stylus will be disabled. Mouse mode: When you move your pen out of the work area, the cursor will stay where you leave, which is like operating a mouse.

  • Page 17: Driver Settings

    4.6 Driver Settings Import & Export config: You can import/export configurations to read or save their settings. This function is available for only the same operating system. Diagnostic tool: You can use the diagnostic tool in case of any problems while using the driver. Feedback: If you have any questions or suggestions during the use of the driver, you can give us feedback through this page.

  • Page 18: Faqs

    FAQs posted on the official website of the drawing software. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. If you need any further assistance, please contact us at: Website : www.xp-pen.com Email: service@xp-pen.com...

This manual is also suitable for:

Deco mini7
