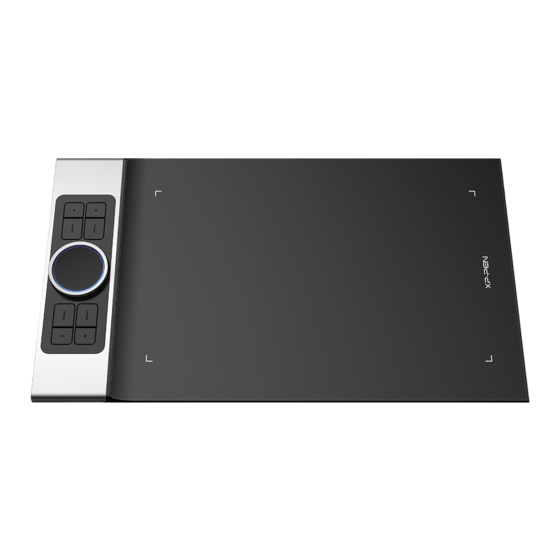

- Page 1 User Manual Deco Pro Small & Medium...
- Page 2 ℃ ℃ １...
-
Page 3: Table Of Contents
Contents I.Product Overview Overview II.Driver Installation Windows III.Driver Settings UI Windows IV.Driver Uninstall Windows V.FAQ ２... -
Page 4: I.product Overview
Thank you for purchasing the XP-Pen tablet. Our product user manual currently supports English, Russian, Japanese, German, Korean, Chinese, Italian, Spanish, and French. We apologize if your preferred language is not supported. { I. Product Overview} Overview Image 1-1. Overview 1.Working area... -
Page 5: Mac
If the icon is not present, uninstall the driver, reboot, and repeat step 2. (1) Connect the Deco Pro Small & Medium to your computer using the included USB cable. (2) Please download the Deco Pro Small & Medium latest driver from the support section of our website, (www.xp-pen.com) (3) Extract the “.zip”... - Page 6 { III. Driver Settings UI } Windows The Deco Pro Small & Medium’s driver settings can be opened in two ways:Double-click the driver’s icon ) in system tray or your desktop. Driver UI Image 3-1. UI 1.1.Pen Function Settings You may customize the functions of your tablet pen’s barrel buttons here. Use the “Function Key”...
- Page 7 0、90、180 & 270 angles: The Deco Pro Small & Medium are set up for 0, 90, 180 and 270 angles and when you set it, you must also rotate your Deco Pro Small & Medium. Left hand is 180 angles.
- Page 8 Display Ratio: You can set your Deco Pro Small & Medium work area adjusts the tablet’s on-screen working area to match your monitor’s resolution. Max Active Area: You can set your Deco Pro Small & Medium work area to the max.
- Page 9 Image 3-6. Export Profile Image 3-7. Import Profile 1.6.Windows Ink This capability can be toggled on and off here. Enabling this will allow support for Windows Ink and applications that run using Windows Ink. Image 3-8: Windows Ink ８...
- Page 10 Hide hints: When you enable it and press any express key, the message will not popup on the bottom of your screen. Image 3-10. Keys In this tab, you may edit the functions of the Deco Pro Small & Medium’s shortcut keys. Use the “Definition” option to program custom keystrokes. ９...
- Page 11 Image 3-11: Function Key Note: You can set each shortcut key for different software. a. Click the “+” button to go to Select Program ta Image 3-12: Select Program １０...
- Page 12 b. You can choose Default or use Browse to select your choice of software. Image 3-13: Select Program c. Return to the shortcut key settings tab, click the tablet icon, and then customize the shortcut keys. When you are finished, click “OK” and exit the tablet settings menu. You can set each dial for different software.
- Page 13 b. Set each dial function to “Function key”. c. On the setting tab, you can customize “KL” and “KR” to different shortcuts like Ctrl+ & Ctrl-. Image 3-15: Setting Dial 2: You can set the Dial2 function to Mouse, Roller or Customized. Image 3-16: Dial2 １２...
-
Page 14: Mac
You can click the Default button to restore default settings. 1.9. XP-Pen Logo Click our logo to visit our website. To open the Deco Pro Small & Medium’s driver settings, open Finder > Applications > PenTabletSetting. Driver UI Image 3-18. Tablet Setting... - Page 15 1.Pen Image 3-19.Pen In this tab, you may customize the functions of your stylus’s barrel buttons and click “Default Button Setting” to revert to manufacturer settings. Image 3-20. Pen Note: Pen/Eraser Toggle With the stylus in range working area, press the assigned barrel button to toggle between pen and eraser modes in compatible drawing software.
- Page 16 1.3. Work Area Orientation: Right Hand, Left Hand, 90 & 270: The Deco Pro Small & Medium can also be configured for Right Hand, Left Hand, 90 & 270 angles. Be sure to rotate the actual physical tablet as well.
- Page 17 Image 3-26: Import configuration file 2. Monitor The “Monitor” tab allows you to configure Deco Pro Small & Medium for use with single or dual monitors. The tablet can also be configured to use only a portion of your display.
- Page 18 Image 3-27. Monitor 3.Tablet Area You may adjust your tablet’s on-screen working area in this tab. 3.1. Full Area automatically selects the largest possible working area. 3.2. Screen Ratio adjusts the tablet’s on-screen working area to match your monitor’s resolution. 3.3.
- Page 19 4. Express Keys Notes: (a). The Deco Pro Small & Medium’s shortcut keys are designed to work with US English keyboards. Keys may not function correctly with the other keyboard languages. (b). By default, the Deco Pro Small & Medium’s express keys are mapped to standard Photoshop keyboard shortcuts.
- Page 20 Image 3-31. Select Program b. Your choice of software. Image 3-32. Select Program c. Return to the shortcut key settings tab, click the tablet icon then customize the shortcut keys. When you are finished, click the OK button and exit the tablet settings menu. １９...
- Page 21 Image 3-33. Hot Key Image 3-34. Action Setting You can set each dial for different software. a. First click the software icon and then go to the Dial tab. ２０...
- Page 22 Image 3-35. Slider b. Click each dial function. c. On the setting tab, you can customize “Left HotKey” and “Right HotKey” to different shortcuts like Ctrl+ & Ctrl-. Image 3-36. Slider Setting ２１...
-
Page 23: Mac
Open [Finder]→ [Application]→ [Pen Tablet], then click “Uninstall Pen Tablet” and follow the on-screen instructions. Image 5-1: Mac uninstall Note: When attempting to reinstall the Deco Pro Small & Medium driver, be sure to reboot your computer after the uninstall is complete. ２２... - Page 24 1. I can’t use the stylus to control the cursor. Uninstall the Deco Pro Small & Medium driver. If its uninstaller will not run, run the driver’s installer again, then allow it to uninstall the driver. Reboot, then connect the tablet to your computer and test your stylus.
