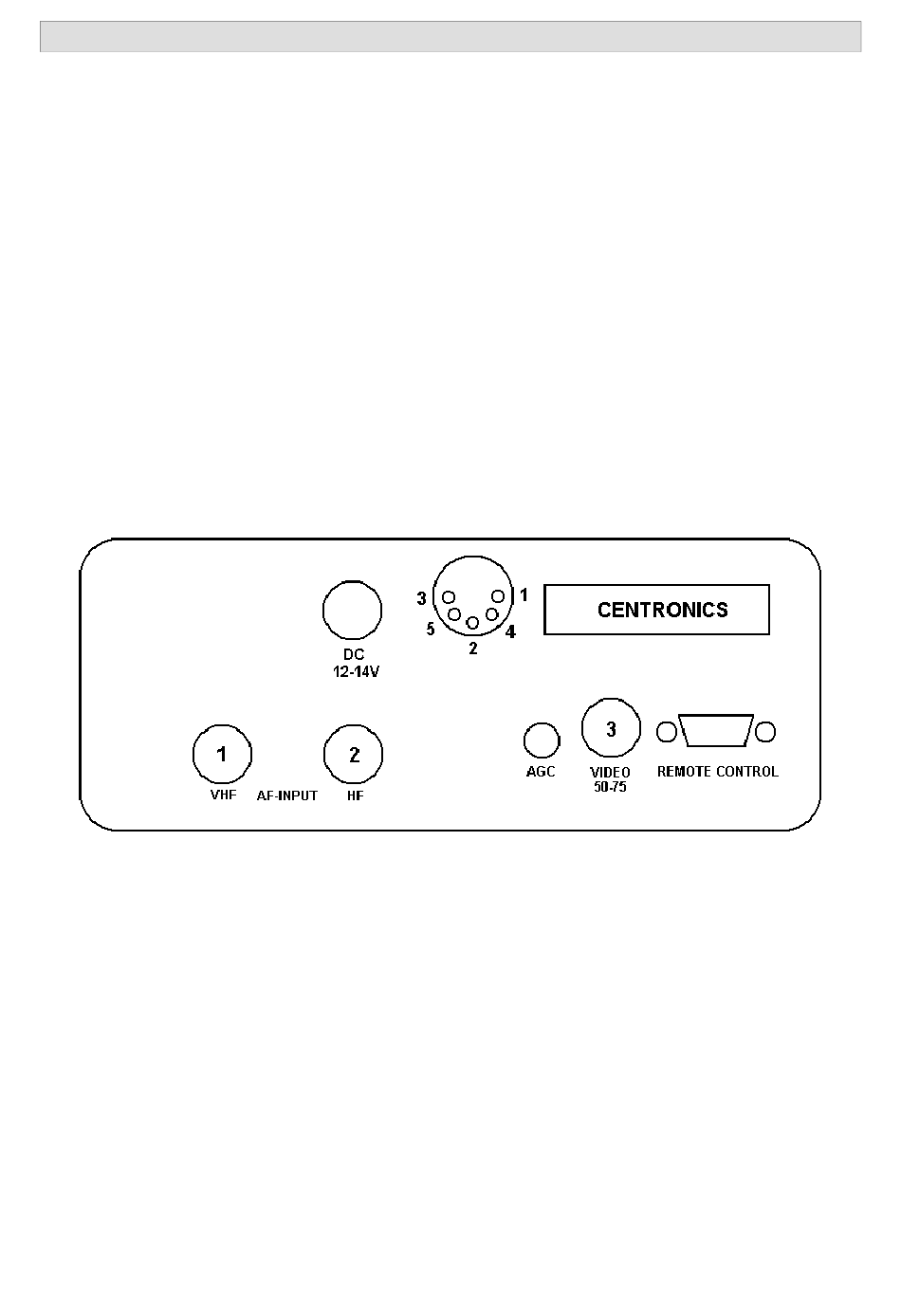

6.2 ILLUSTRATION OF THE CONNECTOR PLACEMENT

COAXIAL LOW-VOLTAGE INPUT
Inner conductor: positive 12 to 14 Volts
Outer conductor: Ground (or negative polarity)
5-POLE DIN JACK
Pin 1 = serial TTL demodulator output
Pin 2 = ground
Pin 3 = serial RS-232/V.24 output
Pin 4 = external demodulator input
Pin 5 = DTR (Data Terminal Ready) input
RCA JACK #1
Inner conductor: audio input from VHF/UHF packet-radio, hot side
Outer conductor: audio input from VHF/UHF packet-radio, ground side
RCA JACK #2
Inner conductor: audio input from HF radio, hot side
Outer conductor: audio input from HF radio, ground side
RCA JACK #3
Inner conductor: video output, hot side
Outer conductor: video output, ground side
- Page 33 -
