Summary of Contents for Unical eK!

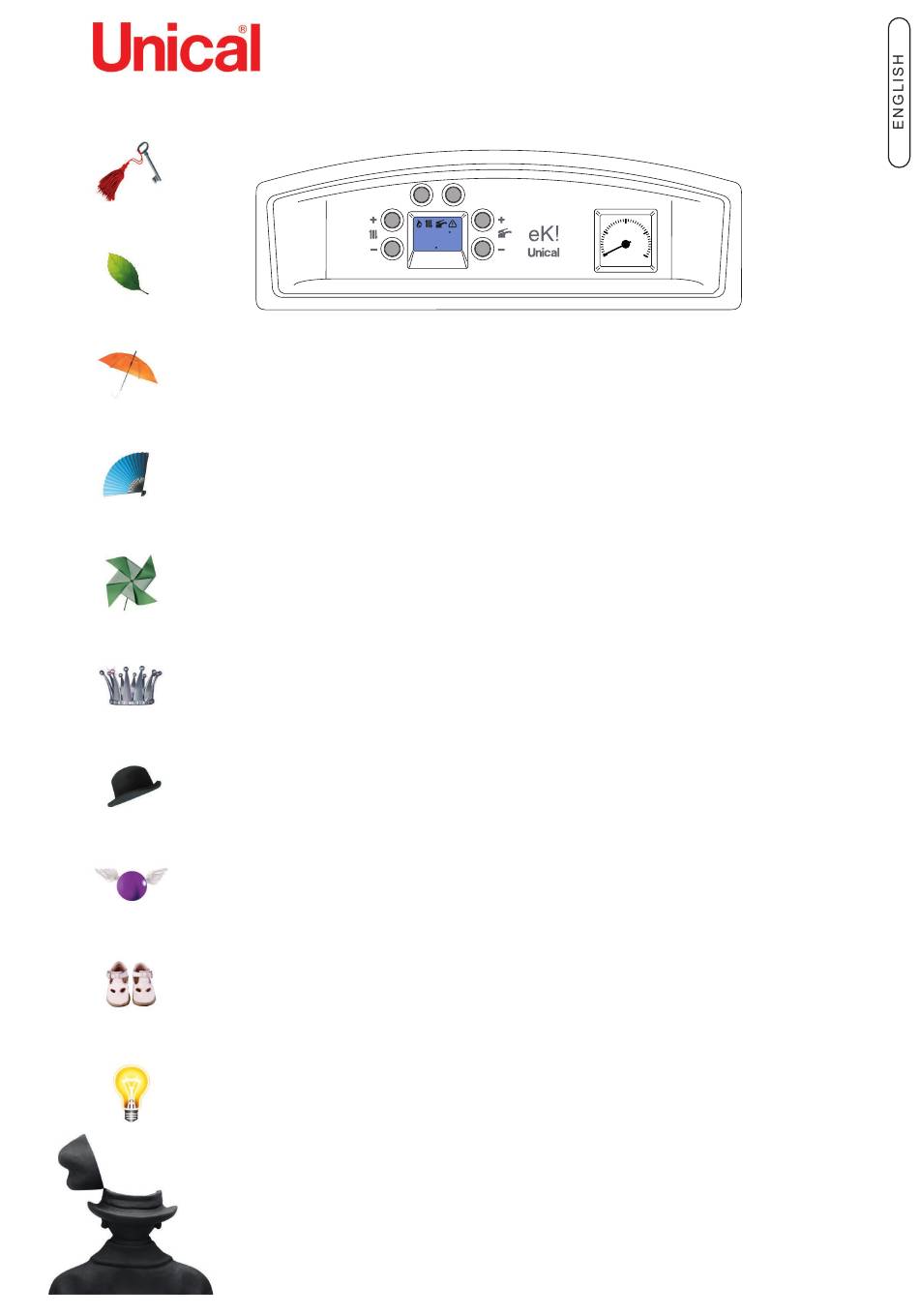

- Page 1 MODE RESET ® USER’S OPERATING INSTRUCTION...
-
Page 2: Safety Warnings
SAFETY WARNINGS CAUTION! The appliance may only be used by adults after reading the installation and servicing manual thoroughly. Children must be supervised to prevent them from playing or tampering with the appliance CAUTION! The appliance must be installed, adjusted and maintained by professionally qualified personnel, in compliance with the standards and provisions in force. -
Page 3: Symbols Used In The Manual
1 - SYMBOLS USED IN THE MANUAL Pay special attention when reading this manual to the parts marked by the symbols: ATTENTION! NOTE! DANGER! Possible dangerous Tips Serious danger for situation for the product and the environment for the user personal safety and life 2 - APPROPRIATE USE OF APPLIANCE The boiler has been built according to the current level of engineering and acknowledged... -
Page 4: Control Panel
6 - OPERATING INSTRUCTIONS 6.1 - CONTROL PANEL MODE RESET ® Menu access key: Info / Errors log / Parameters Pressure gauge Room heating temperature regulators (request from ON-OFF thermostat) Domestic hot water temperature regulators Reset button Information display Heating function active Domestic hot water function active RESET Burner in operation symbol... -
Page 5: Checks Before Commissioning
F - Operation in heating mode D - Unblock button The symbol flashes when the boiler y acting on this button one can: receives a request in heating mode (*). If a request for domestic hot water production is received at the same time, the symbol stays fixed - restart the boiler after the burner on and the symbol flashes safety device has intervened, ac-... -
Page 6: Operation
6.3 - OPERATION Domestic hot water production Heating discharge Make sure that on the display E Make sure that on the display E is ) is lit up, select the mode via lit up ( ), select the mode via MODE MODE MODE. -
Page 7: Eliminating Faults
How to elimi- Restore the correct pressure value event of condensation drainage difficulties. by acting on the boiler filling valve nate the fault: In these case contact an Authorised Unical Assis- (for optimum operation, the pres- tance Centre. sure value should be within 0.8 and 1 bar). UNICAL AG S.P.A. disclaims When the minimum pressure value is reached (0.6 bar), boiler opera-... - Page 8 46033 casteldario - mantova - italia - tel. +39 0376 57001 - fax +39 0376 660556 S.p.A. info@unical-ag.com - export@unical-ag.com - www.unical.eu Unical declines every responsibility for the possible inaccuracies if owed to errors of transcript or press. Also reserves the right to bring those changes that it will hold necessary to it own products or profits, without jeopardizing its essential characteristics...
