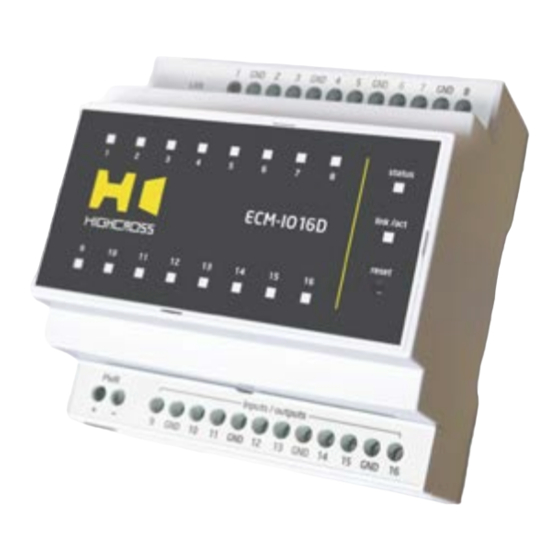

Highcross ECM-IO16D Quick Reference Manual

The Highcross ECM-IO16D module has sixteen digital input/output
channels.
Digital inputs can be configured as normally-open or normally-close
input type.
Digital outputs are implemented as open collector.
Number of channels
Type of digital inputs
Type of digital outputs
Maximum current of digital
outputs
Maximum voltage on digital
outputs
Supply voltage
(power terminals and PoE)
Consumption current
FACE PANEL COMPONENTS
1...16 Activity indicators of channels 1...16
Indicates power status and connection to control-
status
lers
link/act Ethernet link and activity indicator
reset
Multifunctional button (reboot, reset, bootloader)
TERMINAL PANELS
LAN
Ethernet network and PoE power connector
1...16 Terminals of digital inputs/outputs
Ground contact of digital inputs/outputs,
GND
electrically connected to PWR "–" contact
PWR Power supply terminals (+12...48 VDC)
ECM-IO16D
Digital Inputs/Outputs Module

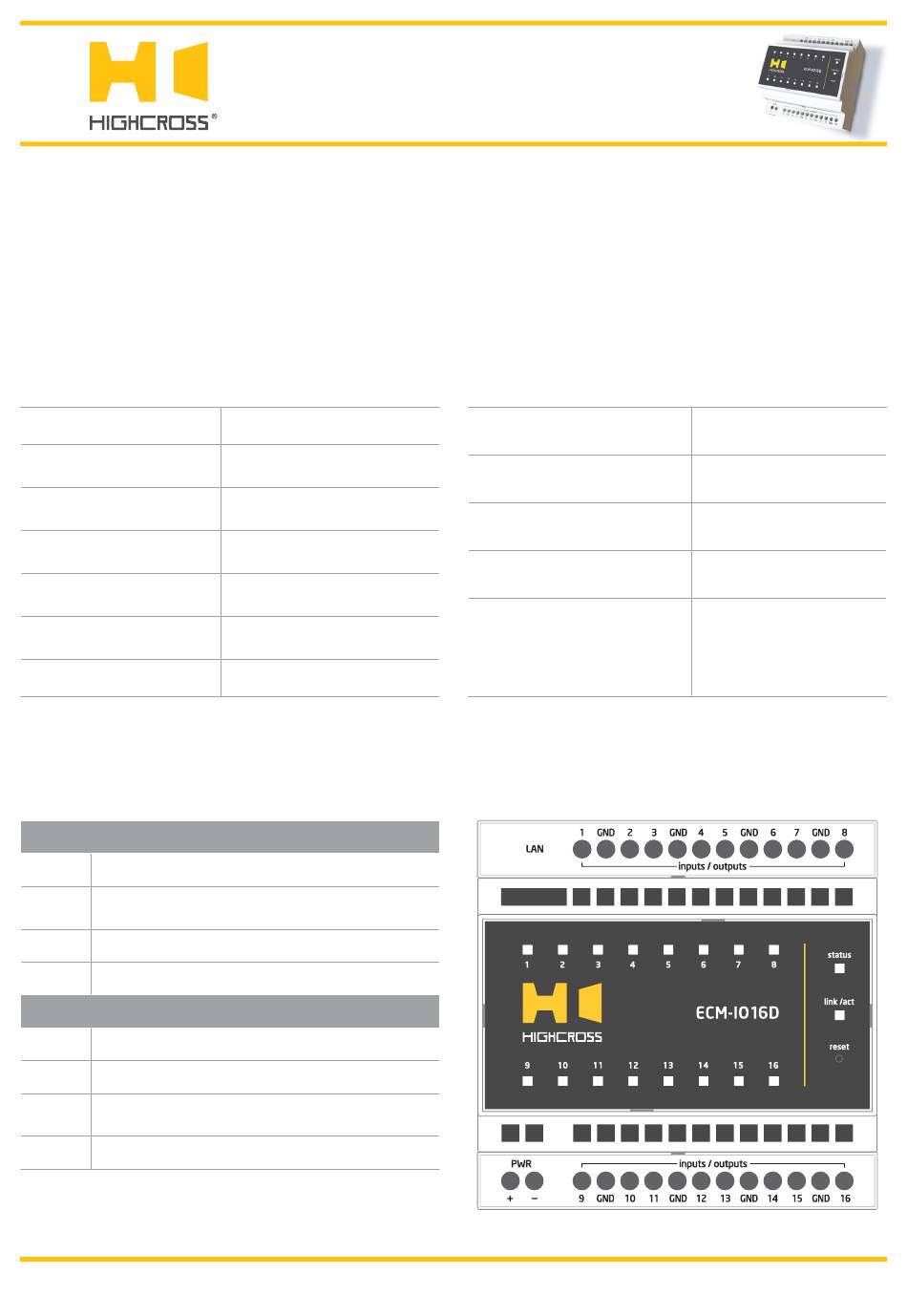

Quick Reference Guide (revision 1.50)
OVERVIEW
SPECIFICATIONS
16
TTL, reference voltage +5 V,
Short Circuit Current ~ 1 mА
Open collector
200 mA
24 VDC
+12 ... 48 VDC
120 mA at +12 VDC
DEVICE CONTROL COMPONENTS
Control of device is produced by TCP/IP network. Built-in web-in-
terface is used to device configuration.
The module is designed to be installed on a standard 35 mm DIN
rail.
Operating temperature
Operating humidity
Dimensions
Weight
Supported data exchange
protocols
LAN
1 2
©
HighCross Ltd.
-20°C ... +45°C
( -5°F ... +115°F)
5 ... 80% RH
non-condensing
90 x 88 x 58 mm
(3.54" x 3.46" x 2.28")
175 g
(0.385 lbs)
NetString
ModBus TCP
ModBus RTU over TCP
15 16 17 18 19 20 21 22
3 4 5 6 7 8 9 10
23 24 25 26
11 12 13 14
