Highcross ECM-UTM4D Quick Reference Manual

The Highcross ECM-UTM4D is an electronic universal 3-channel
thermostat module designed to control of heating or cooling sys-
tems.
The module has three built-in thermostats, three power relays,
four analog inputs for temperature sensors, three pairs of digital
inputs for priority dry-contact control from window-contact or etc.
Number of thermostats
Number of relays
Maximum switching rating
Number of analog inputs
for temperature sensors
Analog input types
Supported temperature
sensors types
Number of digital inputs of
direct relay control
Supply voltage
(power terminals and PoE)

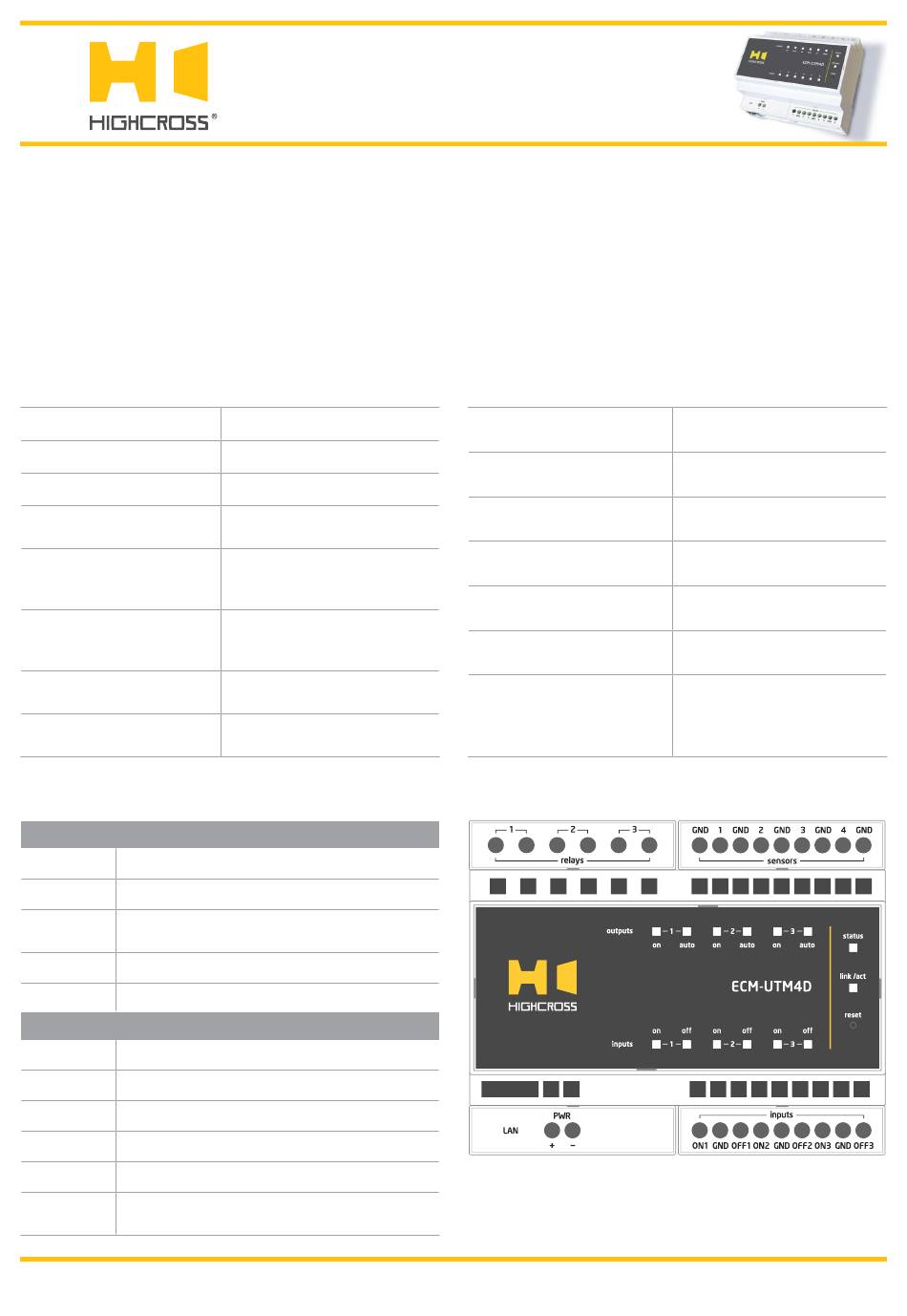

FACE PANEL COMPONENTS

outputs 1...3 Indicators of relay state and auto mode
inputs 1...3 Indicators of digital inputs of direct relay control
Indicates power status and connection to
status
controllers
link/act
Ethernet link and activity indicator
reset Multifunctional button (reboot, reset, bootloader)

TERMINAL PANELS

relays 1...3
Terminals of thermostat's relay contacts
sensors 1...4 Terminals of analog inputs
LAN
Ethernet network and PoE power connector
PWR
Power supply terminals (+12...48 VDC)
inputs 1...3 Terminals of digital inputs of direct relay control
Ground contact of digital inputs,
GND
electrically connected to PWR "–" contact
ECM-UTM4D
Universal Thermostat Module
Quick Reference Guide (revision 1.60)

OVERVIEW

SPECIFICATIONS

3
3
8 A @ 250 VAC
4
Resistance input
0-10 V, 1-10 V,
4-20 mA, 0-20 mA
NTC 1.8 kOhm, NTC 10 kOhm,
NTC 12 kOhm, NTC 15 kOhm,
NTC 20 kOhm
3 pairs
+12 ... 48 VDC

DEVICE CONTROL COMPONENTS

All relay outputs are normally open and are disconnected when
the power is off.
The control, data exchange and configuration are all handled via
TCP/IP protocol.
The module is designed to be installed on a standard 35 mm DIN
rail.
Consumption current
Operating temperature
Operating humidity
Enclosure
Dimensions
Weight
Supported data exchange
protocols
12 13 14
LAN 1 2
©
HighCross Ltd.
250 mA at +12 VDC
-20°C ... +45°C
( -5°F ... +115°F)
5 ... 80% RH
non-condensing
6M DIN rail box,
UL94-V0 flame retardant PC
90 x 106 x 58 mm
(3.54" x 4.17" x 2.28")
235 g
(0.518 lbs)
NetString
ModBus TCP
ModBus RTU over TCP
15 16 17 18 19 20
3 4 5
21 22 23 24 25 26
6 7 8 9 10 11
