Highcross ECM-RS2D Quick Reference Manual

The ECM-RS2D module is designed to control any devices with
RS232/RS485 interface as well as be DMX512 controller.
The module is a bidirectional gateway between physical interface
RS232/RS485 and Ethernet network and supports multiple TCP/
IP connections for each serial port.
The device has 2 independent isolated serial ports.
Number of serial ports
Supported interfaces of
serial ports
Supported signals of
physical interfaces
Isolation of serial ports
Supply voltage range
Consumption current
Operating temperature

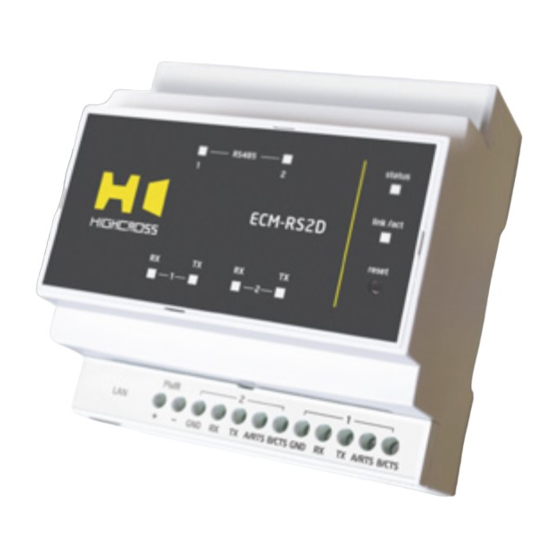

FACE PANEL COMPONENTS

RX 1–2 Indicates receiving data from ports 1–2
TX 1–2 Indicates transmitting data to ports 1–2
RS485 1–2
Indicates RS485 mode of ports 1–2
Indicates power status and connection to
status
controllers
link/act Ethernet link and activity indicator
Multifunctional button (reboot, reset, bootload-
reset
er)

TERMINAL PANELS

LAN
Ethernet network and PoE power connector
PWR Power supply terminals (12–24 VDC)
Serial ports terminals:
GND – Ground contact of RS232 interface,
isolated from PWR "–" contact
1–2
RX/TX – RS232 RXD and TXD signals
A/RTS – RS232 RTS or RS485 A(–) signal
B/CTS – RS232 CTS or RS485 B(+) signal
ECM-RS2D
RS232/RS485/DMX512 Ports Module
Quick Reference Guide (revision 2.30 for H/W Rev.E)

OVERVIEW

SPECIFICATIONS

2
RS232, RS485, DMX512
RS232: GND, TX, RX, RTS, CTS
RS485, DMX512: A(–), B(+)
Up to 1 kV
12–24 VDC via power terminals
48 VDC via PoE port
200 mA @ 12 VDC
-20° C to 45° C
-5° F to 115° F

DEVICE CONTROL COMPONENTS

The control, data exchange and configuration are all handled via
TCP/IP protocol.
The ECM-RS2D version is designed to be installed on a standard
35 mm DIN-rail.
Operating humidity
Enclosure
Dimensions (HWD)
Weight
Supported data exchange
protocols
LAN
©
HighCross Ltd.
5 to 80% RH
non-condensing
5M DIN rail box,
UL94-V0 flame retardant PC
90 mm x 88 mm x 58 mm
3.54" x 3.46" x 2.28"
170 g
0.37 lbs
NetString
Point-to-Point
