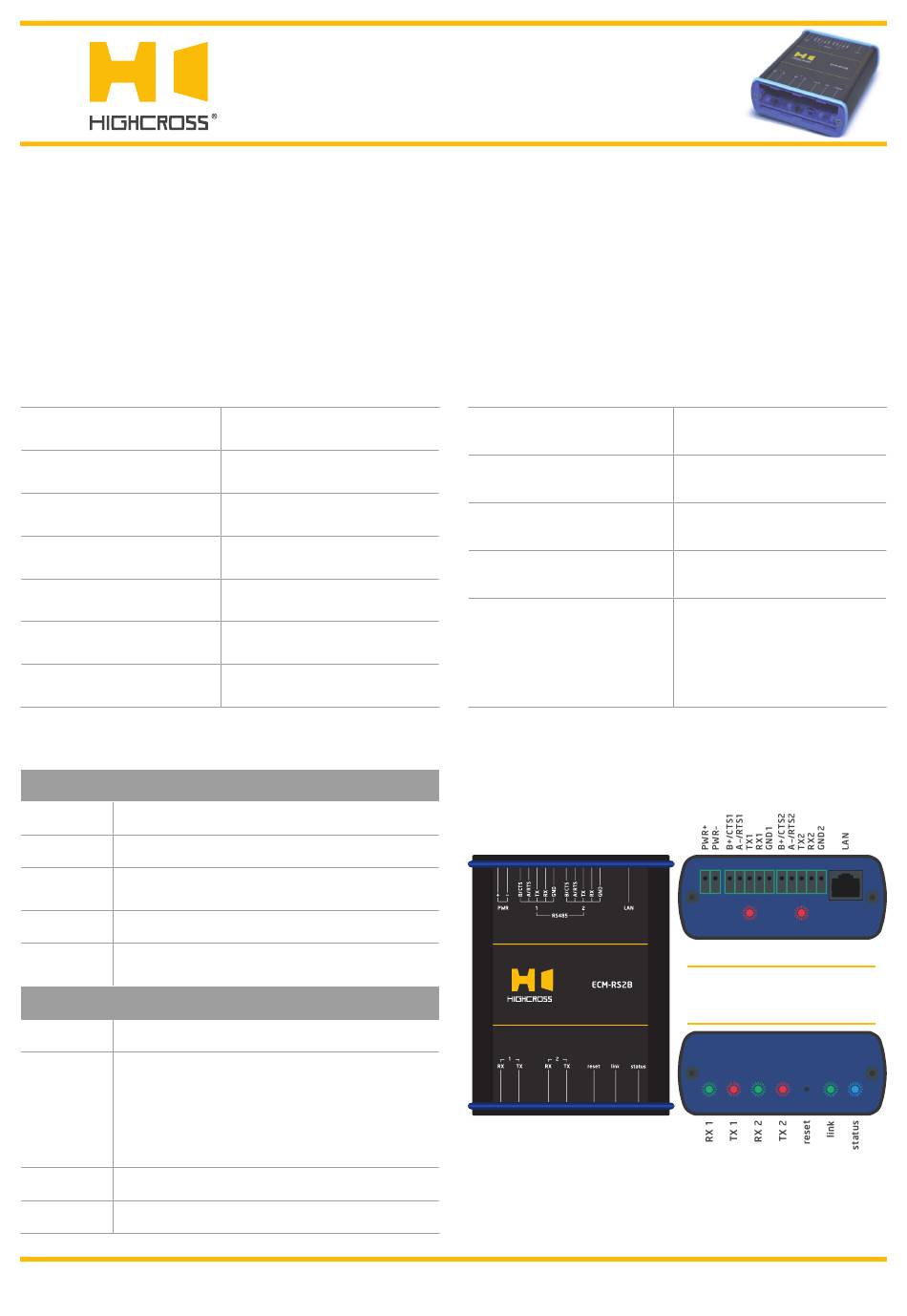

Highcross ECM-RS2B Quick Reference Manual

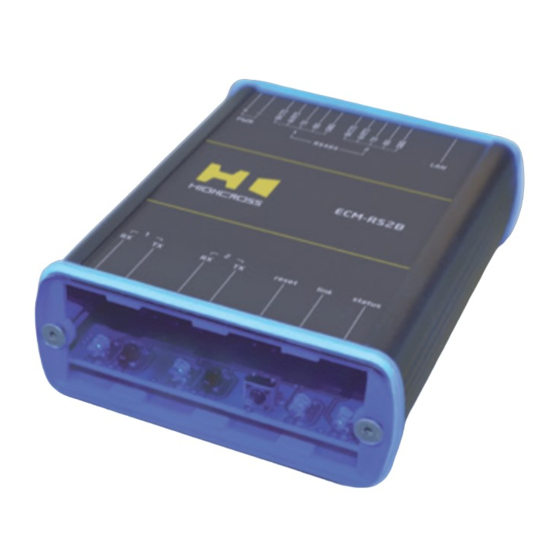

The ECM-RS2B module is designed to control any devices with
RS232/RS485 interface as well as be DMX512 controller.
The module is a bidirectional gateway between physical interface
RS232/RS485 and Ethernet network and supports multiple
TCP/IP connections for each serial port.
The device has 2 independent isolated serial ports.
Number of serial ports
Supported interfaces of
serial ports
Supported signals of
physical interfaces
Isolation of serial ports
Supply voltage range
Consumption current
Operating temperature
FRONT PANEL COMPONENTS
RX 1–2 Indicates receiving data from ports 1–2
TX 1–2 Indicates transmitting data to ports 1–2
Indicates power status and connection to
status
controllers
link
Ethernet link and activity indicator
Multifunctional button (reboot, reset, bootload-
reset
er)
REAR PANEL COMPONENTS
PWR Power supply terminals (12–24 VDC)
Serial ports terminals:
GND
– Ground contact of RS232 interface,
isolated from PWR "–" contact
1–2
RX/TX
– RS232 RXD and TXD signals
A–/RTS – RS232 RTS or RS485 A(–) signal
B+/CTS – RS232 CTS or RS485 B(+) signal
LAN Ethernet network and PoE power connector
RS485 1–2 Indicates RS485 mode of ports 1–2
ECM-RS2B
RS232/RS485/DMX512 Ports Module
Quick Reference Guide (revision 2.30 for H/W Rev.E)
OVERVIEW
SPECIFICATIONS
2
RS232, RS485, DMX512
RS232: GND, TX, RX, RTS, CTS
RS485, DMX512: A(–), B(+)
Up to 1 kV
12–24 VDC via power terminals
48 VDC via PoE port
200 mA @ 12 VDC
-20° C to 45° C
-5° F to 115° F
DEVICE CONTROL COMPONENTS
The control, data exchange and configuration are all handled via
TCP/IP protocol.
The ECM-RS2B version is designed to hidden, rackmount and
tabletop installations.
Operating humidity
Enclosure
Dimensions (HWD)
Weight
Supported data exchange
protocols
©
HighCross Ltd.
5 to 80% RH
non-condensing
Metal with black matte finish
34 mm x 84 x mm x 109 mm
4.30" x 3.30" x 1.34"
190 g
0.42 lbs
NetString
Point-to-Point
1 – RS485 – 2
REAR VIEW
FRONT VIEW
