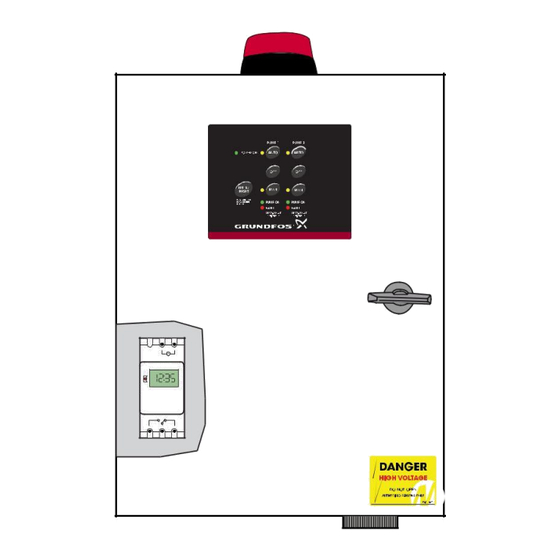

Rheem Redi-set Deluxe UPS 20-60N Owner's Manual

Rheem Redi-set Deluxe UPS 20-60N Owner's Manual

Dual pump sets

Advertisement

Quick Links

Owner's Operation Manual
Redi-Set Dual Pump Sets
Deluxe Model
This heating unit must be installed and serviced by a qualified person.
Please leave this guide with a responsible officer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redi-set Deluxe UPS 20-60N and is the answer not in the manual?

Questions and answers

Summary of Contents for Rheem Redi-set Deluxe UPS 20-60N

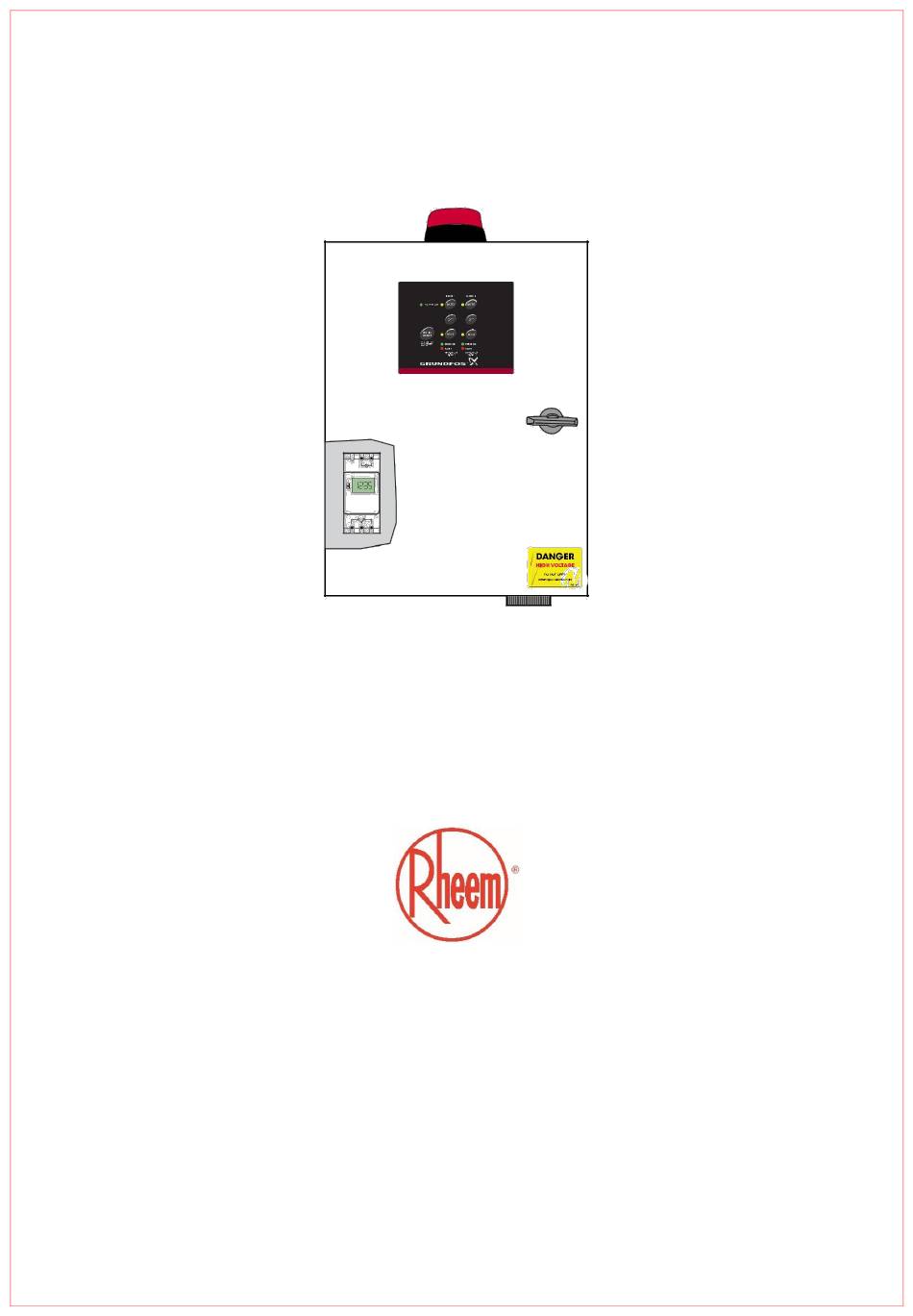

  • Page 1 Owner’s Operation Manual Redi-Set Dual Pump Sets Deluxe Model This heating unit must be installed and serviced by a qualified person. Please leave this guide with a responsible officer.
  • Page 2: Table Of Contents

    The Rheem Warranty – General ....................11 Terms Of The Rheem Warranty And Exclusions To It ..............11 What Is Covered By The Rheem Warranty For The Products Detailed In This Document ... 12 Entitlement To Make A Claim Under This Warranty..............12 How To Make A Claim Under This Warranty ................
  • Page 3: Safety

    SAFETY WARNING: All electrical connections must be carried out by a suitably qualified and registered electrician.  Prior to Installation, ensure power supply is isolated.  Power supply must be Circuit Breaker Protected. (Qualified Electrician to determine appropriate amp rating.) ...
  • Page 4 Setting this DIP Switch to “On” will cause the controller to operate in “Circulation Mode” where duty will only alternate once the pump has run for 6 hours of accumulated time. Location of the DIP Switches Manual Mode Timeout With DIP Switch 5 set to “On” the pump will only remain in Manual Mode for 5 minutes, after which time, it automatically reverts to Auto.
  • Page 5: Setting Up Time Clock

    SETTING UP TIME CLOCK 1. To start switch, press Reset key 2. To adjust the present time, please press key, then press D+, H+, M+ to adjust the Days, Hours and Minutes. 3. Programming steps as follows: Step Programming Press P Setting 1 ON time (display 1 on) Press H+/M+ Setting hours and minutes...
  • Page 6: Dimensions And Technical Data Table

    DIMENSIONS AND TECHNICAL DATA TABLE Circulator Type UPS 20-60N UPS 32-80N Model Number: Deluxe 99501272 99501293 Liquid Temperature 2-110 2-110 Range (°C) Max. Ambient Temperature (°C) Max. Operating 1000 1000 Pressure (kPa) Pipe Connection (BSP) R¾ R1¼ Height x Length (mm) 990 x 340 990 x 340 Net Weight (kg)
  • Page 7: Pump Curve

    PUMP CURVE UPS 20-60N UPS 32-80N Redi-Set Pump Deluxe Model- Owner's Operation Manual AQ0901101 Rev A Nov 2018...
  • Page 8: Outdoor Cover

    OUTDOOR COVER Redi-Set pumps can be installed outdoor by installing outdoor covers supplied by Rheem. The part number for the outdoor cover is AQ2051057. It includes two self-tapping screws (8 gauge x 10mm) for attaching the cover with the Redi-Set pump.
  • Page 9: Circuit Diagram

    CIRCUIT DIAGRAM Redi-Set Pump Deluxe Model- Owner's Operation Manual AQ0901101 Rev A Nov 2018...
  • Page 10 Redi-Set Pump Deluxe Model- Owner's Operation Manual AQ0901101 Rev A Nov 2018...
  • Page 11: Redi-Set Dual Pump Sets Warranty

    The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. If you require a call out and we find that the fault is not covered by the Rheem warranty, you are responsible for our standard call out charge.
  • Page 12: What Is Covered By The Rheem Warranty For The Products Detailed In This Document

    3. WHAT IS COVERED BY THE RHEEM WARRANTY FOR THE REDI-SET PUMP SETS DETAILED IN THIS DOCUMENT 3.1 Rheem will repair or replace a faulty component of your product if it fails to operate in accordance with its specifications as follows:...
