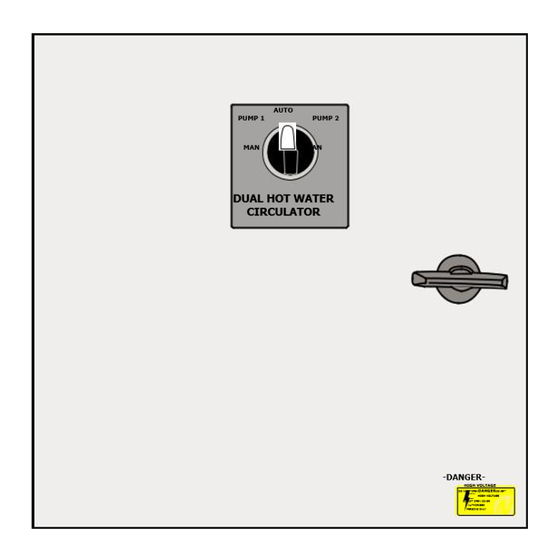

Owner's Operation Manual
Redi-Set Dual Pump Sets
Standard Model
This heating unit must be installed and serviced by a qualified person.
Please leave this guide with a responsible officer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS 20-60N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rheem UPS 20-60N

Summary of Contents for Rheem UPS 20-60N

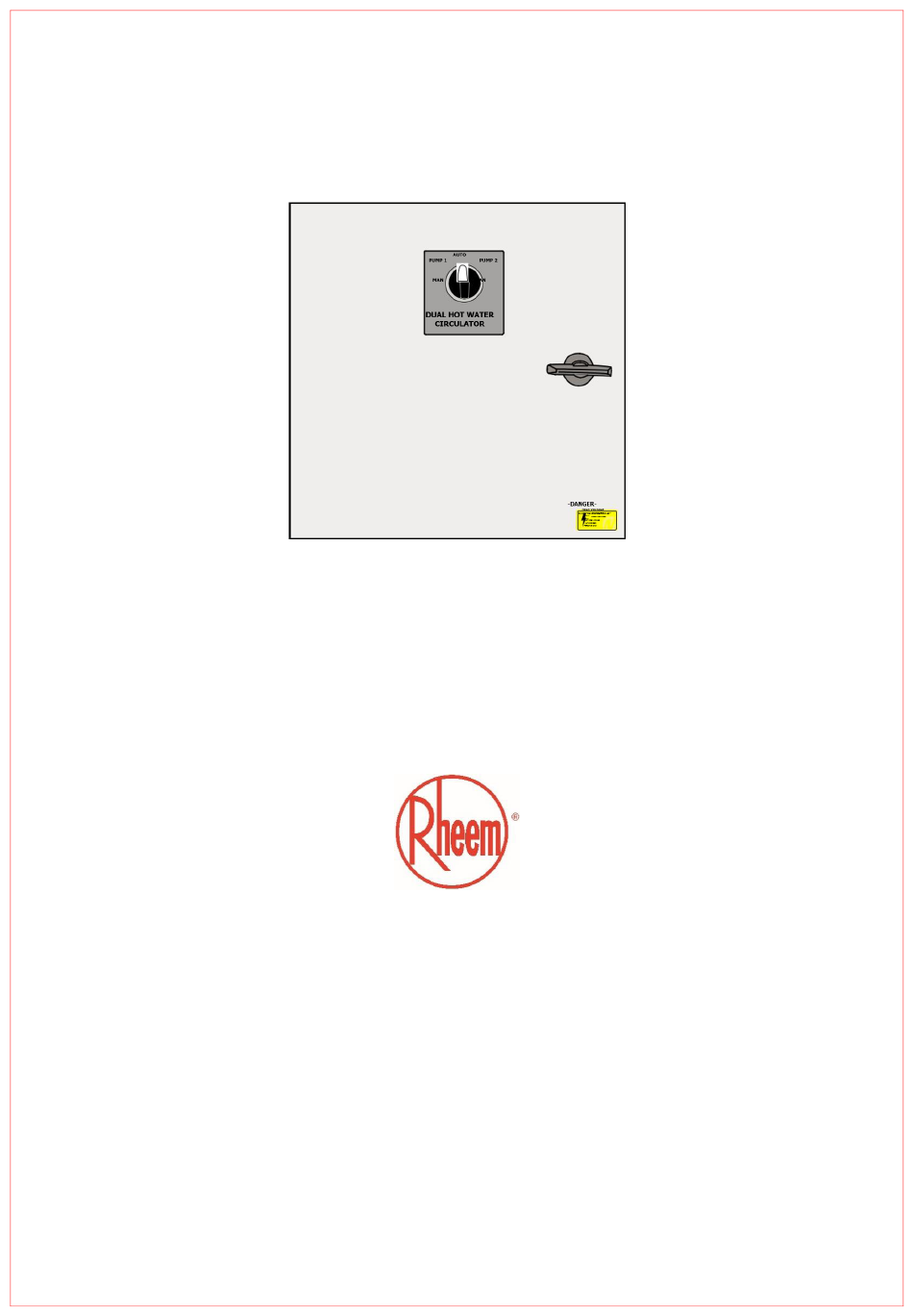

  • Page 1 Owner’s Operation Manual Redi-Set Dual Pump Sets Standard Model This heating unit must be installed and serviced by a qualified person. Please leave this guide with a responsible officer.
