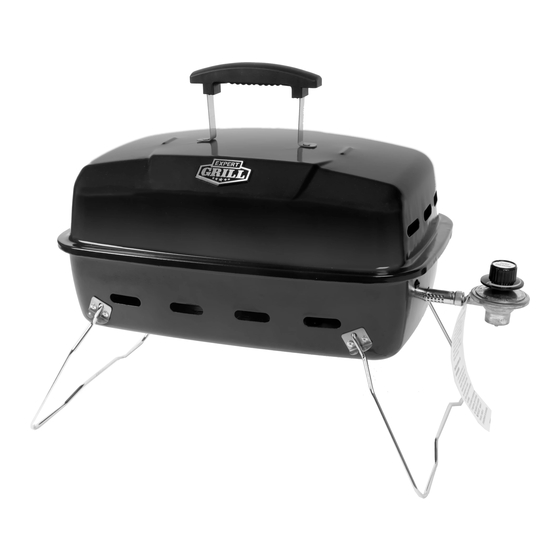

EXPERT GRILL GBT2510W Owner's Manual

Outdoor lp gas barbecue grill
Hide thumbs

Advertisement

Table of Contents

Outdoor LP Gas Barbecue Grill
Model No. EX5502638816006 (GBT2510W)
Model No. EX5502638816006 (GBT2510W)

Table of Contents

. . . . . . . . . . . . . . . . . . . .
Important Safeguards
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
The use and installation must conform with local
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION . PLEASE READ AND KEEP FOR
FUTURE REFERENCE .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
Walmart call center:
Service hours 7 days/week, 7:00 AM - 9:00 PM CST
Contact number: 1-833-908-2026
Manufactured in Vietnam for:
RevoAce Inc . Limited / Hong Kong, China
GBT2510W-OM-E-F100
OWNER'S MANUAL
OWNER'S
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
DANGER
Do not leave this appliance
unattended, especially cooking the
fatty meat and close lid too long time.
Failure to follow the dangers,
Page 2
warnings and cautions in this manual
may result in serious bodily injury
or death, or in a fire or an explosion
causing damage to property.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately
call your fire department. Failure
to follow these instructions could
result in fire or explosion which
could cause property damage,
personal injury or death.
MANUAL
(outside any enclosure)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GBT2510W and is the answer not in the manual?

Questions and answers

Jonni
July 17, 2025

does this grill accommodate a 20lb propane tank. Thanks

0

Related Manuals for EXPERT GRILL GBT2510W

Summary of Contents for EXPERT GRILL GBT2510W

  • Page 1: Table Of Contents

    OWNER’S OWNER’S MANUAL MANUAL Outdoor LP Gas Barbecue Grill Model No. EX5502638816006 (GBT2510W) Model No. EX5502638816006 (GBT2510W) WARNING FOR YOUR SAFETY: 1. Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
  • Page 2 FOR YOUR SAFETY DANGER 1. Never operate this appliance unattended. 2. Never operate this appliance within 10 ft (3.0 m) of any structure, combustible materials or other gas cylinder. 3. Never operate this appliance within 25 ft (7.5 m) of any flammable liquid. 4.
  • Page 3 IMPORTANT SAFEGUARDS W This grill is for outdoor use only, and should not be used in a building, garage or any other enclosed area. W Do NOT operate, light or use this appliance within ten feet (3.0 m) of walls, structures or buildings. W For residential use only.
  • Page 4 IMPORTANT SAFEGUARDS W Never fill the cylinder beyond 80 percent full.A fire causing serious injury or damage to property may occur if the above is not followed exactly. W Never attempt to attach this grill to the self-contained LP gas system of a camper trailer, motor home or house.
  • Page 5 IMPORTANT SAFEGUARDS W Do NOT install or use in or on boats or recreational vehicles. W When cooking, fire extinguishing materials should be readily accessible. In the event of an oil/grease fire, do NOT attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.

  • Page 6: Expanded View & Hardware

    Expanded View...
  • Page 7 Parts List Handle G2510-010 Regulator/Control Knob G2210-030 Brand Plate* B0109-LBE1 Leg Support (4)* G2510-040 G2210-010 Heat Shield G1814-040 Lid Handle Plate G2014-020 Leg (2) G2014-090 * Pre-assembled Cooking Grid G2014-040 Heat Plate G2210-060 Heat Plate Support (2) B0231-B00 Burner G2014-050 Bottom Bowl G2510-020 Hardware...

  • Page 8: Assembly Instructions

    Assembly Instructions Attach Lid Handle and Lid Handle Plate DO NOT RETURN TO PLACE OF PURCHASE. Please have your owner’s manual and model number available for reference . Note: The model number can be found on the back or side of the grill .
  • Page 9 Insert Heat Plate, Cooking Grid and attach Attach Heat Shield and Burner Regulator/Control Knob Note: Once attached, the regulator/control knob will freely rotate to accomodate for the LP gas tank . Cover Lid...
  • Page 10 Fold Legs and Lock Lid Note: Lid must be locked before transporting grill . Unfold Legs and Unlock Lid Note: Always open legs completely and secure in place befor lighting grill . . Reminder: All hardware needs to be fully tightened before usage.

  • Page 11: Operating Instructions

    Operating Instructions This grill is designed to operate with a 1 lb . Figure 1 7 .75 in . or 10 .6 in . high disposable / 16 .4 oz . or 14 .1 oz . propane gas tank (DOT 39 Cylinder) (Figure 1) . CAUTION 1 lb 1 lb...
  • Page 12 Operating Instructions (Continued) Lighting Instructions Figure 6 W CAUTION: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. W CAUTION: Do NOT obstruct the flow of combustion and ventilation air. W CAUTION: Check and clean burner/venturi tubes for insects and insect nests.

  • Page 13: Cleaning And Care

    Operating Instructions (Continued) If a grease fire occurs, close the lid AND turn regulator/control knob to “ OFF,” until the grease burns out . Use caution when opening the lid as sudden flare-ups may occur . If excessive flare-ups occur, do NOT pour water onto the flames . Minimize Flare-ups: Trim excess fat from meats prior to cooking .
  • Page 14 Cleaning and Care (Continued) 10 . Clean any clogged ports with a stiff wire (such as an opened paper clip) . 11 . Inspect burner for any damage (cracks or holes) . If damage is found, replace with a new burner from manufacturer . 12 .

  • Page 15: Limited Warranty

    Limited Warranty RevoAce Inc . Limited (“RA”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of two (2) years for all remaining parts from the date of purchase, all parts in such product shall be free from defects in material and workmanship .

  • Page 16: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure LP gas tank is low or empty Replace LP gas tank Turn LP gas tank valve to “ OFF” LP gas leak Wait 5 minutes for gas to clear Follow “Checking for Leaks” section Wires or electrode covered with cooking residue Clean wire and/or electrode with rubbing alcohol Electrode and burners are wet Wipe dry with cloth...
