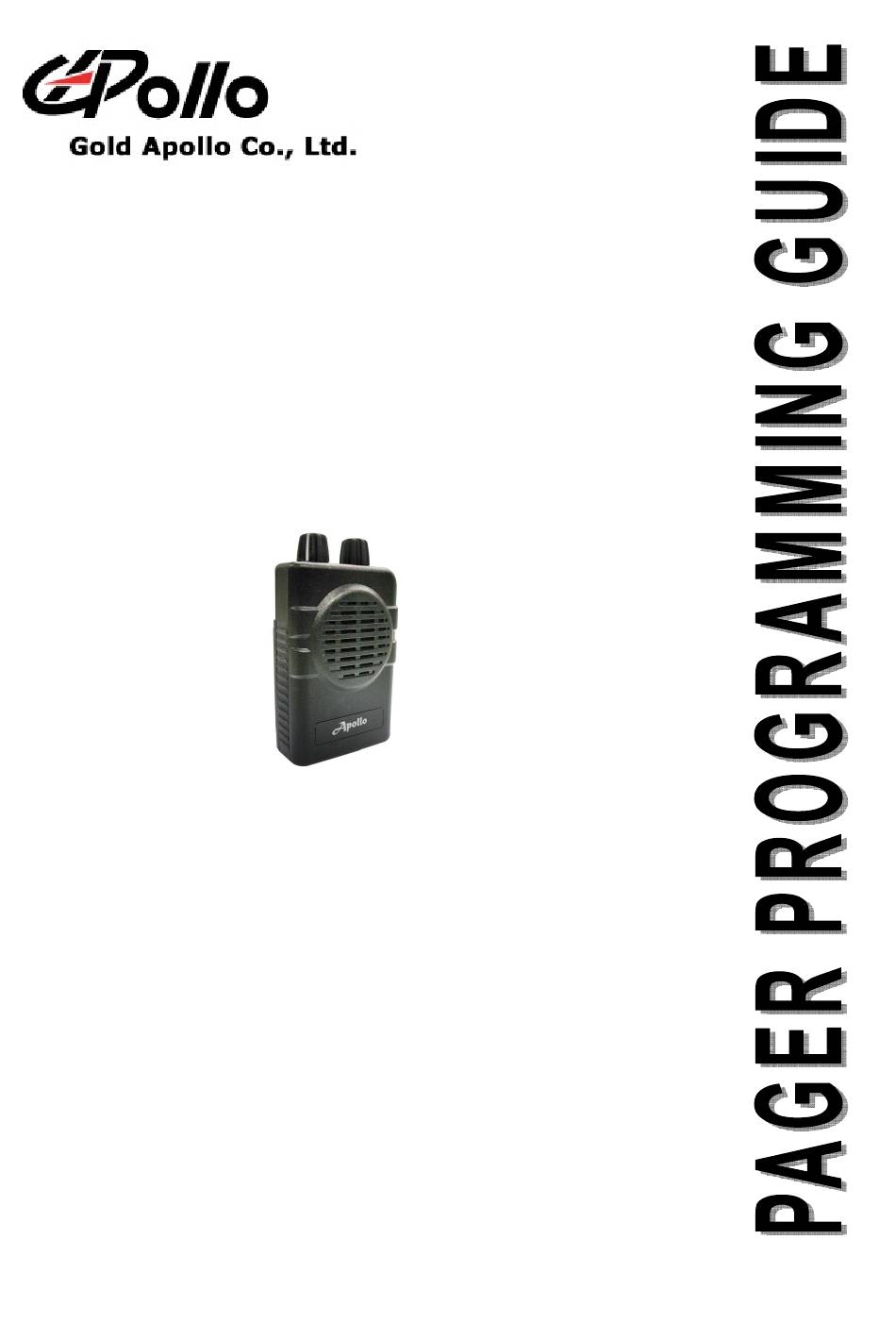

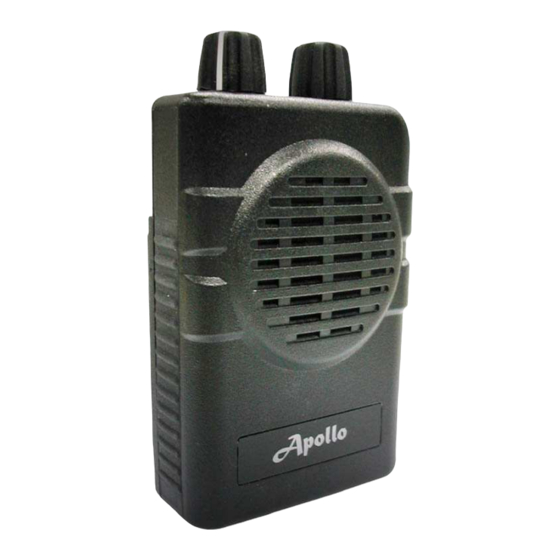

  • Page 1 Voice Pager MODEL： ： ： ： VP200...

  • Page 2: Table Of Contents

    QUIPMENT EQUIRED ................................ 1 ROGRAMMING NTERFACE INSTALLING PROGRAMMER SOFTWARE..........................2 .................................... 2 NSTALLATION ....................................7 UNNING CONNECTING PROGRAMMER TO VP200 ...........................8 VP200 PROGRAMMING ................................9 ................................... 9 NTRODUCTION ..............................10 TARTING THE ROGRAMMER ....................................11 Menu bar....................................11 Serial Setting..................................12 Channel Space Setting ................................ 12 Tone System..................................

  • Page 3: Getting Started

    PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The VP200 Pager Programming Software, provides the flexibility to program VP200 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide.

  • Page 4: Installing Programmer Software

    VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the VP200_Setup.zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”.
  • Page 5 VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 4. Enter your user information and click “Next”. (Note: you must enter at least a single character "into the company field) 5. Choose where the program should be installed and click “Next”. March 12, 2007...
  • Page 6 VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 6. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”. March 12, 2007...
  • Page 7 7. If you had installed USB driver then click “Finish” on the Setup Complete screen and VP200 Pager Programmer has been installed on your computer. 8. If you did not install USB driver then click “OK” to install USB driver.
  • Page 8 VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software March 12, 2007...

  • Page 9: Running

    PAGER PROGRAMMING SOFTWARE Installing Programmer Software 9. Please reboot your computer after USB driver and programming software installed. Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /VP200 Pager Programmer. March 12, 2007...

  • Page 10: Connecting Programmer To Vp200

    Refer to Figure then connect the programmer kit as follows: 1. At the rear of the PC, connect the USB cable Type A Male to the USB port. 2. Plug the USB cable Type B Male into USB connector of the VP200 programmer. Hardware installation is complete.

  • Page 11: Vp200 Programming

    8. Release the reset button as soon as the events in Step 7 occur. 9. Observe the position of the programming pins and insert the VP200 into the VP200 programming nest. The red indicator on the programming interface should light.

  • Page 12: Starting The Programmer

    VP200 Programming Starting the Programmer 1. The application can be launched from Start → Programs → Gold Apollo → VP200 Pager Programmer. The following window appears: 2. Input your password. If key in wrong password for 3 times, the system shuts off automatically.

  • Page 13: Main Menu

    In the menu bar, there are main menus with submenus like those conventionally used in Windows applications. File | Open Open a VP200 code-plug file. The file has the extension “.tbl”. File | Save Save the current code-plug data to a file.

  • Page 14: Serial Setting

    If Standard Mode is selected, all call tones must match the tone listed in this table. If a tone frequency other then the tone frequency listed in this table is entered in the call tone field, the VP200 Pager Programmer will round this frequency to the nearest frequency in the table.

  • Page 15: Channel

    If USER is selected, then any address tone frequency can be entered if proper tone spacing is maintained and between 280.0Hz and 3500.0Hz. Channel The model of VP200 is supported tow channels. Here is an example for channel F1. Frequency Channel F1 Enter the frequency of operation for the channel.
  • Page 16 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Call Tone CALL #1 If select this check box, the call address is always on. Tone 1/Tone 2 Make tone field entries. Entries into the tone fields are subject to previous selections of Tone System. If tone system selection is “Standard Mode”, after selecting the desired Call/Tone field and then pressing (F9), the tone tables may be displayed.
  • Page 17 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Alert Tone Type Select one of the Alert Tone type. The options has Standard, Continuous, User defines. Alert Patten Enter in the tones A; B; C; D in the sequence in which you would like them to be heard.

  • Page 18: Setting

    VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Setting Model Options Privacy Enable If select this check box, it can prevent the reset button from being used to monitor the channel. Disable Power Save If select this check box, the Power Save is disable.
  • Page 19 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming FIX Alert If select this check box, the pager operates in the “fixed alert” mode. This means the tone alert is at maximum volume regardless of the position of the volume control. If it isn’t selected, then the alert tone and voice audio level is adjustable using the volume control.
  • Page 20 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Save voice Enable or disable stored voice on models with this option. Record Section Select the maximum length (in seconds) of a message. This entry is available only on stored voice pagers. This option has 2 sections (120 seconds)、4 sections (60 seconds)、8 sections (30 seconds)、16 sections (15 seconds).
  • Page 21 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Alert Tonality Each letter can have possible waking audio frequencies from 150 cycles per second to 5.49 kHz. The system rounds entered frequency off depending upon the possibilities of the internal frequency divider on or.
