    ALA28 PAGER PROGRAMMING SOFTWARE Contents Contents GETTING STARTED ................................1 ................................1 QUIPMENT EQUIRED ..................................1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE........................3 ................................... 3 NSTALLATION ....................................6 UNNING ALA28 PROGRAMMING ..............................7 ..................................7 NTRODUCTION ..............................7 TARTING THE ROGRAMMER ..............................

  • Page 3: Getting Started

    ALA28 PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The ALA28 pager Programming software, provides the flexibility to meet individual requirements. To to program ALA28 pagers obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:...

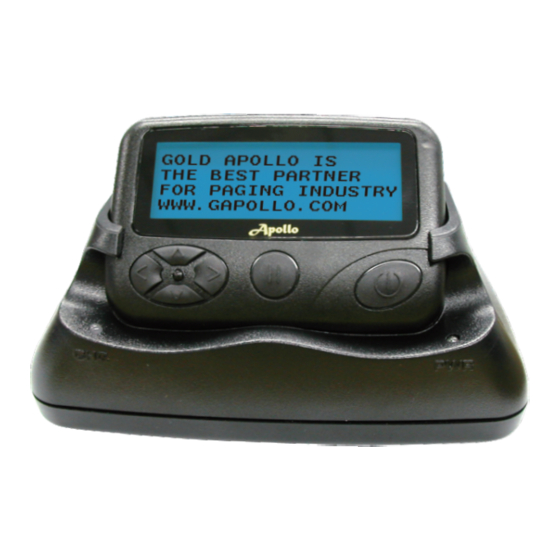

  • Page 4 ALA28 PAGER PROGRAMMING SOFTWARE Getting Started Power LED Computer Press down on the pager until it is tight in the fixture. ALA28 Programmer DB25 male-male printer cable AL-A28 Figure 1 Programmer Hardware Connections August 4, 2006...

  • Page 5: Installing Programmer Software

    ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the ALA28FV3.81_FD0801.zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”. 3.
  • Page 6 ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 5. Choose where the program should be installed and click “Next”. 6. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”. August 4, 2006...
  • Page 7 ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 7. Click “Finish” on the Setup Complete screen. August 4, 2006...

  • Page 8: Running

    ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Running You now have the program installed. To run it from the Start menu/Programs / Gold Apollo /ALA28 Pager Programmer August 4, 2006...

  • Page 9: Ala28 Programming

    → → G The application can be launched from Start Programs old Apollo → ALA28 Pager Programmer. The following window appears : Input your password. If key in wrong password for 3 times, the system shuts off automatically. If the password is correct, the following window appears :...
  • Page 10 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Now, the system examines that the ALA28 programmer is well installed. If any questions, the following window appears : Please re-check the ALA28 programmer and printer port are well installed or not. If connection successfully with the ALA28 programmer.

  • Page 11: Code And Features Menu

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Code and Features Menu Frequency ● You can select the range of frequency and all setting will load default value. ● The frequency is on which the pager operates. ● The baud rate is on which the pager operates. August 4, 2006...

  • Page 12: Capcode (Decimal Address)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Capcode (Decimal Address) ● Cap #1 Please input 1 Capcode (7 Dec digits between 8 and 2097151). ● Enable or disable 2 Capcode (address). ● 、 、 、 Click to set function bit (A B C D) message control. August 4, 2006...
  • Page 13 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming ● 、 、 、 Function Bit (A B C D) Message Display: N: STD Number. P: PRC Number. A: Alpha number. I: Ideographic. T: Tone only D: Disable ● 、 、 、 Function Bit (A B C D) Priority Alert: - is disable. ●...

  • Page 14: Auto Increase 1 After Write

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming The available selections for alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec. CT: continuous. Auto Increase 1 after write ● 1 capcode always increment by one after write. ●...

  • Page 15: Alert And Status

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Alert and Status Alert and Status ● If it is selected, then the message most length is 2,000 characters, otherwise the length only can be 300 characters. ● If it is selected, error message will be discarded. ●...
  • Page 16 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming ● This value represents the battery voltage level necessary for the battery gauge to display a full battery. If the battery voltage is higher or equal to this value, the full battery gauge icon is displayed. Valid selections are: 1.58V, 1.53V, 1.48V, 1.43V, 1.39V, 1.35V, 1.29V, 1.23V, 1.19V, 1.14V, 1.09V, 1.05V, and 1.00V.

  • Page 17: Manual Write

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming ● It selects the LCD display contract level. ● The value is a sequential lockout timer begins when a message arrives and is flagged as being sequentially locked out. If duplicate messages arrive, one of the messages is disregarded and not flagged as a duplicate.

  • Page 18: Prompts

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Prompts Out of Range Prompts August 4, 2006...

  • Page 19: File | Open (Ctrl + O)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming File | Open (Ctrl + O) Click “Open” or “Ctrl + O” to open the ALA28 code-plug file. The file has the extension “.tbl ”. File | Save (Ctrl + S) Click “Save” or “Ctrl + S”, save the current code-plug data to a file. File | Exit (Ctrl + E) Exit the programmer software.
  • Page 20 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming August 4, 2006...

  • Page 21: Pager | Write (F4)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Pager | Write (F4) Click “Write” or press “F4” to program the ALA28. The status window shows the writing process. When writing process finished, will starting 『 』 verify process, when it is done, you will see a window of Verify success on the screen.

  • Page 22: About

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming About About the ALA28 Pager Programmer software information. August 4, 2006...
