Summary of Contents for Akron AkroFlow 9301

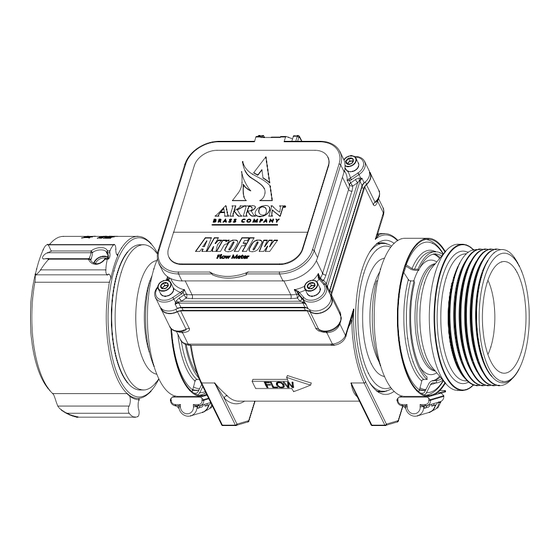

- Page 1 STYLE 9301 AkroFlow FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS The following is intended to provide the basic instructions for installation, operation, and maintenance. Read and under- stand these operating instructions before use. 127710...
-
Page 2: Product Ratings
Read and follow the operating instructions before use. For firefighting use only. Product Ratings Specifications: Type Electromagnetic (Mag-Meter) Weight 5.3# (2.4kg) Dimensions: L x W x H 10-3/4” (273mm) x 4-3/8” (111mm) x 6” (152mm) Flow Passage 2” (50.8mm) Full Port Fittings 2-1/2”... - Page 3 • Not designed for explosive environments. • The AkroFlow is intended for use by trained personnel. Seek appropriate guidance and training to reduce risk of injury. • The AkroFlow must be properly connected. Ensure the thread on the hose ends match the threads on the inlet and outlet of the AkroFlow.
- Page 4 Introduction The AkroFlow flow meter is a 2” full-bore corrosion resistant plastic bodied electromagnetic (mag meter) flow meter de- signed for testing fire fighting equipment. The AkroFlow is provided with a 2-1/2” female fulltime swivel on the inlet and a 2-1/2” male thread on the outlet, both made from hardcoat aluminum. With no moving parts in the flow path, the AkroFlow mag meter permits unobstructed flow, minimizing flow disturbances.
-
Page 5: Setup Instructions
2. To replace the six (6) AA batteries located inside the AkroFlow, simply remove the four cover bolts and gently remove the top cover. Be careful not to lose the washers. Move the top cover to one side and remove the foam retainer which covers the battery tray. -
Page 6: Maintenance Instructions
REVISED: 05/19 WARRANTY AND DISCLAIMER: We warrant Akron Brass products for a period of five (5) years after purchase against defects in materials or workmanship. Akron Brass will repair or replace product which fails to satisfy this warranty. Repair or replacement shall be at the discretion of Akron Brass. Products must be promptly returned to Akron Brass for warranty service.
