HAMPTON BAY LLD1501AX-01 Use And Care Manual

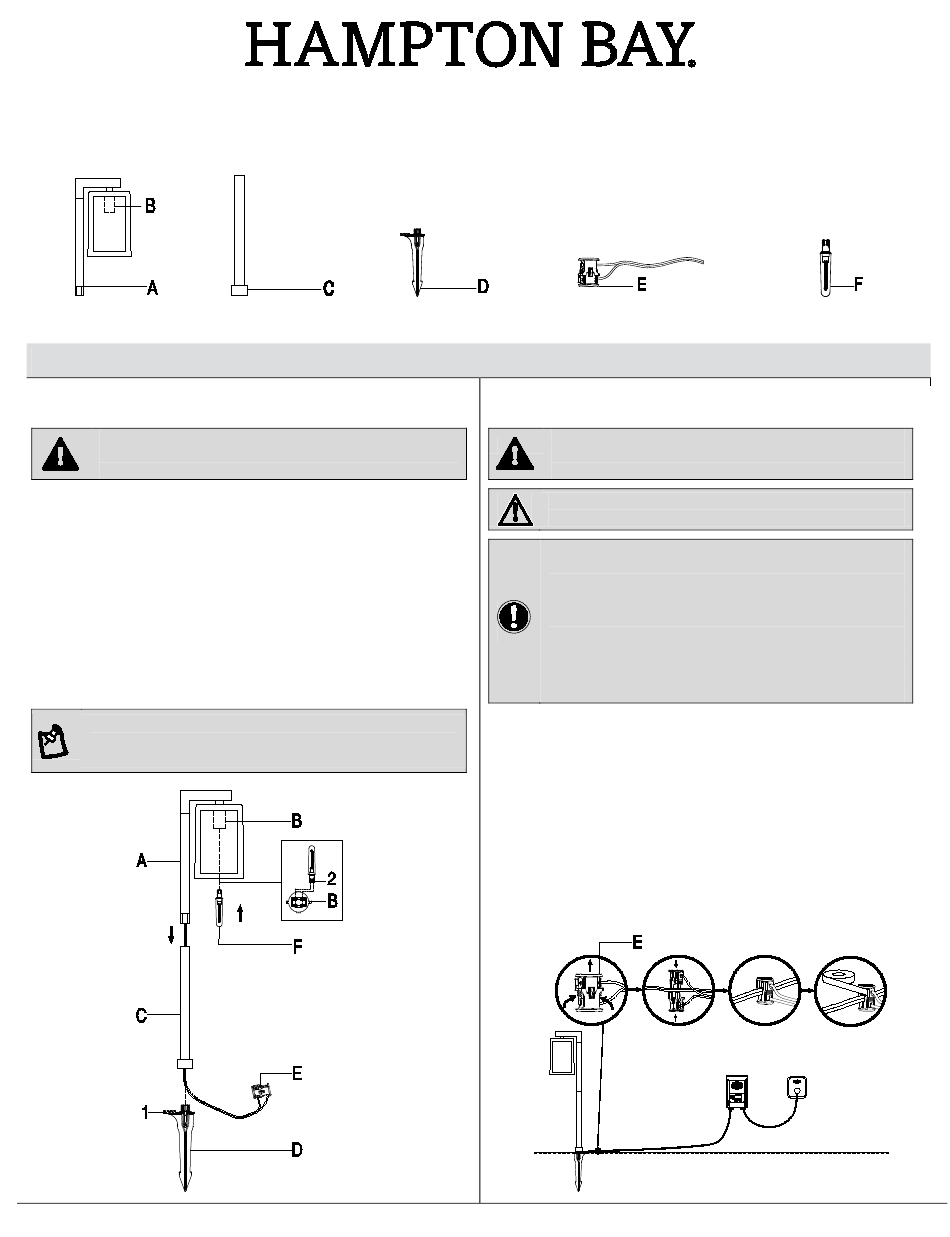

PACKAGE CONTENTS
A – Lamp Body x1
B – Socket x1
Assembly and Installation
1
Attaching and installing the light
WARNING: Never push the fixture into the ground by the lamp
body (A) or use a hammer to insert the ground stake (D) into the
ground.
Insert the lamp body (A) into the rod (C).
□
Insert the fixture wire on the wire connector (E) into the groove
□
located on the top of the ground stake (D).
Ensure the fixture wire on the wire connector (E) stays in the center
□
of the groove of the ground stake (D) to avoid damage to the fixture
wire. Screw the rod (C) onto the ground stake (D).
Prepare a hole in the installation location. Use a tool such as a
□
screwdriver (sold separately) to prepare the installation hole to
ensure that the hole is not larger than the ground stake (D).
Install the fixture in the ground by pushing on the foot step (1) on
□
the ground stake (D). Do not push on the lamp body (A).
NOTE: For replacing the LED bulb (F), pull the LED bulb (F) out of
the socket (B) by the base (2), and then insert the new LED bulb
(F) into the socket (B).The preinstalled LED bulb (F) is plastic.
C –Rod x 1 D –Ground Stake (6.6 in.) x1
LOW VOLTAGE LED PATH LIGHT
E –Wire Connector x1 (with 12 in.
wire attached to lamp body)
2
Connecting the wires
WARNING: The wire connector (E) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch
the metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16
AWG type underground low Energy Circuit Cable.
IMPORTANT:
Protect the wiring by routing it in close proximity to the light
□
fitting, or next to a building structure such as a house or a
deck.
The landscape wire and connector can also be hidden under
□
stone or buried under grass at a maximum depth of 6 in.
(15.24 cm).
Do not install the fixture within 10 ft. of a pool, spa, or fountain.
□
Do not submerge the fixture in water.
□
Place the wire connector (E) on opposite sides of the low voltage
□
cable (sold separately) from the transformer (sold separately)
where the fixture will be located.
Align and fit the main low voltage cable vertically to the slot of the
□
wire connector (E).
Press the wire connector (E) together until it is locked around the
□
main low voltage cable. The pre-set prongs will pierce the cable
insulation and establish contact with the electrical wire inside.
Once the wire connector (E) is in place, wrap it with electrical tape
□
(sold separately).
After all fixtures are installed, turn on the transformer.
□
1
Item # 1011504308
Model # LLD1501AX-01
Use and Care Guide
F - LED Bulb x1
