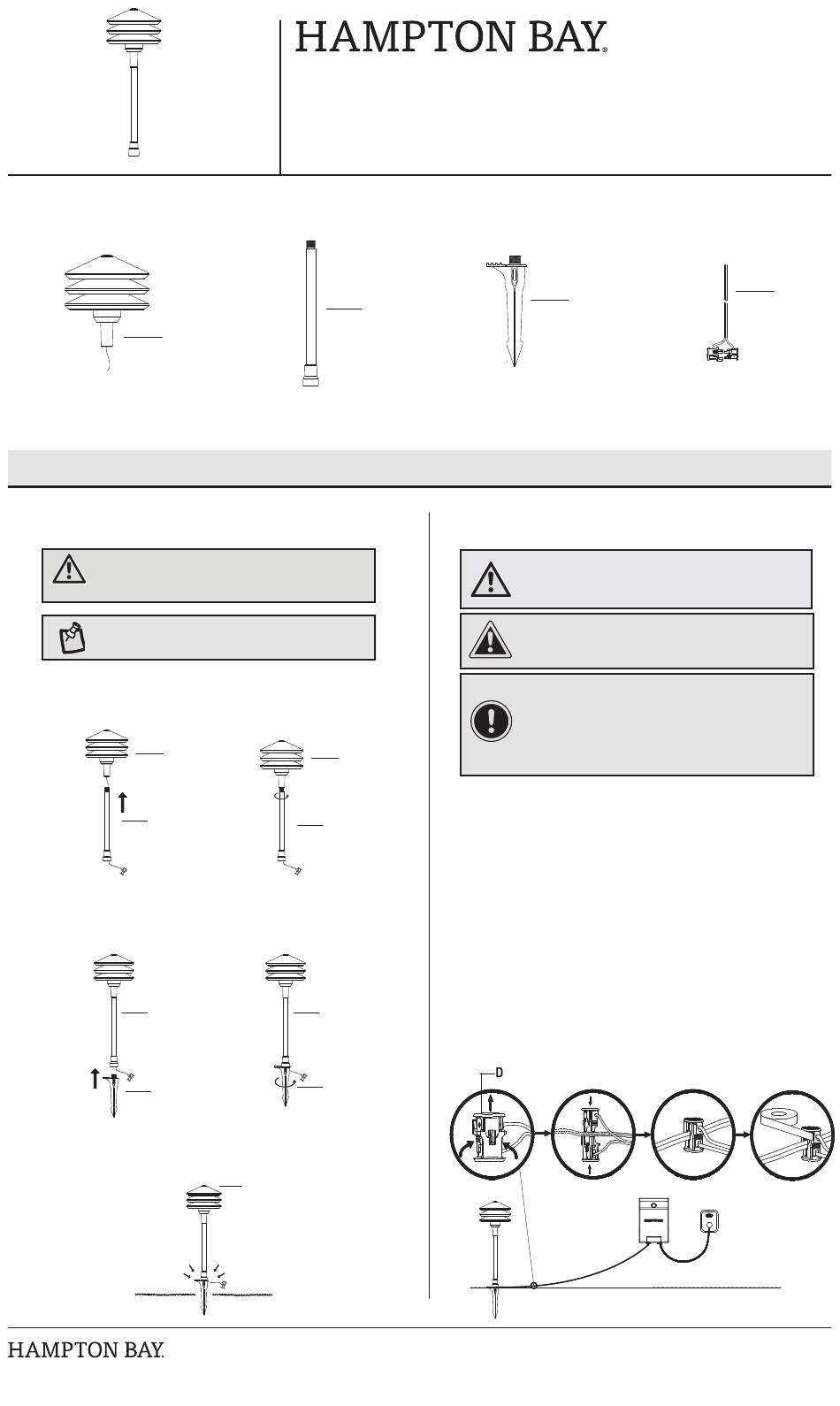

HAMPTON BAY LWP-P1BR3000KA2 Use And Care Manual

PACKAGE CONTENTS

A
A - Fixture Head

Assembly and Installation

1. Attaching and installing the light
WARNING: Never push the fixture into the ground by the
fixture head (A) or use a hammer to insert the in-ground
stake (C) into the ground.
NOTE: Do not use a hammer. If the ground is hard, use water
to soften it or a trowel to loosen the soil.
□
Attach the fixture head (A) to the fixture post (B), by inserting the fixture
post (B) into the fixture head (A)(Fig 1) and twisting it clockwise. (Fig 2)
A
B
(Fig 1)
□
Attach in-ground stake (C) by inserting into the bottom of the fixture
post (B) (Fig 3) and twisting clockwise. (Fig 4)
B
C
(Fig 3)
□
Push the stake assembly into the ground by grasping the fixture post.
Do not push on the fixture head (A).
(Fig 5)
Use and Care Guide
LED Low Voltage Walk and Path Light
B
B - Fixture Post
A
B
(Fig 2)
B
C
(Fig 4)
A
C
C - In-Ground Stake
2. Connecting the wires
WARNING: The wire connector (D) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch
the metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16
AWG type underground low energy circuit cable.
IMPORTANT: Protect the wiring by routing it in close proximity to the
light fitting, or next to a building structure such as a house or a deck.
The landscape wire and connector can also be hidden under stone
or buried under grass at a maximum depth of 6 in. (12.54 cm).
Do not install the fixture within 10 ft of a pool, spa, or fountain
Do not submerge the fixture in water.
□
Place the wire connector (D) on opposite sides of the main low voltage
cable (sold separately) from the transformer (sold separately) where the
fixture will be located. (Fig 6)
□
Align and fit the main low voltage cable horizontally over the slot of the
wire connector (D). (Fig 6)
□
Press the wire connector (D) together until it is locked around the main
low voltage cable. The preset prongs will pierce the cable insulation and
establish contact with the electrical wire inside.
□
Once the wire connector (D) is in place, it is recommended to wrap it with
electrical tape (sold separately).
□
After all fixtures are installed, turn on the transformer.
Item #1007 893 193
Model#
LWP-P1BR3000KA2
D - Wire Connector
(Fig 6)
(Fig 6)
(Fig 6)
(Fig 6)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
D
