HAMPTON BAY AO1501L-2/BR Use And Care Manual

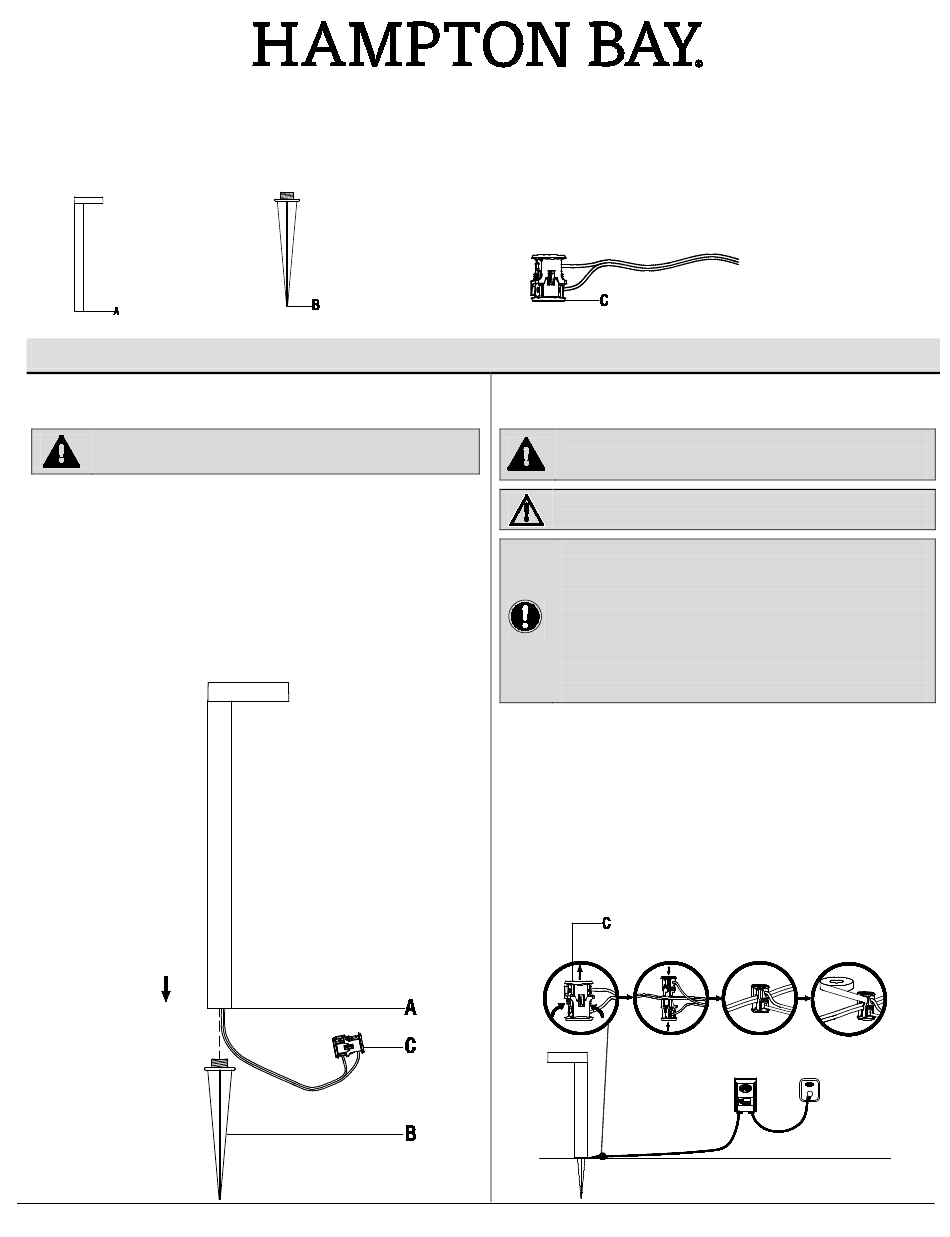

PACKAGE CONTENTS
A – Lamp Body x1
Assembly and Installation
1
Attaching and installing the light
WARNING: Never use a hammer to insert the light into the ground.
Insert the fixture wire on the wire connector (C) into the groove located
□
on the top of the ground stake (B).
Screw the ground stake (B) into the lamp body (A). Ensure the fixture
□
wire on the wire connector (C) stays in the center of the groove of the
ground stake (B) to avoid damage to the fixture wire.
Prepare a hole in the installation location. Use a tool such as a
□
screwdriver to prepare the installation hole to ensure that the hole is
not larger than the ground stake (B).
Install the ground stake (B) in the ground by pushing on the lamp body
□
(A).
B – Ground Stake (6.5 in.) x1
LED LOW VOLTAGE PATH LIGHT
C – Wire Connector (with 12 in. wire attached to lamp body) x1
2
Connecting the wires
WARNING: The wire connector (C) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch
the metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16
AWG type underground low Energy Circuit Cable.
IMPORTANT:
Protect the wiring by routing it in close proximity to the light
□
fitting, or next to a building structure such as a house or a
deck.
The landscape wire and connector can also be hidden under
□
stone or buried under grass at a maximum depth of 6 in. (15.24
cm).
Do not install the fixture within 10 ft. of a pool, spa, or fountain.
□
Do not submerge the fixture in water.
□
Place the wire connector (C) on opposite sides of the low voltage
□
cable (not included) from the transformer (not included) where the
fixture will be located.
Align and fit the main low voltage cable vertically to the slot of the
□
wire connector (C).
Press the wire connector (C) together until it is locked around the
□
main low voltage cable. The pre-set prongs will pierce the cable
insulation and establish contact with the electrical wire inside.
Once the wire connector (C) is in place, it is recommended to
□
wrap it with electrical tape (not included).
After all fixtures are installed, turn on the transformer.
□
1
Item #1008 454 051
Model # JAO1501L-2/BR
Item #1008 454 055
Model # JAO1501L-2/CP
Item #1008 454 049
Model # JAO1501L-2/AL
Use and Care Guide
