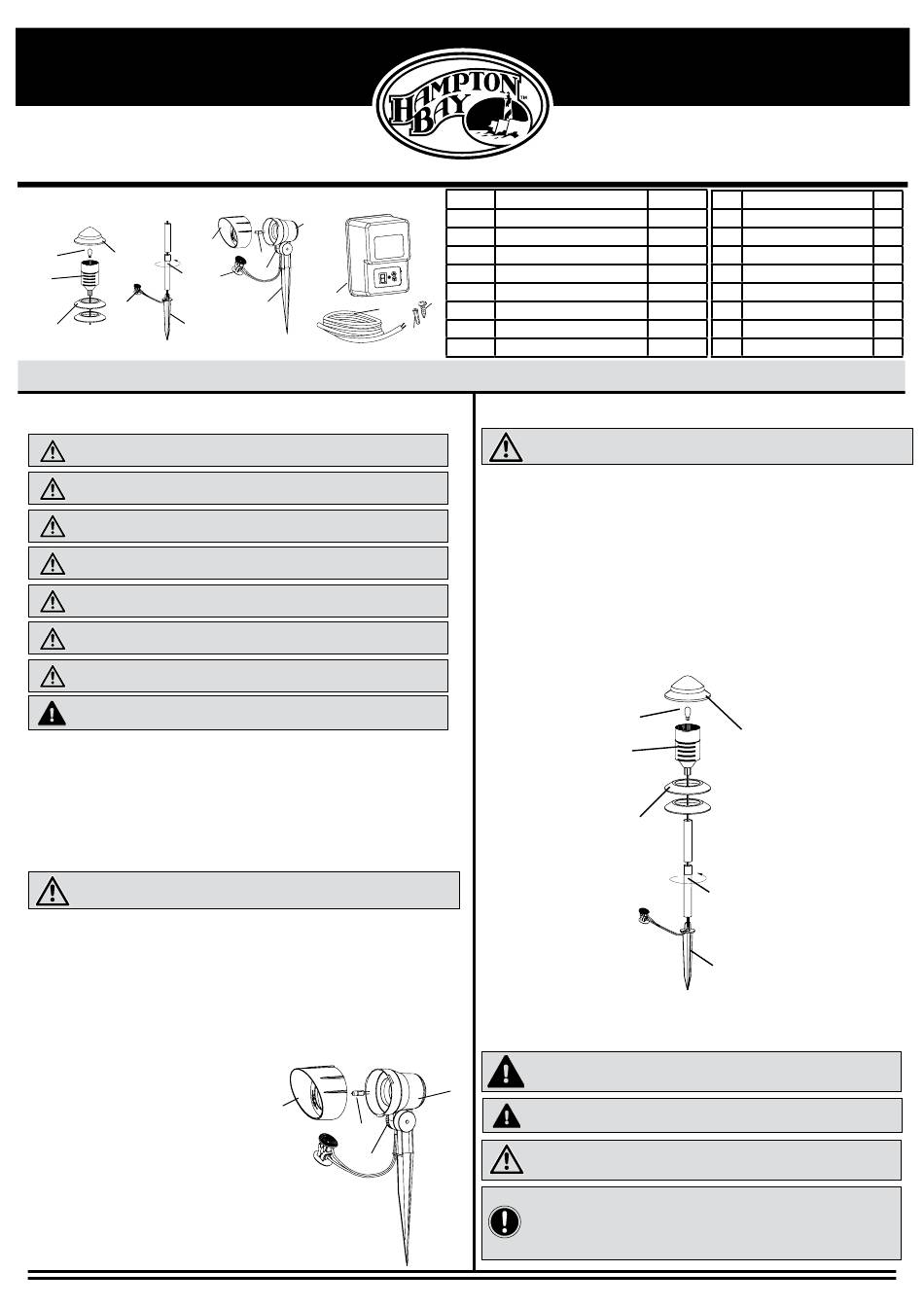

HAMPTON BAY HD28905 Use And Care Manual

Please read and save these instructions
PACKAGE CONTENTS
G
H
K
I
L
J M
Assembly and Installation
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
CAUTION: Safe for outdoor operation
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS:
WARNING: Turn off/unplug and allow to cool before replacing lamp.
WARNING: Lamp gets HOT quickly! Contact only switch/plug when turning on.
Do not touch hot lens, guard or enclosure.
WARNING: Keep the lamp away from materials that may burn.
WARNING: Do not touch the lamp at any time. Use a soft cloth. Oil from skin may
damage the lamp.
WARNING: Do not operate the luminaire fitting with a missing or damaged lens
or bulb protector.
WARNING: Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 15V,
300W per secondary.
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY. THE DEVICE IS
ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE
SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR LOCAL
INSPECTION AUTHORITIES HAVING JURISDICTION.
PATHLIGHT IS UL LISTED UNDER MODEL # GL22784
FLOODLIGHT IS UL LISTED UNDER MODEL # U201166
1
Attaching and installing the floodlight
WARNING: Never push the fixture into the ground by the lamp body (C) or use a
hammer to insert the spike (F) into the ground.
□ Carefully remove the fixture from its protective packaging.
□ Remove the lens cover (A) by turning counterclockwise.
□ Do not remove the lens from the lens cover.
□
Insert the bulb (B) into the bulb socket. Use a soft cloth, as oil from
skin may damage the lamp bulb.
□
Replace the lens cover (A) on the body (C) by turning clockwise.
□ Adjust the fixture's angle by loosening the adjustment screw (D)
and retightening it.
□ Ensure the lens points up and
never towards the ground.
C
A
B
D
E
N
F
A
B
D
LOW VOLTAGE PATHLIGHT AND FLOODLIGHT KIT
Part Description
A Lens cover
B 20W Halogen T3 Bi-Pin Bulb
C Body
D Adjustment screw
E Connector
Q
O
F Spike
G Top cover
P
H 7W T5 WedgeBulb
2
Attaching and installing the pathlight
WARNING: Never push the fixture into the ground by the lamp body (G) or use a
hammer to insert the spike (M) into the ground.
□
Carefully remove the fixture from its protective packaging.
□ Pass the wire through the spike (M).
□
Fix both post sections (K) together by turning clockwise.
□ Attach the spike by pushing it into the lower post section.
□
Insert the bulb (H) into the bulb socket.
□ Attach the body by pushing the lens (I) onto the post.
□
Put the metal disks (J) on the lens by guiding them between the
ribs on the lens and turn clockwise to secure them.
□
Attach the cover (G) to the lens by turning clockwise.
3
Connecting the wires
WARNING: The wire connector (E) & (L) contacts have sharp edges for piercing
the main low voltage cable. To avoid injury, do not touch the metal contacts.
C
WARNING: Risk of Electric Shock. Install all luminaires 10 ft. (3.05 m) or more
from a pool, spa or fountain.
CAUTION: The wire from the low voltage power unit shall be 12-16 AWG type
underground low Energy Circuit Cable or SPT2W.
IMPORTANT:
• Protect the wiring by routing it in close proximity to the light fitting, or next to a
building structure such as a house or deck.
• The landscape wire and connector can also be hidden under stone or buried
under grass at a maximum depth of 6" (15.24 cm).
• Do not submerge fixture in water.
Item #1001 492 702
Model #HD28905
Use and Care Guide
Quantity
I Lens
2 J Tier
2 K Post
2 L Connector
2 M Spike
2 N 120W Transformer
2 O Wire AWG14 SPT2W 75'
6 P Plastic anchor
6 Q Screw
H
G
I
J
K
M
6
12
12
6
6
1
1
1
1
