HAMPTON BAY JPV150L-2 Use And Care Manual

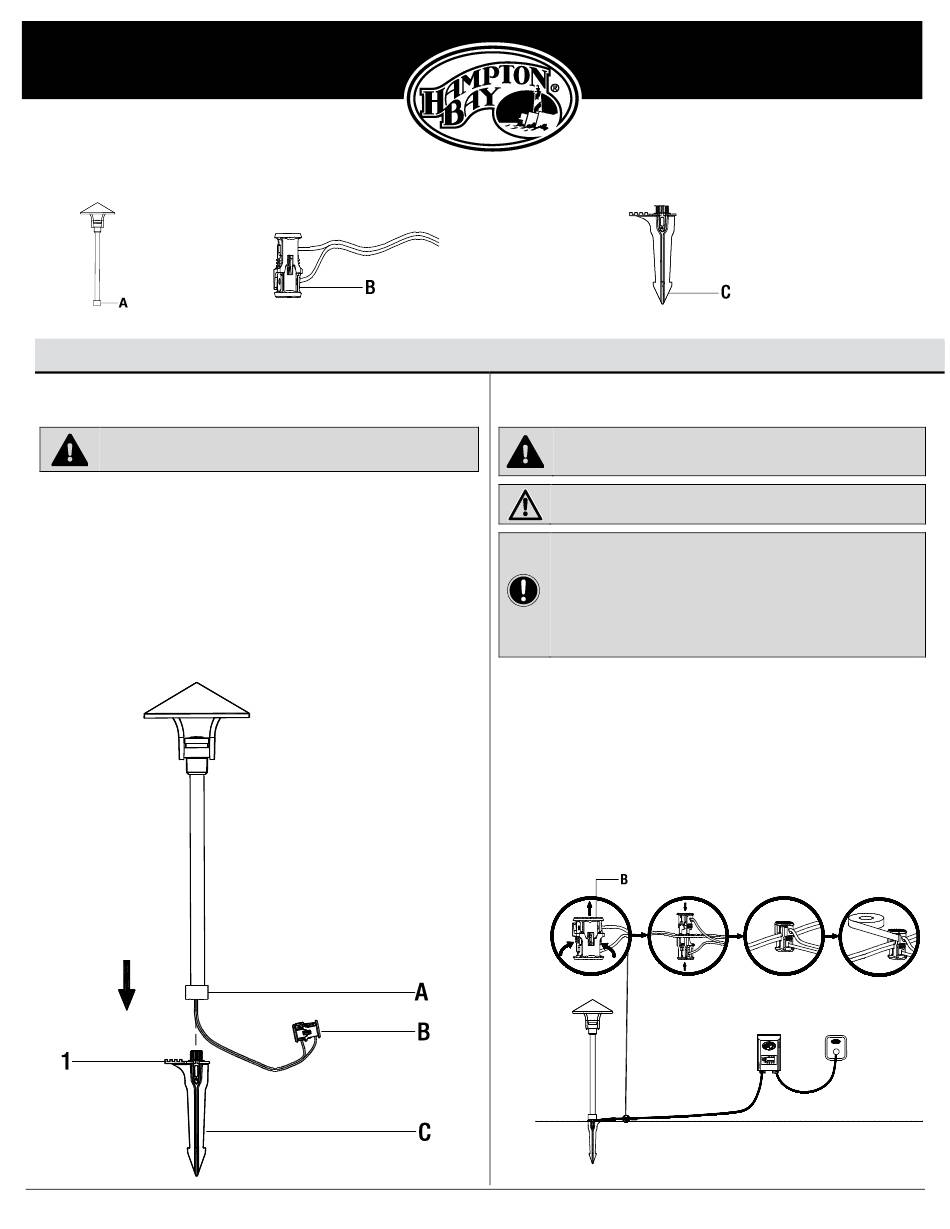

PACKAGE CONTENTS
A – Lamp Body x1 B –Wire Connector (with 12 in. wire attached to lamp body) x1
Assembly and Installation
1
Attaching and installing the path light
WARNING: Never push the light into the ground by the lamp body (A) or
use a hammer to insert the ground stake (C) into the ground.
Insert the fixture wire on the wire connector (B) into the groove located on
□
the top of the ground stake (C).
Ensure the fixture wire on the wire connector (B) stays in the center of the
□
groove to avoid damage to the fixture wire. Screw the ground stake (C) into
the lamp body (A).
Prepare a hole in the installation location. Use a tool such as a screwdriver
□
(not included) to prepare the installation hole to ensure the hole is not
larger than the ground stake (C).
Install the path light in the ground by pushing on the foot step (1) on the
□
ground stake (C). Do not push on the lamp body (A).

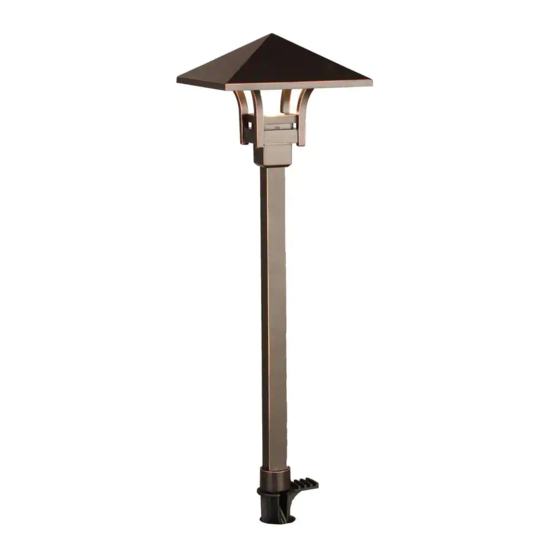

LED LOW VOLTAGE PATH LIGHT
C –Ground Stake (6.535 in.) x1
2
Connecting the wires
WARNING: The wire connector (B) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch the
metal contacts.
CAUTION: The wire from low voltage power unit should be 12-16 AWG
type underground low Energy Circuit Cable.
IMPORTANT:
Protect the wiring by routing it in close proximity to the light fitting,
□
or next to a building structure such as a house or a deck.
The landscape wire and connector can also be hidden under stone
□
or buried under grass at a maximum depth of 6 in. (15.24 cm).
Do not install the fixture within 10 ft. of a pool, spa, or fountain.
□
Do not submerge the fixture in water.
□
Place the wire connector (B) on opposite sides of the low voltage cable
□
(not included) from the transformer (not included) where the fixture will
be located.
Align and fit the main low voltage cable vertically to the slot of the wire
□
connector (B).
Press the wire connector (B) together until it is locked around the main
□
low voltage cable. The pre-set prongs will pierce the cable insulation and
establish contact with the electrical wire inside.
Once the wire connector (B) is in place, it is recommended to wrap it with
□
electrical tape (not included).
After all fixtures are installed, turn on the transformer.
□
1
Item #1003 459 695
Model #JPV150L-2/ORB
Use and Care Guide
