RS-232C Control Specification
Category
Document Version
Author(s)
Date
Number of Page
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.

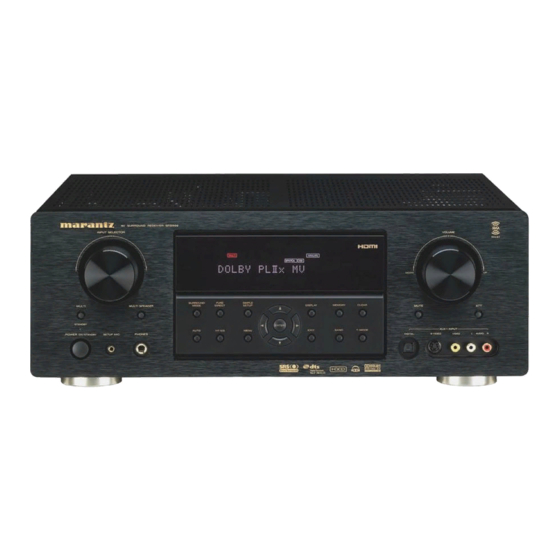

SR5002
:
AV Receiver
:
1.00
:
Marantz America, Inc.
:
2007/10/16
:
21
Marantz America, Inc. 2007
RS-232C Control Specification :
Rev 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR5002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz SR5002

Summary of Contents for Marantz SR5002

  • Page 1 Author(s) Marantz America, Inc. Date 2007/10/16 Number of Page Marantz America, Inc. 2007 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright. All specifications might be subject to change without notice.

  • Page 2: Table Of Contents

    Detailed Description.............................. 5 3-1. Connection format ............................5 3-1-1. Physical connection..........................5 3-1-1-1. Data transmission sequence from Host to Slave ................5 3-1-1-2. Data transmission sequence from Slave to Host ................5 3-2. Transmission data format..........................6 3-2-1. Transmission data format from Host to Slave..................6 3-2-1-1.

  • Page 3: Introduction

    Document Version [1.00] 1. Introduction 1-1. Purpose This document is told Commands, replays and Layers of Host Controller Interface based on a reference specification document (Host Controller Interface Specification ver. 0.2). 1-2. Scope This document would be using by software or hardware engineers for production of the product.

  • Page 4: Global Description

    SR5002 Page: 4 / 21 Document Version [1.00] 2. Global Description 2-1. Overview A Host controller can control or watch out the product as a Slave very easily via the communication cable. 2-2. Block Diagram HOST SLAVE RS232C cable (Straight)

  • Page 5: Detailed Description

    Slave (The product) → ← 1. Host starts a data transmission from TxD. 2. Host performs the data transmission of the number of required bytes, and ends a transmission. 3-1-1-2. Data transmission sequence from Slave to Host Host (Controller) Slave (The product) →...

  • Page 6: Transmission Data Format

    Start character : ’@’, : 06h, End character (CR) : 0Dh Start NAK is a reply data from Slave when Slave got an incorrect Command data, Status request data or some other data from Host. Start character : ’@’, : 15h,...

  • Page 7: The Transaction Sequences And The Regulations

    * The status of layer 1 are assigned most kindly status to Host. (The statuses of layer 2 are assigned kindly status, the statuses of layer 3 are not so need status to Host and the statuses of layer 4 are probably no wished statuses.)

  • Page 8: Examples Of The Handshaking Flowchart

    ! A u to s t a tu s fe e d b a c k The product can reply ACK instead of related status, if the product can not send the related status immediatly. 3-3-5-2. Examples of handshaking error...

  • Page 9: Recommendations Of Command, Status And Layer Definition

    All Commands and Statuses are defined same chharacter size except ACK/NAK on the product. ( Recommended character length : 3~6 characters ) It permits attaching 0x0A character to a reply characters from the product. In this case, must suppose that the object is followed altogether.
  • Page 10 RS-232C Control Specification SR5002 Page: 10 / 21 Document Version [1.00] Command Reply from Slave CD-R “SRC:D” TAPE “SRC:E” TUNER “SRC:F” “SRC:G” “SRC:H” “SRC:J” TOGGLE “71C:0” Multi Channel “71C:1”(OFF), “71C:1” (7.1 Channel Input) “71C:2”(ON) “71C:2” ENABLE “HAM:1” “HAM:1”(ENABLE), HDMI AUDIO MODE “HAM:2”(THROUGH)

  • Page 11: Display And Menu Contents

    RS-232C Control Specification SR5002 Page: 11 / 21 Document Version [1.00] 5-1-2. Display and Menu contents Command Reply from Slave “SLP:0xxx” VALUE “SLP:010~120” ( ON ), SLEEP (xx=”000”~”120”) “SLP:000” (OFF) “SLP:1” TOGGLE “MNU:0” OFF(EXIT) “MNU:1” “MNU:1”(non-Menu mode), MENU “MNU:2”(on Menu mode) “MNU:2”...
  • Page 12 (+PL2 MUSIC) “DHM:3” Command Reply from Slave 結果 “LIP:0xxx“ (xxx = value) “LIP:xxx” xxx = 000 (OFF), VALUE (xxx = Lip Sync. value) xxx = 010,020,...190,200 Lip Sync. xxx = 000 (OFF), (ms) xxx = 010,020,...190.200 “LIP:1” DOWN “LIP:2“...

  • Page 13: Tuner Contents

    5-1-4. Tuner contents Command Reply from Slave VALUE “TFQ:0xxxxx“ (xxxxx = freq.) “TFQ:xxxxx” (xxxxx = Frequency) “TFQ:1“ if ( xxxxx < 00256 ) band = XM; DOWN “TFQ:2“ else if (xxxxx < 02000) band=AM; Auto-UP “TFQ:3“ else band=FM; (ex.“08750” = FM87.50MHz)

  • Page 14: Multi Room Contents

    “MSM:1” AUDIO MUTE “MSM:2” “MSM:2” “MTF:0xxxxx“ (xxxxx “MTF:xxxxx” VALUE = freq.) (xxxxx = Frequency) if ( xxxxx < 00256 ) band = XM; “MTF:1“ DOWN “MTF:2“ else if (xxxxx < 02000) band=AM; else band=FM; Auto-UP “MTF:3“ Multi Room (ex.“08750” = FM87.50MHz)

  • Page 15: Specific Commands

    Reply from Slave “AST:x” (x = ‘0’ ~ ’F’) Auto status feedback bit 3 : Layer 4 ( 1 = Enable, 0 = Disable) same as bit 2 : Layer 3 ( 1 = Enable, 0 = Disable) command define...

  • Page 16: Status Request And Status Answer List

    RS-232C Control Specification SR5002 Page: 16 / 21 Document Version [1.00] 5-3. Status request and Status answer list 5-3-1. Normal Status request and Status (answer and feedback) list Status request Status answer and feedback “PWR:1” POWER “PWR:?” “PWR:2” “ATT:1” AUDIO ATT “ATT:?”...
  • Page 17 Surr. Mode “SUR:?” “THX:x” (see Command list) OFF (x,y = don’t care) “TTO:1xy” Test Tone “TTO:?” ON (x = auto/manual, y = ch. ) “TTO:2xy” Lip Sync. : xxx = 000 (OFF) Lip Sync. “LIP:?” “LIP:xxx” xxx =010 ~200 (ms) BYPASS “DHM:0”...
  • Page 18 Document Version [1.00] Status request Status answer and feedback “CHN:********” XM ChName “CHN:?” Channel Name *=10Byte If data is shorter than 10, Space is padded. “ARN:********” XM ArtistName “ARN:?” Artist Name *=16Byte If data is shorter than 16, Space is padded.
  • Page 19 “MSC:?” (v ,a= ‘0’ – ‘F’) “MSC:va” SOURCE Select (v = video, a = audio.) Multi Room SLEEP “MSL:?” Sleep time min : xx = ‘00’ ~ ‘99’ “MSL:xx” Status request Status answer and feedback Multi Room “MSP:1” “MSP:?” SPEAKER “MSP:2”...

  • Page 20: Layer Of The Statuses

    RS-232C Control Specification SR5002 Page: 20 / 21 Document Version [1.00] 5-3-2. Layer of the statuses Status Layer POWER “PWR:” AUDIO ATT “ATT:” AUDIO MUTE “AMT:” VIDEO MUTE “VMT:” VOLUME “VOL:” TONE BASS “TOB:” TONE TREBLE “TOT:” SOURCE Select “SRC:”...

  • Page 21: Revision History

    RS-232C Control Specification SR5002 Page: 21 / 21 Document Version [1.00] Revision history Rev. Date Owner Change description 1.0 10/16/2007 Marantz America, Inc. First release Company Restricted...
