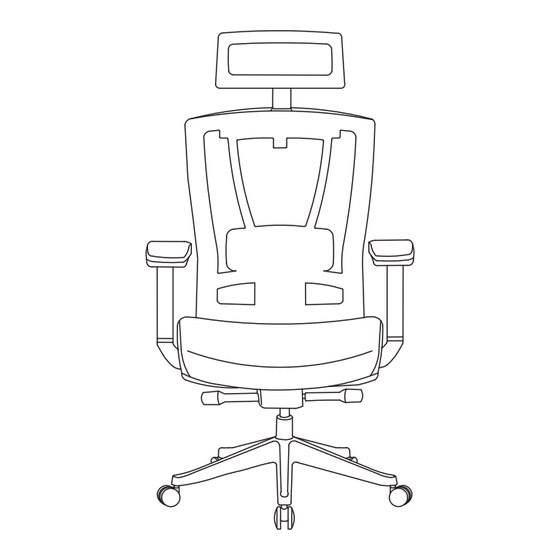

- Page 1 USER MANUAL CloudMesh Chair...
- Page 2 WARNING To ensure your safety, please read the instructions carefully before you begin. Failure to follow instructions may result in serious injury or damage to product. • Please note, this product is designed for seating only. Do not stand on it or use it as a ladder. •...
-
Page 3: Front View
FRONT VIEW BACK VIEW SIDE VIEW... -
Page 4: Parts & Accessories
PARTS ACCESSORIES Backrest Headrest Seatbase Wheels Gas Lift Piston Starbase Armrest Mechanism SCREW ACCESSORIES Bolt (M8*25mm) Bolt (M6*22mm) Bolt (M6*35mm) Bolt (M8*60mm) Washer Washer Spring Lock Screwdriver (Ø6*14*1.5mm) (Ø8*17*1.5mm) Washer (M8) - Page 5 STEP 1 STEP 2 Attach the wheels to the starbase. Insert the gas lift piston into the starbase. STEP 3 STEP 4 Tighten the aligned bolts and washers into Align and tighten the bolts, spring lock holes on the base using a screwdriver. washers and washers into holes on the base using a screwdriver.
- Page 6 STEP 5 STEP 6 Place two bolts and washers in to the chair Place three screws and washers at the and tighten. points shown below to bind the chair back to the seat. STEP 7 STEP 8 Attach the seat to the gas lift piston. Attach the headrest to backrest.
- Page 7 Function Guide Rotate the handle clockwise to increase the back tilt tension. To decrease the back tilt tension, rotate the handle counterclockwise. Pull the handle up to adjust seat height.
- Page 8 Function Guide This handle controls backtilt angle. Rotate the handle to lock or unlock backtilt. 60mm adjustable seat depth Pulling the handle up allows the seat cushion to move forward up to 60mm. Release the handle, the seat will be locked. A is locked position B is unlocked position This lever act as an additional backrest...
- Page 9 Function Guide Adjust the headrest height within a 70mm range Adjust the headrest angle up to 45 degrees Lumbar support can Press the tabs under the be moved up and down armrests to adjust them up and down The armrest can be The armrest can be moved back and forth moved in and out...
- Page 10 Function Guide Seat height Seat depth adjustment adjustment Backrest tilt tension Backrest tilt angle lock adjustment...
