MotionGrey Ergo 2 Series Assembly Instruction

MotionGrey Ergo 2 Series Assembly Instruction

55" x 24"

Advertisement

Quick Links

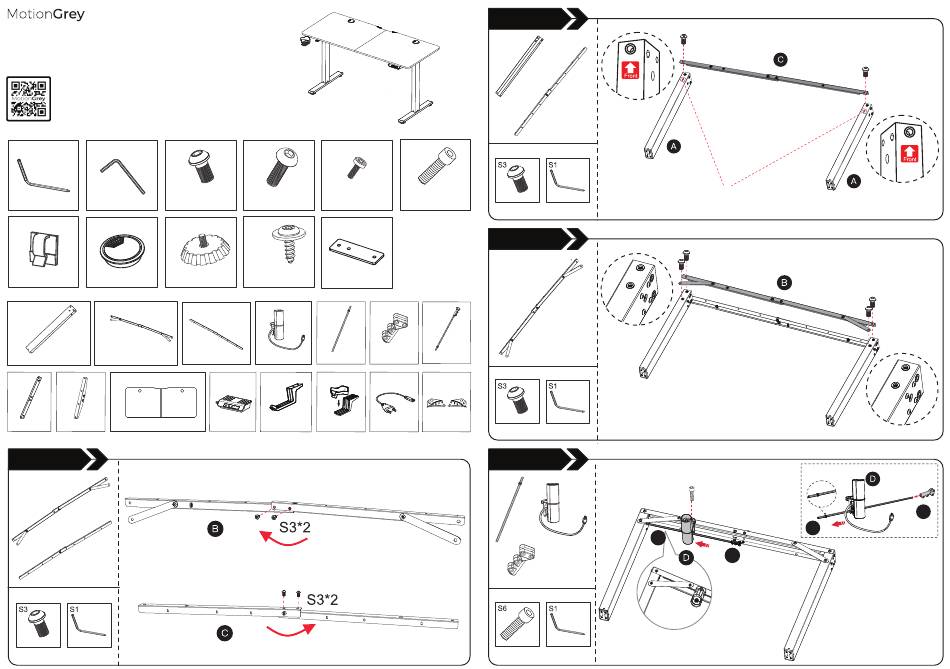

Assembly Instruction

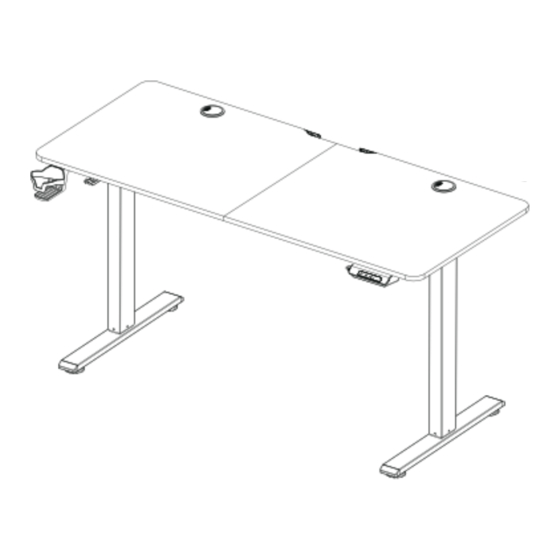

Ergo 2 Series 55" x 24"
Scan to access the step-by-step
installation instructions and video.
S1
S2
S3
Bracket Screw
x1
6mm Allen Key
x1
3mm Allen Key
(M8)
S7
S8
S9
Wire Clip
x3
Grommet
x2
Footer
A
B
C
Central Bracket with Metal
Frame
x2
x1
Central Bracket
Frame Connector
H
I
J
x2
x2
Table Top
x1
Foot Base
Side Bracket

STEP 1

B
C
x4
x1
S4
S5
Frame Screw
Metal Rod Connector
x14
x2
x2
(M4)
Screw (M5)
S10
S11
Wood Screw
Table Top
x4
x38
x2
(M4)
Connector
D
E
x1
Motor
x1
x1
Metal Rod #1
K
L
M
Headphone
x1
x1
Keypad
x1
Hook
Cup Holder

STEP 2

A*2
S6
x2
Foot Base & Motor
x9
Screw (M8)

STEP 3

F
G
B
Metal Rod
Connector
x1
x1
Metal Rod #2
N
O
x4
x1
x1
Power Cord
Cable Clip

STEP 4

E
D
F
x1
S3x2
C
x1
Make sure the Front labels are in the same direction.
S3x2
x1
S6
E
F
x1
S3x2
F
E
