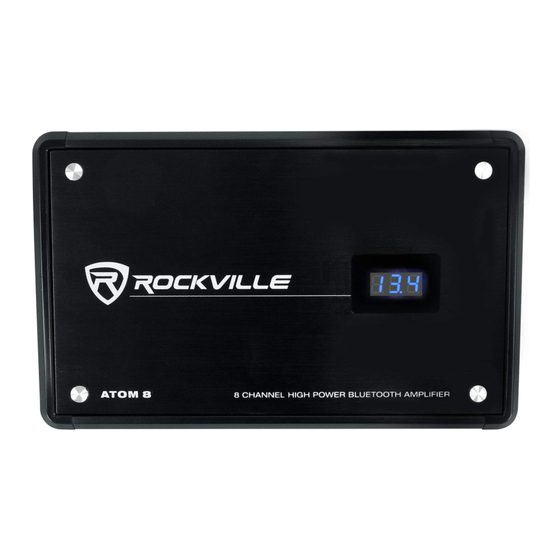

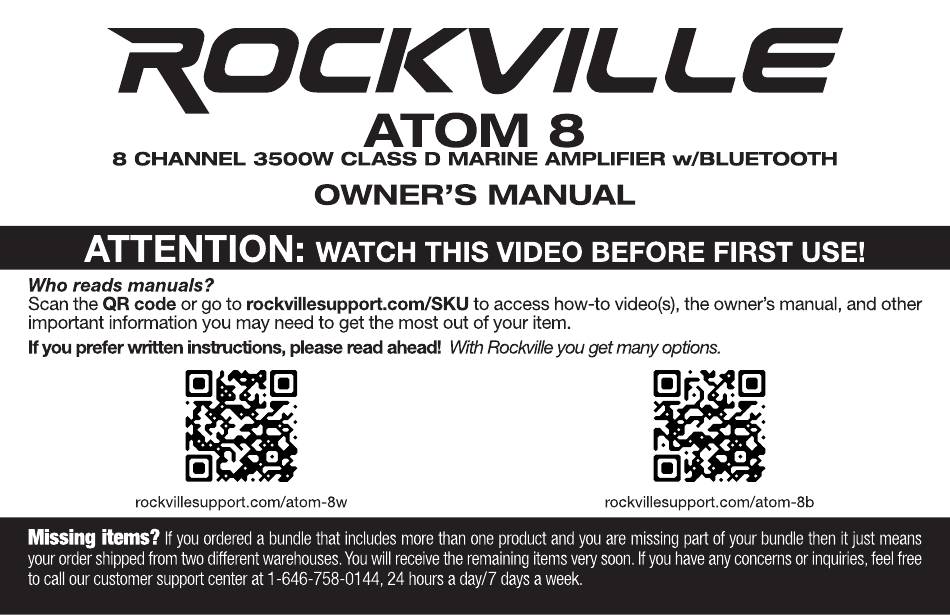

Rockville ATOM 8 Owner's Manual

8 channel 3500w class d marine amplifier w/bluetooth
Hide thumbs Also See for ATOM 8:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATOM 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville ATOM 8

Summary of Contents for Rockville ATOM 8

  • Page 3: Important Safety Instructions

    We have spared no expense in designing these amplifiers, creating the most rugged, reliable, powerful and best performing amplifiers. In fact we are so sure of the quality, that we backup every ATOM 8 amplifier with one year warranty which exemplifies our commitment to the end user. (See enclosed warranty vesseld for details.)

  • Page 4: Installation Basics

    Mounting The Amplifier The ATOM 8 amplifier features four mounting feet which must be attached to the bottom of the amp via predrilled holes (see diagram below). Choose a convenient mounting location with unobstructed airflow. Lay down the amplifier and mark the location of the mounting holes. Remove the amplifier and drill pilot holes for the screws. Place the amplifier and secure it to the mounting surface using the supplied screws.

  • Page 5: House Battery

    Wiring 1. Make sure to disconnect the NEGATIVE (-) terminal from your vessel's house battery. 2. Attach an 8-gauge or heavier wire to the amplifier screw terminal marked GND. Connect the other end to the house battery's NEGATIVE(-) tenninal. The connection should be as close to the amp as possible (20 feet or less).
  • Page 6 AATTENTION A FOR BEST PERFORMANCE BE SURE TO STRIP YOUR WIRE, AT MINIMUM, AS PER THE DIAGRAM BELOW. POWER/GROUNO/REMOTE CABLE GAUGE POWER: 4AWG GROUND: 4AWG REMOTE: 20AWG TERMINAL DIAMETER: POWER/GROUND = <DO.33in (8.5MM), REM = <DO.15in (4MM), SPEAKER = <DOj5in (4MM) TERMINAL DEPTH: POWER/GROUND= O.76in (19.5MM), REM= O.66in (17MM), SPEAKER= O.61in (15.5MM) TIGHTEN SET SCREWS TO , ·...

  • Page 7: Adjusting The System

    Using the Electronic Crossovers Each set of channels (1 - 4 & 5 - 8) on the ATOM 8 amp has its own fully adjustable 12dB per octave crossover with differential circuitry. This makes the ATOM 8 ideal for subwoofers (sealed and vented), full range speakers, midrange speakers, and even tweeters.

  • Page 11: Output Configurations

    Output Configurations Four or Eight Full Range Speakers with 1\No or Four Subwoofers OUTPUT INPUT Connect four full range speakers on channels 1 &3 and 2&4 being vesseleful not to load =-.:: CH1&3 CH5&7 :i==t =-=-=<. iimm= any single channel below 2 ohms stereo. Set the corresponding crossover mode switch to �...

  • Page 12: Front Speakers

    Eight or Sixteen Full Range Speakers Install any combination of speakers independently on all 8 channels being vesseleful not to load any single channel below 2 ohm stereo. Alternately, you can connect up to two speakers per channel for a total of sixteen full range speakers .For typical 6"...
  • Page 13 Four Subwoofers Connect four woofers, one each bridged, to ch1/ch2, ch3/ch4, ch5/ch6 and ch7/ch8. Make sure the load does not go below 4 ohms. Set both crossover mode switches to LPF. INPUT MODE SWITCH IN 8CH POSITION OUTPUT INPUT CH1&3 CH5&7 �...
  • Page 14 Features Bluetooth The ATOM 8 provides Bluetooth connectivity via an auto-paring feature. See page 15 for the detailed instructions. Please note: when Bluetooth mode is active, RCA input is disabled. Bass Equalization Circuitry A narrow "Q" peaking equalization circuit is included in the amplifiers. The equalization system is preset at 45Hz. The equalizer control allows you to add up to 12dB of bass boost. Utilize the bass equalizer to tailor your bass response to your systems needs.
  • Page 15 Battery Voltage ATOM 8 amplifiers feature a convenient LED readout which displays the current voltage input while the amp is in use. The amp will go into protect mode when the voltage goes below 10 volts or above 16 volts.

  • Page 16: Features & Specifications

    Features/Specifications • Dyno Certified RMS Power Output • High-Speed MOSFET Power Supply 2 Ohm: 110 Watts x 8 Channels <1 % THD+N • Digital Class D Audio Topology 4 Ohm: 70 Watts x 8 Channels <1 % THD+N • Studio-Grade Output Stage Integrated Circuit 4 Ohm Bridged: 220 Watts x 4 Channels <1 % THD+N •...
  • Page 17 Woofer Wiring Guide Please note that the minimum impedance load for ATOM 8 amplifiers is 2 ohm stereo and 4 ohm mono bridged. Lower impedance loads will cause overheating and may damage the amplifiers. Do not mix different impedance speakers in series and /or parallel combinations, as unequal power sharing and acoustic outputs will result.
  • Page 18 DVC configurations ONE 2!1 DVC WOOFER = 4!1 LOAD TWO 2!1 DVC WOOFERS 2!1 LOAD THREE 2!l DVC WOOFERS 3!1 LOAD ONE 4!1 DVC WOOFER 2!1 LOAD TWO 4!1 DVC WOOFERS = 4!1 LOAD THREE 4!1 DVC WOOFERS = 2.67!1 LOAD FOUR 2!l DVC WOOFERS = 4!1 LOAD FOUR 4!1 DVC WOOFERS = 2!1 LOAD...

  • Page 19: Troubleshooting

    Troubleshooting PROBLEM CAUSE/SOLUTION 1. Short-circuit protection - Caused by the power or ground wire not being fastened tightly. Amp goes into protect mode Disconnect the speakers from the amp. If the amp is still in protect mode, you now know the issue is somewhere with the power, ground, or remote wire.

  • Page 26: Federal Communications Commission Compliance Information

    Inwood, NY 11096 Hereby declares that the product Rockville ATOM 8 8 channel amp complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
