Summary of Contents for Comunello AF 960

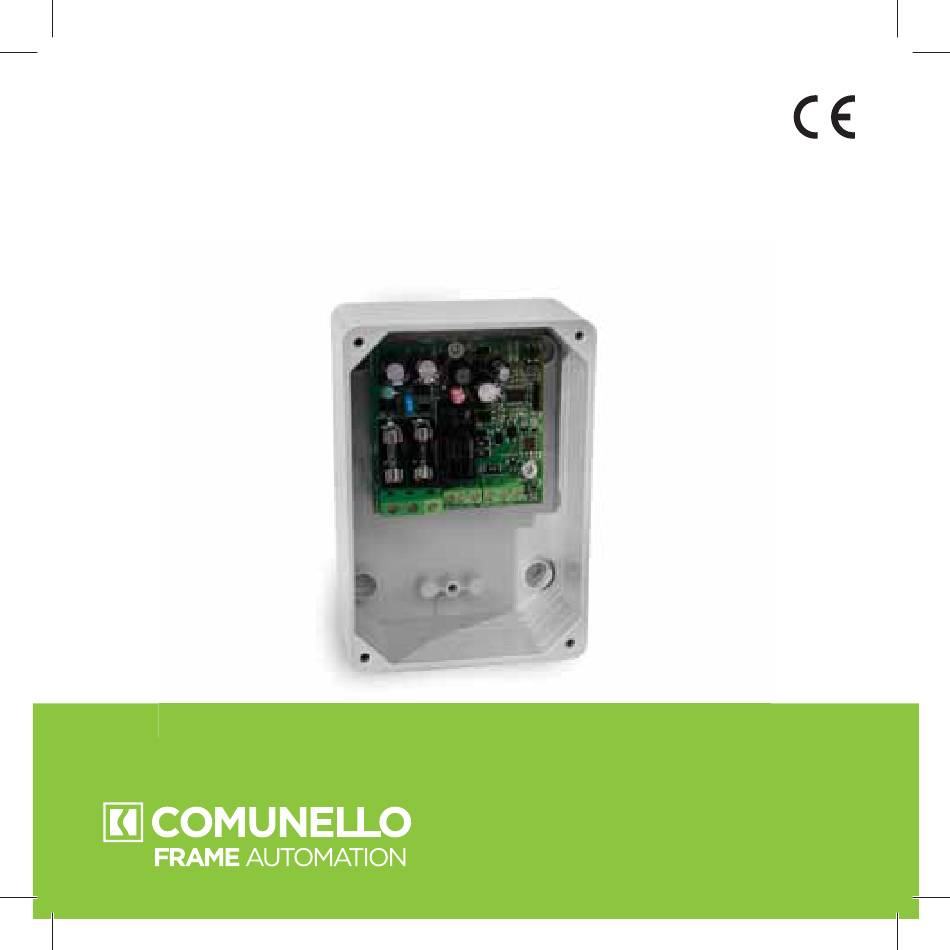

  • Page 1 Manual de utilizare...
  • Page 2: Safety Indication

    “Technical Data”) and to the installation instructions. Improper use or incorrect operation, fitting or assembly can damage the system as well as cause injury to people and damage to property. The assembling instructions are available on the official web site http://www.comunello.com 2. SAFETY This installation manual is written exclusively for competent professional personnel.
  • Page 3 and overload protection. When required to do so, connect to an efficient earthing/ground system fitted according to the safety regulations in force in the country where the actuator is being installed. Before carrying out any operation (installation, maintenance or repair), isolate the electrical supply before working on the equipment. To ensure complete isolation from the mains, the installation of an homologated double-pole switch is recommended.
  • Page 4 If it is necessary to use a synchronized system, request the actuator models of the WNET range. • Must be used with original products of the manufacturer; the use with other devices may cause malfunctions or damage to people and property. •...
  • Page 5: Technical Data

    4. TECHNICAL DATA Supply voltage (Vin) 230V~(AC) 50 Hz Output voltage to motors (Vout) Max. output current 2,50 A + 2,50 A Electrical protection 2 fusibili T 2,50 A Duty type Continuous Double safety insulation Operating temperature -10° + 60°C Protection degree IP55 Dimensions...
  • Page 6 1. Select the most suitable location where to place the control unit, if possible close to the actuators to be controlled, to avoid extending the control cable and actuators. 2. For the passage of cables, drill the lower part of the box. It is advisable to use the cable glands. 3.
  • Page 7: Electrical Connection

    7. ELECTRICAL CONNECTIONS To simplify the wiring, we recommend removing the board from the case. 7.1 ELECTRICAL CONNECTION The electrical connection must be carried out in accordance with safety standards. >1 m M1 OP M1 CL M1 N M2 OP M2 CL M2 N L OP L CL 1 3 2 1...
  • Page 8: Operating Principle

    ELECTRICAL CONNECTION TABLE: CN1 (actuator control) L-OP = OPEN phase L-CL = CLOSE phase N = Neutral CN2 (motor 1 output) M1-OP = motor 1 OPEN output M1-CL = motor 1 CLOSE output M1-N = Common (neutral) CN3 (motor 2 output) M2-OP = motor 2 OPEN output M2-CL = motor 2 CLOSE output M2-N = Common (neutral)
  • Page 9 8. TABLE SETTING THRESHOLDS SENSITIVITY M1 OP M1 CL M1 N M2 OP M2 CL M2 N L OP L CL Ref. 1 - Dip - switches for setting 4 levels of sensitivity threshold to the malfunction. MAX. SENSITIVITY MEDIUM SENSITIVITY 1 MEDIUM SENSITIVITY 2 MINIMUM SENSITIVITY NOTE: With L30 motor it is recommended to set the dip-switch with MEDIUM 1 or MAXIMUM SENSITIVITY level.
  • Page 10 9. OPERATION OF LEDS The LEDs on the board (LED1 and LED2) show the power supply status of the related motor, according to the following rule: LED off: No power supply (board de-energized, motor stopped) LED on steady: Power presence LED on flashing: Securing the actuator and failure condition of the other actuator.
  • Page 11 Unless otherwise agreed, the validity of the Conventional Warranty is 36 (thirty-six) months from the production date, which can be found on the products. The Warranty shall be effective and binding on COMUNELLO only if the product has been correctly installed and maintained in accordance with the installation and safety rules set out in the documentation provided by COMUNELLO or otherwise available on the website http://www.comunello.com/...
  • Page 12 L I F E M A D E E A S Y FRATELLI COMUNELLO S.P.A. AUTOMATION DIVISION Via Cassola, 64 - C.P. 79 36027 Rosà, Vicenza, Italy Tel. +39 0424 585111 Fax +39 0424 533417 info@comunello.it www.comunello.com Fratelli Comunello S.p.A.
