EB 2536 EN
Translation of original instructions

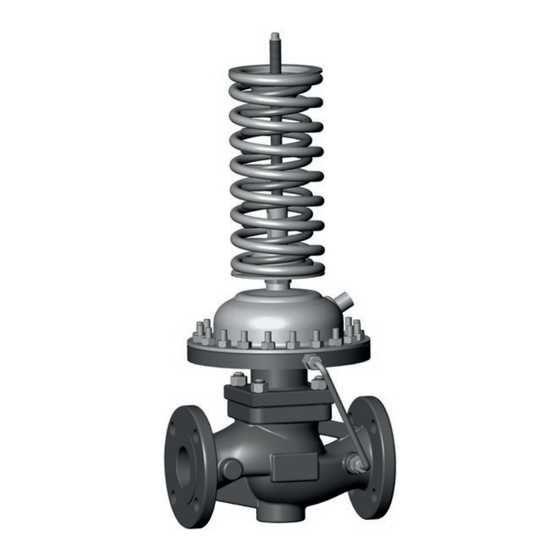

Type 2375 Universal Excess Pressure Valve
Edition May 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2375 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samson 2375

Summary of Contents for Samson 2375

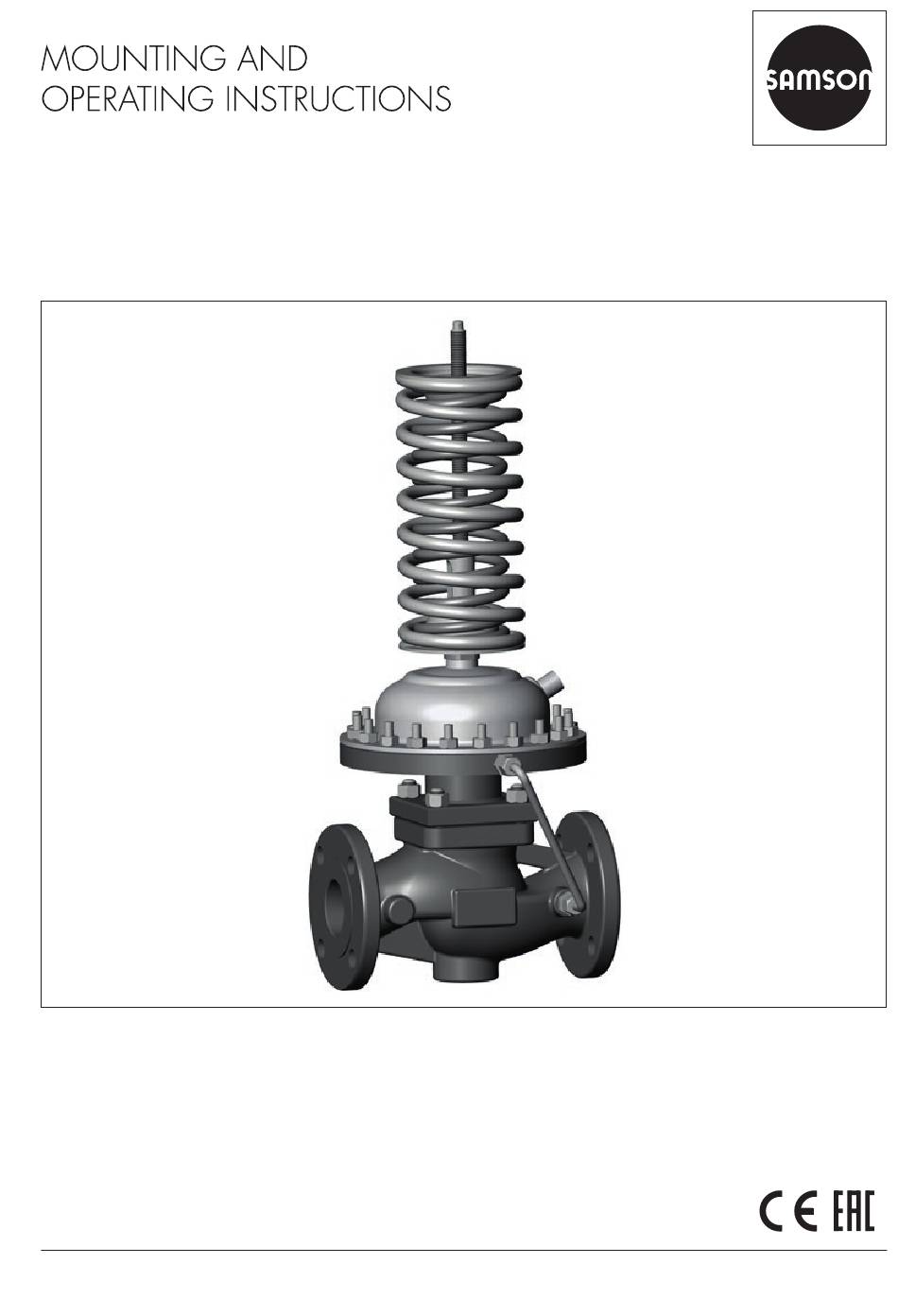

  • Page 1 EB 2536 EN Translation of original instructions Type 2375 Universal Excess Pressure Valve Edition May 2023...
  • Page 2 Note on these mounting and operating instructions These mounting and operating instructions assist you in mounting and operating the device safely. The instructions are binding for handling SAMSON devices. The images shown in these instructions are for illustration purposes only. The actual product may vary.

  • Page 3: Table Of Contents

    Contents Safety instructions and measures ..............5 Notes on possible severe personal injury ............8 Notes on possible personal injury ..............8 Notes on possible property damage ..............9 Markings on the device ................11 2.1 Material identification number ..............11 Design and principle of operation ..............12 Technical data .....................12 Measures for preparation ................17 Unpacking ....................17 Transporting and lifting ................17...
  • Page 4 Contents Annex......................33 10.1 After-sales service ..................33 Certificates ....................33 EB 2536 EN...

  • Page 5: Safety Instructions And Measures

    Therefore, operators must ensure that the devices are only used in operating conditions that meet the specifications used for sizing the devices at the ordering stage. In case operators intend to use the devices in applications or conditions other than those specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors. Î Refer to the technical data and nameplate for limits and fields of application as well as possible uses.
  • Page 6 Components of the device that differ to those used for the standard version described in this document can be exchanged with other certain SAMSON components. The residual hazards of these components are described in the associated mounting and operating instructions (see documents listed under 'Referenced documentation'). Safety features The Type 2375 Regulator does not have any special safety features. When relieved of pres- sure, the regulator is closed by the force of the set point springs. EB 2536 EN...
  • Page 7 Start-up and shutdown procedures fall within the scope of the operator's duties and, as such, are not part of these mounting and operating instructions. SAMSON is unable to make any statements about these procedures since the operative details (e.g. differential pressures and temperatures) vary in each individual case and are only known to the operator.

  • Page 8: Notes On Possible Severe Personal Injury

    Safety instructions and measures 1.1 Notes on possible severe personal injury DANGER Risk of bursting in pressure equipment. Regulators and pipelines are pressure equipment. Improper opening can lead to regula- tor components bursting. Î Before starting any work on the regulator, depressurize all plant sections affected as well as the regulator. Î Drain the process medium from all the plant sections affected as well as the regula- tor.

  • Page 9: Notes On Possible Property Damage

    Î Wear protective clothing and safety gloves. Damage to health relating to the REACH regulation. If a SAMSON device contains a substance listed as a substance of very high concern on the candidate list of the REACH regulation, this is indicated on the SAMSON delivery note.
  • Page 10 Risk of regulator damage due to the use of unsuitable sealants or lubricants. The sealants and lubricants to be used depend on the regulator material. Unsuitable sealants and lubricants may corrode and damage surfaces. Î Only use sealants and lubricants approved by SAMSON (see section 7.3). Incorrect control due to the formation of ice on the regulator. Medium temperatures below 0 °C may cause ice to form on the regulator, depending on the air humidity.

  • Page 11: Markings On The Device

    Markings on the device 2 Markings on the device Specifications on SAMSON 2009 the regulator flange xxxx Made in Germany Type Max. perm. operating pressure at the actuator p Configuration ID Order number/date coefficient Set point range/spring force Valve size DN Pressure rating PN Perm. differential pressure Δp in bar 10 Perm. temperature in °C 11 Body material Fig. 1: Nameplates 2.1 Material identification...

  • Page 12: Design And Principle Of Operation

    Design and principle of operation 3 Design and principle of oper- 3.1 Technical data ation Process medium and scope of application (see Fig. 2) Type 2375 Universal Excess Pressure Valve The medium flows through the valve body (1) to control the upstream pressure p in appli- as indicated by the arrow. The position of cations with seawater.
  • Page 13 12 Operating diaphragm Plug stem 13 Nut and bolt Spring plate Upstream pressure p 14 Control line Set point adjuster Downstream pressure p 15 Screw fitting Set point springs Fig. 2: Functional diagram of Type 2375 Universal Excess Pressure Valve EB 2536 EN...
  • Page 14 Design and principle of operation Table 1: Technical data · All pressure stated as gauge pressure Valve Valve size DN 15 to 50  1) Pressure rating PN 40 Max. permissible temperature 80 °C  2) Max. permissible ambient temperature 80 °C Metal seal ≤0.05 % of K coefficient (Class I) Leakage class according to IEC 60534-4 Soft seal ≤0.01 % of K coefficient (Class IV) Conformity ·...
  • Page 15 Design and principle of operation Table 3: K coefficients and max. permissible differential pressures Δp Valve size coefficients Max. permissible differential pressures Δp Standard version Special version Standard version Special version DN 15 DN 20 1 · 2.5 10 bar 14 bar DN 25 DN 32 16.0 8 bar 10.0 10 bar DN 40 20.0...
  • Page 16 Design and principle of operation Dimensions ØD Fig. 3: Dimensions of Type 2375 EB 2536 EN...

  • Page 17: Measures For Preparation

    2. Check the shipment for transportation WARNING damage. Report any damage to Risk of lifting equipment tipping over and SAMSON and the forwarding agent risk of damage to lifting accessories due to (refer to delivery note). exceeding the rated lifting capacity.

  • Page 18: Transporting

    Measures for preparation 4.2.1 Transporting 4.2.2 Lifting The regulator can be transported using lifting To install a large regulator into the pipeline, equipment (e.g. crane or forklift). use lifting equipment (e.g. crane or forklift) to lift it. Î Leave the regulator in its transport con- tainer or on the pallet to transport it.

  • Page 19: Storage

    Risk of regulator damage due to improper − Store elastomers away from lubricants, storage. chemicals, solutions and fuels. − Observe the storage instructions. − Avoid long storage times. − Contact SAMSON in case of different stor- age conditions or longer storage times. EB 2536 EN...

  • Page 20: Preparation For Installation

    Mounting and start-up 5 Mounting and start-up SAMSON's After-sales Service can provide NOTICE NOTICE more detailed storage instructions on re- quest. Risk of overheating due to excessive ambient temperatures or insufficient heat dissipation when components are insulated. 4.4 Preparation for installation −...

  • Page 21: Mounting Positions

    Mounting and start-up NOTICE Possible malfunction and damage due to adverse weather conditions (temperature, humidity). Standard mounting position − Do not install the device outdoors or in Actuator on top rooms prone to frost. All versions. − Protect the regulator against frost if it is used to control freezing media.

  • Page 22: Installing The Regulator Into The Pipeline

    Mounting and start-up 5.2 Installing the regulator into Î Observe the inlet and outlet lengths (see Table 5). Contact SAMSON if the regula- the pipeline tor conditions or state of the medium process deviate. 5.2.1 Checking the installation Î Install the regulator free of stress and...

  • Page 23: Additional Fittings

    − Vertical pipeline In strainers where the medium flows up- ward, the cover and filter face upward. Shut-off valve for upstream pressure Downstream pressure gauge Strainer Shut-off valve for downstream pressure Upstream pressure gauge Safety valve Type 2375 Universal Excess Pressure Valve Fig. 6: Installation example for Type 2375 Universal Excess Pressure Valve EB 2536 EN...

  • Page 24: Installing The Regulator

    Mounting and start-up 5.3 Installing the regulator 5.4 Start-up 1. Close the shut-off valves in the pipeline DANGER while the valve is being installed. Risk of personal injury due to process me- 2. Remove the protective caps from the dium escaping. flanges before installing the valve.

  • Page 25: Operation

    Operation 6 Operation Pressure testing the plant All plant components must be designed for the test pressure. Remove the regulator from 6.1 Adjusting the set points the pipeline, if necessary. Note NOTICE Turning the set point adjuster (6) Risk of damage to the actuator diaphragm −...

  • Page 26: Servicing

    Servicing 7 Servicing WARNING The regulator does not require much mainte- Risk of burn injuries due to hot or cold com- nance. Nevertheless, it is subject to natural ponents and pipelines. wear, particularly at the seat, plug and oper- Depending on the process medium, regula- ating diaphragm.

  • Page 27: Replacing The Operating Diaphragm

    Servicing 7.1 Replacing the operating Note diaphragm The regulator was checked by SAMSON be- fore delivery. See Fig. 2. − The product warranty becomes void if ser- If the upstream pressure deviates consider- vice work not described in these instruc- ably from the set point, check if the dia- tions is performed without prior agreement phragm is leaking.

  • Page 28: Replacing The Set Point Springs

    Servicing 7.2 Replacing the set point Mount the operating diaphragm as follows: springs 1. Insert the operating diaphragm into the actuator housing onto the bottom dia- Î See Fig. 2 phragm plate (16). 2. Place on the top diaphragm plate (17) Removing the set point springs and screw on the nut (18) while holding 1.

  • Page 29: Tightening Torques And Lubricant

    SUPPORT > After-sales Service. 4. Continue as described on our website at u www.samsongroup.com > Service & Support > After-sales Service > Returning goods. 7.5 Ordering spare parts and operating supplies Contact your nearest SAMSON subsidiary or SAMSON's After-sales Service for infor- mation on spare parts, lubricants and tools. EB 2536 EN...

  • Page 30: Malfunctions

    For troubleshooting, the condi- tions, such as installation, process medium, temperature and pressure conditions, must be taken into account. SAMSON's After-sales Service can help during troubleshooting. Further information is available in section 10.1. Note Contact SAMSON's After-sales Service for...
  • Page 31 Malfunctions Table 6: Troubleshooting Malfunction Possible reasons Recommended action Î Install the regulator so that the direction Regulator installed against the flow. of flow matches the direction indicated by the arrow on the body. Î Remove foreign particles. Foreign particles blocking the plug Î Replace damaged parts. Insufficient pressure pulses on the Î Clean the control line and screw fittings. Upstream pressure p exceeds operating diaphragm.

  • Page 32: Decommissioning And Removal

    While working on the regulator and control 9.2 Disposal line, residual process medium can escape and, depending on its properties, may lead SAMSON is a producer to personal injury, e.g. (chemical) burns. registered at the following Wear protective clothing, safety gloves and European institution u https://www.ewrn.org/...
  • Page 33 E-mail address You can reach our after-sales service at aftersalesservice@samsongroup.com. Addresses of SAMSON AG and its subsid- iaries The addresses of SAMSON, its subsidiaries, representatives and service facilities worldwide can be found on our website (u www.samsongroup.com) or in all...
  • Page 34 DIN EN, body, EN-GJS-400-18-LT and CC499K, DN 50, PN 25, fluids G2, L2, L1 2447 (44-7) 2448 (44-8) 2449 (44-9) Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 1 of 3 EB 2536 EN...
  • Page 35 Liquids according to Article 4(1)(c.ii) Gases according to Article 4(1)(c.i), second indent Liquids according to Article 4(1)(c.ii), second indent Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 2 of 3 EB 2536 EN...
  • Page 36 Norbert Tollas i.V. Peter Scheermesser Senior Vice President Director Global Operations Product Maintenance & Engineered Products Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 3 of 3 EB 2536 EN...
  • Page 37 ANSI, body, A216 WCC and A351 CF8M, NPS 2½-6, Class 150, all fluids ANSI, body, A216 WCC and A351 CF8M, NPS 1½-6, Class 300, all fluids Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 1 of 3 EB 2536 EN...
  • Page 38 DIN EN, body, EN-GJS-400-18-LT, DN 100-150, PN 25, fluids G2, L2, L1 DIN EN, body, 1.0619, DN 100-250, PN 16, all fluids Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 2 of 3 EB 2536 EN...
  • Page 39 Norbert Tollas i.V. Peter Scheermesser Senior Vice President Director Global Operations Product Maintenance & Engineered Products Revision 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Page 3 of 3 EB 2536 EN...
  • Page 40 EB 2536 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samsongroup.com · www.samsongroup.com...
