EB 3136 EN
Translation of original instructions
Type 2488 N/5857 Pressure-independent Control Valve
Edition January 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2488 N/5857 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samson 2488 N/5857

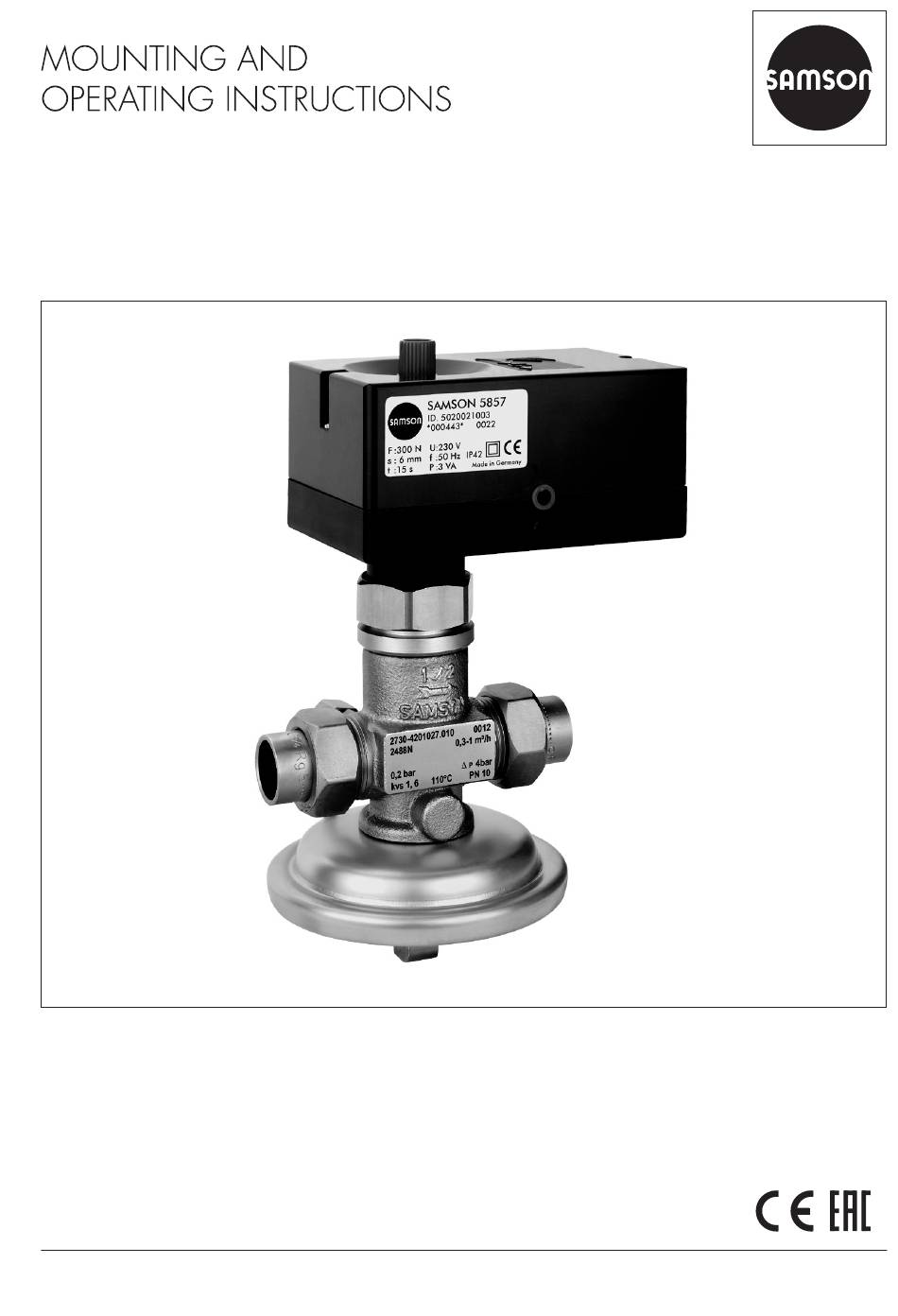

  • Page 1 EB 3136 EN Translation of original instructions Type 2488 N/5857 Pressure-independent Control Valve Edition January 2025...
  • Page 2 Note on these mounting and operating instructions These mounting and operating instructions assist you in mounting and operating the device safely. The instructions are binding for handling SAMSON devices. The images shown in these instructions are for illustration purposes only. The actual product may vary.
  • Page 3: Table Of Contents

    Contents Safety instructions and measures ..............5 Notes on possible severe personal injury ............8 Notes on possible personal injury ..............8 Notes on possible property damage ..............9 Markings on the device ................10 Nameplates ....................10 2.1.1 Nameplate for Type 2488 N Valve ..............10 2.1.2 Electric actuator nameplate ................10 Design and principle of operation ..............11 Technical data .....................12 Measures for preparation ................16...
  • Page 4 Contents EB 3136 EN...
  • Page 5: Safety Instructions And Measures

    SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors.
  • Page 6 Safety instructions and measures Personal protective equipment SAMSON recommends wearing the following protective equipment depending on the pro- cess medium: Î Protective clothing, safety gloves and eye protection in applications with hot, cold and/or corrosive media Î Wear hearing protection when working near the valve. Follow the instructions given by the plant operator.
  • Page 7 Start-up and shutdown procedures fall within the scope of the operator's duties and, as such, are not part of these mounting and operating instructions. SAMSON is unable to make any statements about these procedures since the operative details (e.g. differential pressures and temperatures) vary in each individual case and are only known to the operator.
  • Page 8: Notes On Possible Severe Personal Injury

    Safety instructions and measures 1.1 Notes on possible severe personal injury DANGER Risk of bursting in pressure equipment. Valves and pipelines are pressure equipment. Improper opening can lead to device components bursting. Î Before starting any work on the device, depressurize all plant sections affected as well as the valve. Î Drain the process medium from the plant sections affected as well as from the valve.
  • Page 9: Notes On Possible Property Damage

    Î Wear protective clothing and safety gloves. Damage to health relating to the REACH regulation. If a SAMSON device contains a substance listed as a substance of very high concern on the candidate list of the REACH regulation, this is indicated on the SAMSON deliv- ery note. Î Information on the safe use of the part affected u www.samsongroup.com/en/about-samson/environment-social-governance/ma-...
  • Page 10: Markings On The Device

    Markings on the device 2 Markings on the device Several nameplates are affixed to the device. The nameplates shown were up to date at the ones shown. The nameplates are used to the time of publication of this document. The identify the separate regulator components nameplates on the device may differ from (see Chapter 2.1).
  • Page 11: Design And Principle Of Operation

    Design and principle of operation 3 Design and principle of oper- direction indicated by the arrow on the valve body. The flow rate is determined by the ation area released by the valve plug (3) and the Î See Fig. 2 adjustable restriction (11). The pressure-independent control valve The installed spring (5) determines the differ- (PICV) consists of the Type 2488 N Flow ential pressure across the restriction of...
  • Page 12: Technical Data

    Noise emissions point screw (13). SAMSON is unable to make general state- 3.1 Technical data ments about noise emissions. The noise emis- sions depend on the valve version, plant fa- The nameplate on the regulator contains in- cilities and process medium.
  • Page 13 Design and principle of operation Table 1: Technical data for Type 2488 N Valve Type 2488 N Valve Nominal size DN 15 Pressure rating PN 10 Max. perm. differential pressure Δp 4 bar coefficient Standard version Special version Max. permissible temperature Treated water 110 °C Non-flammable gases 80 °C Flow rate set point range/limitation for water with 0.2 bar differential pressure at the re- striction Standard version 0.3 to 1.0 m³/h Special version 0.1 to 0.5 m³/h Differential pressure across the restriction 0.2 bar...
  • Page 14 Design and principle of operation Table 2: Technical data of Type 5857 Actuator Type 5857 Actuator Version Three-step With digital positioner Connection to valve Force-locking Rated travel 6 mm Transit time for rated travel 20 s 30/20 /10 s Thrust 300 N 230 V (±10 %), 50 Hz 24 V (±10 %), 50 Hz, Supply voltage 24 V (±10 %), 50 Hz 60 Hz and DC Power consumption Approx. 3 VA 5 VA Manual override...
  • Page 15 Design and principle of operation Ø12 ISO 228/1-G ¾ B Intermediate insulating Ø95 piece SW30 SW30 Welding ends Threaded ends Fig. 3: Dimensional drawings EB 3136 EN...
  • Page 16: Measures For Preparation

    − Observe the storage instructions. note. − Avoid longer storage periods. 2. Check the shipment for transportation − Contact SAMSON in case of different stor- damage. Report any damage to age conditions or longer storage times. SAMSON and the forwarding agent (refer to delivery note).
  • Page 17: Preparation For Installation

    − To keep elastomers in shape and to pre- vent cracking, do not bend them or hang Standard mounting position them up. Î Install the regulator in a horizontal pipe- − SAMSON recommends a storage tem- line with the diaphragm actuator facing perature of 15 °C for elastomers. downward (see Fig. 4). − Store elastomers away from lubricants, Î...
  • Page 18: Additional Fittings

    − Do not install the device outdoors or in carried along by the medium. For example, rooms prone to frost. the SAMSON Type 1 NI Strainer is suitable − Protect the regulator against frost if it is (u T 1010). used to control freezing media.
  • Page 19 Mounting and start-up Type 2488 N/5857 Indirect connection to district heating system with Type 2488 N/5825 PICV Fig. 5: Sample application EB 3136 EN...
  • Page 20: Electrical Connection

    Mounting and start-up 5.4 Electrical connection Version with three-step signal Î See Fig. 2 and Fig. 6 24 V AC WARNING Upon installation of the electric cables, you are required to observe the regulations concerning low-voltage installations ac- cording to DIN VDE 0100 as well as the regulations of your local power supplier.
  • Page 21: Start-Up

    Mounting and start-up 5.5 Start-up NOTICE Î Do not start up the regulator until all Risk of damage to the diaphragm actuator due to impermissible excess pressure. parts have been mounted. The test pressure must not exceed the nomi- Î Make sure that the restriction (11) is nal pressure at the actuator by 1.5 times on open while filling the plant. To do this, testing the pressure of the plant when the...
  • Page 22: Operation

    Operation 6 Operation 6. Guide the wire through the lead-seal hole and lead-seal it to fix the adjusted 6.1 Adjusting the set points flow rate. 7. Reconnect the power supply to the elec- 6.1.1 Flow rate tric actuator (16). Î Completely open the control and shut-off valves or the bypass valve in the plant. For exact adjustment, verify adjusted value To adjust or change the flow rate set point, with a heat or flow meter.
  • Page 23: Servicing

    WARNING Risk of burn injuries due to hot or cold com- ponents and pipelines. SAMSON’s After-sales Service can support Depending on the process medium, valve you in drawing up an inspection and test components and pipelines may get very hot plan for your plant.
  • Page 24: Preparation For Return Shipment

    Malfunctions 7.2 Ordering spare parts and Note operating supplies The regulator was checked by SAMSON before delivery. Contact your nearest SAMSON subsidiary − The product warranty becomes void if or SAMSON’s After-sales Service for infor- service or repair work not described in mation on spare parts, lubricants and tools.
  • Page 25 Recalculate K and contact Control loop hunts. Valve too large for control task SAMSON for further action. Note Contact SAMSON’s After-sales Service for malfunctions not listed in the table and when the malfunction cannot be remedied as described. EB 3136 EN...
  • Page 26: Decommissioning

    Chemicals Agency (ECHA) website (uhttps://www.echa.europa.eu/scip- database ) to find out more information on the SVHC. Note SAMSON can provide you with a recycling passport on request. Simply e-mail us at aftersalesservice@samsongroup.com giving details of your company address. On request, SAMSON can appoint a service provider to dismantle and recycle the prod- uct as part of a distributor take-back scheme.
  • Page 27: Appendix

    E-mail address ance with Machinery Directive You can reach our after-sales service at 2006/42/EC for Type 2488 N Regula- aftersalesservice@samsongroup.com. tor on page 29. Addresses of SAMSON AG and its subsid- − Declaration of incorporation in compli- iaries ance with Machinery Directive The addresses of SAMSON, its subsidiaries, 2006/42/EC for the Type 2488 N Valve representatives and service facilities with other actuators on page 30.
  • Page 28 Certificates EB 3136 EN...
  • Page 29 Certificates EB 3136 EN...
  • Page 30 Stephan Giesen Peter Scheermesser Director Director Product Management Product Life Cycle Management and ETO Development for Valves and Actuators Revision no. 00 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismüllerstraße 3 · 60314 Frankfurt, Germany Page 1 of 1 EB 3136 EN...
  • Page 31 EB 3136 EN...
  • Page 32 EB 3136 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samsongroup.com · www.samsongroup.com...
