Flycam HD-3000 Instruction Manual

Camera steadycam system with comfort arm and vest
Hide thumbs Also See for HD-3000:

Advertisement

Quick Links

Download this manual

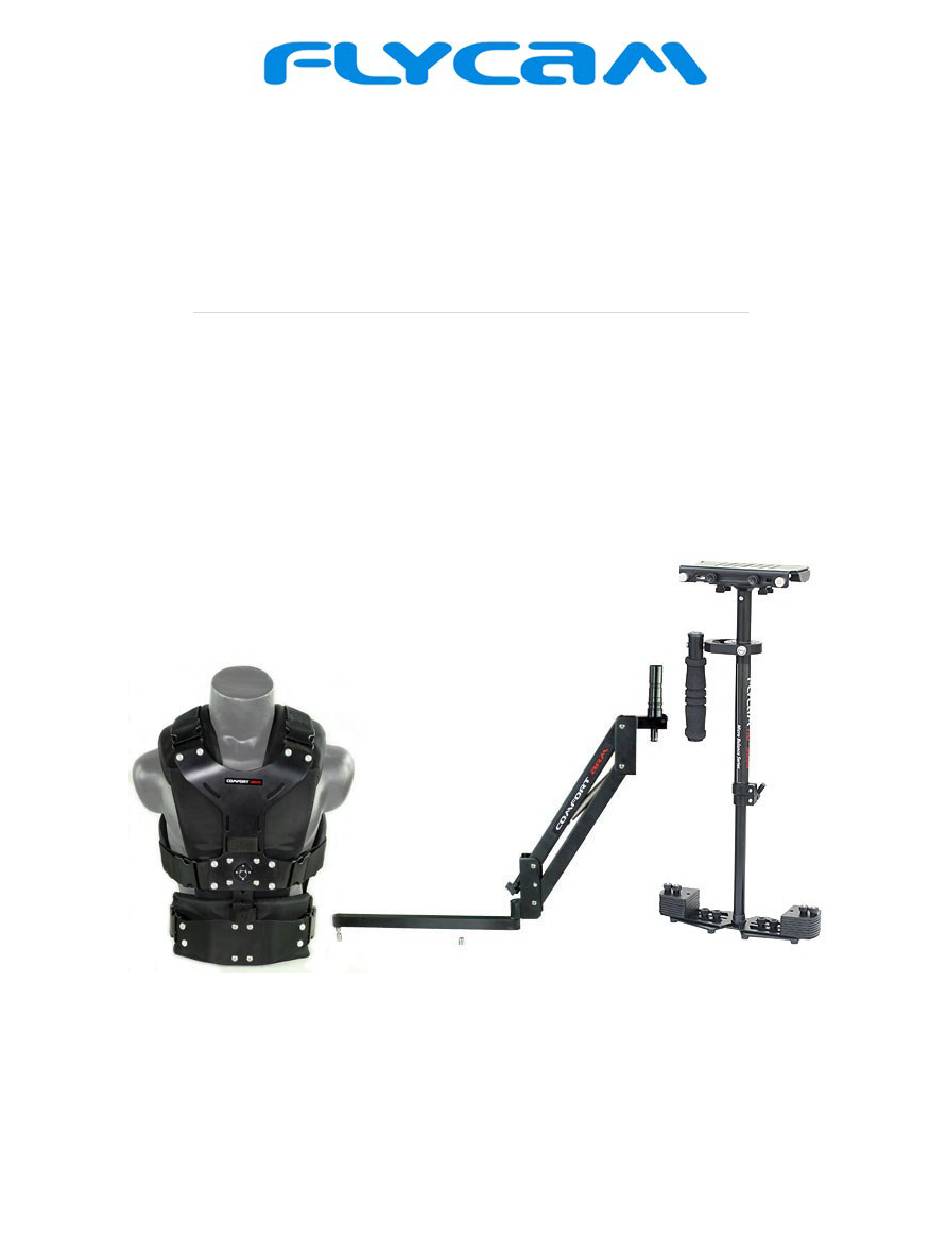

HD-3000 Camera Steadycam System
with Comfort Arm and Vest
(CMFT-HD3)
I N S T R U C T I O N M A N U A L
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted
by the applicable copyright statutes or in writing by the publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flycam HD-3000

Summary of Contents for Flycam HD-3000

  • Page 1 HD-3000 Camera Steadycam System with Comfort Arm and Vest (CMFT-HD3) I N S T R U C T I O N M A N U A L All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the publisher.
  • Page 2 INTRODUCTION With the technology up-gradations and enhancements in stabilization systems we are introducing our Flycam HD- 3000 Handheld Camera Stabilizer with Comfort Arm & Vest Kit, complete Professional state of art, lightweight stabilization kit designed especially for modern cameras up to 3.5kg/7.7lb. The affordable and versatile Flycam camera stabilizer offers you focus on your shooting the event instead of your discomfort and stress.
  • Page 3 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest HEAD ASSEMBLY  Head Plate  Mid Plate  Bottom Plate Bottom Head Plate Mid Plate These three individual pieces are shipped as one assembled unit. ‘V’ SHAPED ADAPTORS INCLUDED IN HARDWARE KIT...
  • Page 4 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest ATTACHING HEAD PLATE ASSEMBLY TO CENTRAL POST  Loosen head plate with help of allen key and then place it on central post. Then tighten the screws with help of allen key.
  • Page 5 ADDING WEIGHTS AND POSITIONING FOR PROPER BALANCE  Continuing the assembly and balance requirements to make your Flycam HD-3000 fully functional you will note that the base platform has a provision to mount the balance weights via 2x BH bolts secured with knobs on both sides of the post.
  • Page 6 Central Post in a perfect vertical position. Warning: If you do not have enough weight on the Base Platform the entire FLYCAM could flip upside down. Should this movement start to happen be ready to catch the stalk before a complete 180 degree occurs.
  • Page 7 The stability of the Flycam HD-3000 depends on it being slightly bottom heavy. If it is top heavy, it will tilt more. If it is too bottom heavy, it will be sluggish and hard to aim.
  • Page 8  Remove top plate of FLYCAM and line up your camera so that its center of gravity is as close to the center of the plate as possible (basically hold the camera in your hand until it feels balanced both left and right as well as forward and back).
  • Page 9 M A I N T E N A N C E Bearing Maintenance The main Bearing on your Flycam HD-3000 Handheld Stabilizer is attached to the Central Post about two inches from the top. It is of metal construction and partially enclosed by the Bearing assembly.
  • Page 10 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest Cleaning Do not use solvents or harsh cleaners of any kind on your Flycam HD-3000 Hand held stabilizer. If the unit becomes dirty, use a damp soft cloth or sponge and a mild detergent to gently clean external parts.
  • Page 11 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest FITTING YOUR COMFORT VEST  Clip one side and one shoulder buckle (same side) to attach the back and front of the vest.  Place the partially assembled vest on your upper body as if wearing a shirt.
  • Page 12 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest  It is important to make the vest fit as tight as possible, almost like a second skin. Doing so provides maximum control over the stabilizer system and makes for slip free operation .
  • Page 13 FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest  Having custom fit the vest to your body type you can now insert the arm into the mount.  Next, attach the spool adapter to the comfort arm in order to mount your FLYCAM onto it.

  • Page 14: Warranty

    FLYCAM HD-3000 Camera Steadycam System with Comfort Arm and Vest YOUR FLYCAM HD-3000 CAMERA STEADYCAM SYSTEM WITH COMFORT ARM AND VEST ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase.
