COMMERCIAL

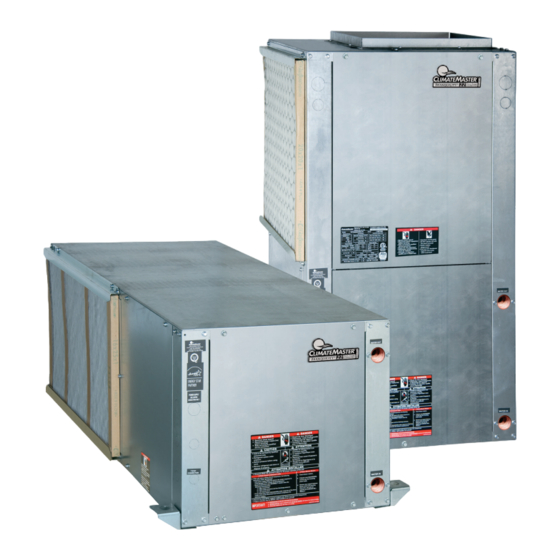

TranquiliTy® 18 (Sr) VErSaTilE SinGlE-STaGE SEriES
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
Part#: 97B0075N34 | Updated: July 11, 2024
Models: SR 006-060
60 Hz – R-454B
Preliminary
