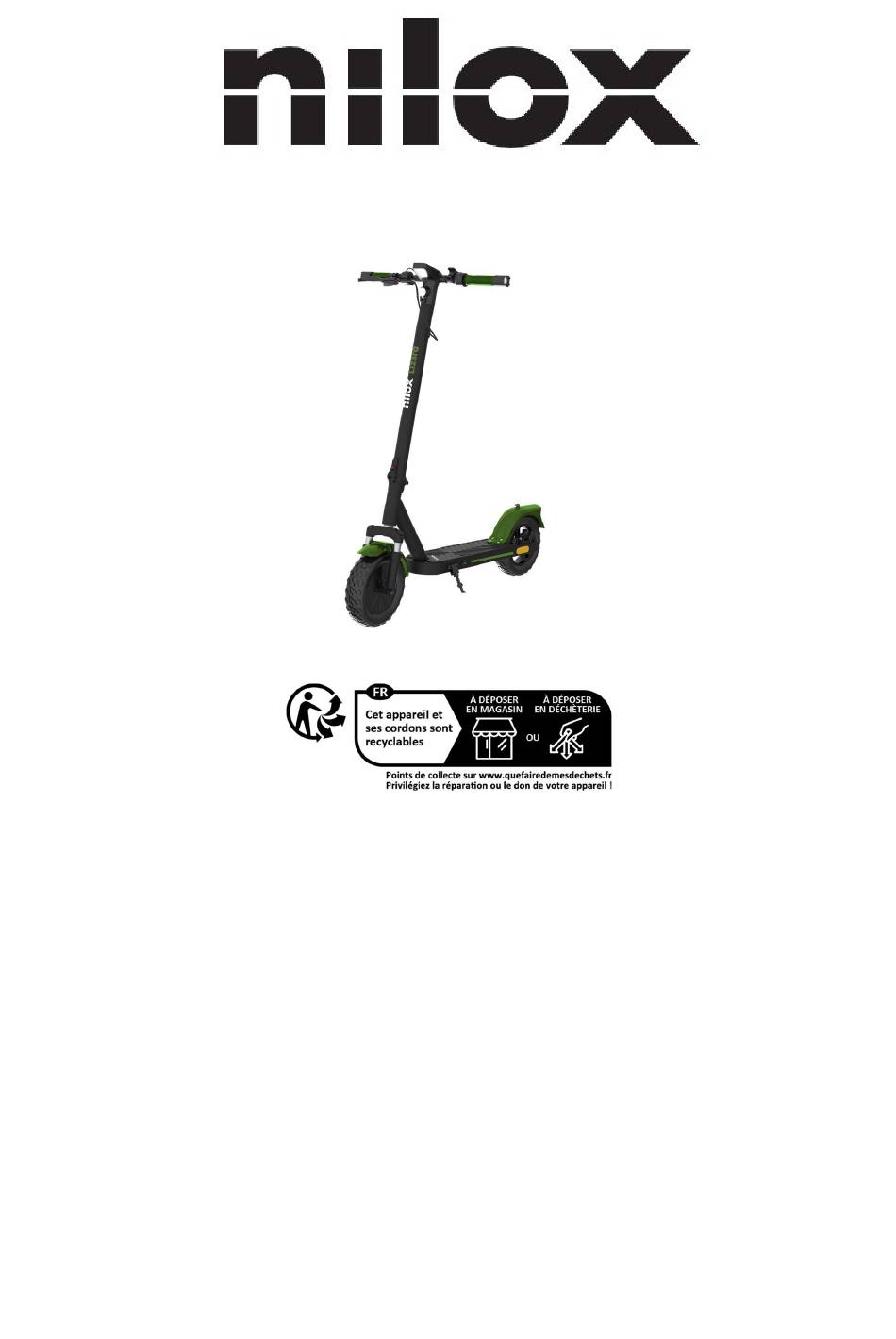

Original manual
NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR
09/2023
IMPORTANT! Read carefully and keep for future reference.
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
Before operating this vehicle, please make sure to familiarize with the local
laws/regulation for the use of electric scooters. The Electric scooter may not be used
on public roads unless local regulations approve this.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance. This appliance contains batteries that are not replaceable.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXESLIZARD10OR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nilox NXESLIZARD10OR

Summary of Contents for Nilox NXESLIZARD10OR

  • Page 1 Original manual NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR 09/2023 IMPORTANT! Read carefully and keep for future reference. Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter.

  • Page 2: Table Of Contents

    Table of Contents 1 Important information before use ................3 2 Product overview ......................4 Assembling the device……………………………………………………………………………………………….6 Unfolding and folding the scooter ................7 5 Charging the scooter ....................8 6 Intended Use ......................11 7 Safety Instruction ....................... 11 8 Maintenance ......................

  • Page 3: Important Information Before Use

    1. Important information before use We urge owners of this Scooter to charge and store it in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged.

  • Page 4: Product Overview

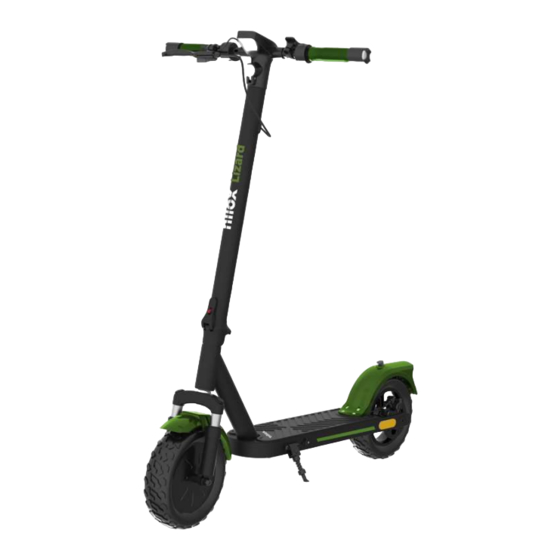

    2. Product overview 1. Front light 6. Charging Port 2. Folding mechanism 7. Folding holder 3. Front suspension 8. Rear light 4. Front wheel (Motor) 9. Number plate space 5. Foot stand 10. Rear wheel (Disc brake)
  • Page 5 1. Direction light (left and 5. Disc brake lever right) 6. Electronic brake and 2. Folding clip for direction light detaching to rear activation wheel fender when 7. Bell folded. 8. Throttle and Lights 3. Display On/Off + Power On/Off 4.

  • Page 6: Assembling The Device

    3 . Assembling the device Before using the scooter it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame front pole. 2). After matching the screw holes in the handlebar with the front pole holes, insert the screws and tighten them well.

  • Page 7: Unfolding And Folding The Scooter

    4. Unfolding and folding the scooter Unfolding 1. Place the Electric scooter on its wheels and release the folding clip.
  • Page 8 2. Pull up the handle in a gentle way. 3. When the scooter is unfolded, please make sure to secure below fasten below clasp to the front pole so it will not unfold during riding.
  • Page 9 Folding 1. Move the red hook to release it and pull it outward until it no longer hold the upper front pole. 2. Press the front pole of the electric scooter downward and connect it to the folding holder on the rear fender.

  • Page 10: Charging The Scooter

    5. Charging the scooter Connect the supplied power adapter XHK-916-42015 to the charging port of the electric scooter and connect the Adaptor power plug to the power outlet and turn on the power.

  • Page 11: Intended Use

    6. Intended Use The Electric scooter is to be used by a person with a maximum weight of 120 kg. Important, the Electric scooter may only be operated in good visibility conditions and only if the physical conditions for stability on the Electric scooter are met (for example, not on one leg/not under the influence of drugs or alcohol).

  • Page 12: Maintenance

    Avoid applying too much force, stepping on or lifting scooter in the rear fender. This may cause the fender to loosen or damage the fender. This is not covered by the warranty. Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual.
  • Page 13 All batteries have a life cycle, and performance will decrease over time, however, here are some advice to maximize the life span of the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time.
  • Page 14 Bearings and screws: The electric scooter has sealed and dustproof bearings so that no lubrication is required. Check the bearings for wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force otherwise to avoid damage to the bearings. This is not a sports electric scooter.

  • Page 15: Operational Control

    to use a little toothpaste if the dirt is stuck. Remember to clean with damp cloth after this. Please make sure to keep the electric scooter turned off while cleaning it, and make sure to cover the charging input to avoid problems with the electronics. Make sure to dry the scooter with a towel, should it become wet.
  • Page 16 1. Electronic brake and direction light. A – Activates Direction light left B – Activates Direction light right C – Electronic brake 2. Disc brake lever 3. Throttle / Speed and Lights and Power ON/OFF A – Lights ON/OFF B – Power ON/OFF C –...

  • Page 17: Display

    10. Display 1. Direction light left 2. Speed 3. Battery indicator 4. Trip - Distance driven 5. Front and rear light ON 6. Direction light right 7. Scooter unlocked and can drive. This is controlled in APP. 8. Speed MPH or KM/H. Controlled in APP. 9.

  • Page 18: App

    11. APP Download APP from Google Playstore or Apple APP store dependent on what phone you use. Search for APP name: NILOX E-scooter When the APP has been installed, please open it. You will see this: Please notice that the APP will only work if the scooter is powered on and connected via Wireless technology.

  • Page 19: Electric Scooter Riding

    12. Electric scooter riding Press power button on display fast one time to change Speed mode. The scooter is has running start which means that you need to propel the scooter by foot in order to start the scooter. Press the Throttle / Speeder button to accelerate. Press the brake lever for using Disc brake or the Electric brake button to brake.

  • Page 20: Specification

    100-240 Rated output voltage (v) Rated current (A) 1.5A Charging Time(h) Max 7 hours Electric scooter Model: NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR Input: 100V-240V~, 50/60Hz, 2A(Max) Output: 42V 1.5A Max Speed: 25 km/h Weight: 18,4kg Year Of manufacture: 2023 Max Vehicle Payload: 120kg Battery: 36V/10.2Ah...

  • Page 21: Warnings

    14. Warnings Risks of riding WARNING First, learn safe riding before you ride the Electric scooter fast. Failure to observe, loss of control, falls, and violations of the rules can cause injuries. Speed and range depend on the rider's weight, terrain, temperature, and riding style. Wear a helmet and protective clothing when riding the Electric scooter.
  • Page 22 16.3 Range per charge The range of the scooter depends on several factors: Topography: On level paths you have a greater range than on uneven ground. ● Weight: The range depends on the rider's weight. ● Temperature: Extreme temperatures reduce the range. ●...
  • Page 23 Keep the Electric scooter at a sufficient distance from other people and avoid ● collisions. Steer through balance shifting, fast movement can result in falls. ● Do not ride in rain or under other wet conditions. Scooter is splash proof. But not ●...
  • Page 24 Always keep an eye on the device throughout the charging cycle. Don not leave it ● charging unattended. Charge the device only at temperatures between 0 °C and +45 °C. ● When charging at lower or higher temperatures, there is a risk that the battery ●...
  • Page 25 IMPORTANT! Read carefully and keep for future reference. Accessories and any additional items which are not approved by the manufacturer shall not be used. WARNING As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue.
  • Page 26 Additional information is available at the technical department of your city. Hereby, Denver A/S declares that the radio equipment type NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR is in compliance with Directive 2014/53/EU. Wireless technology Frequency Range: 2402MHz-2480MHz...
  • Page 27 Imported and manufactured by: Denver A/S Omega 5A, Soeften DK-8382 Hinnerup Denmark...
  • Page 28 Regarding Battery charging of your scooter Important – Please read! Dear customer. We hope you get a lot of joy out of your new Electric scooter. The battery built in the Electric scooter is not fully charged from production line and when left unused the battery can slowly discharge by itself.
  • Page 29 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR Product type: Electric scooter Year of manufacturing: 2023 • Note: ONLY use the supplied charger labelled XHK-916-42015 with the following output voltage to charge this Electric scooter: 42V –...
  • Page 30 Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark certify that the design and manufacturing of this product. Product Brand Name: NILOX Product Model No.: NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR Product type: Electric scooter conforms to the following directives: Machinery directive 2006/42/EC...
  • Page 31 Nilox Product brand name: Product model no.: NXESLIZARD10OR / NXESANT10OR / NXESVIPER10OR conforms to the following directives and regulations/standards: RED Directive 2014/53/EU – Health Article 3.1(a): And standard: EN 62479: 2010 RED Directive 2014/53/EU –...
