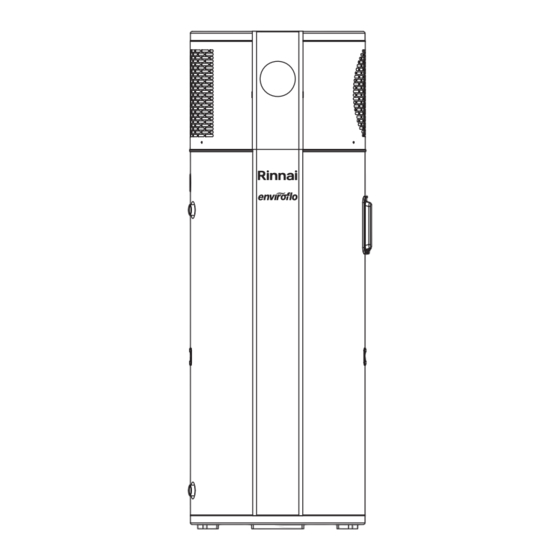

- Page 1 MODEL EHPS265VMT E Series - Heat Pump Hot Water System Operation & Installation Manual...
- Page 2 For continued safety of this appliance it must be installed and maintained in accordance with the manufacturer’s instructions. Standard: AS/NZS 2712:2007 Standard: AS3498:2020 Licence Number: SMK41306 Licence Number: WMK26792 SAI Global SAI Global Rinnai E Series Heat Pump OIM - Issue 2...
-
Page 3: Table Of Contents
Commissioning and Finishing the Installation �������������������������������������������������������������������������������������������� 20 Wiring Diagram ����������������������������������������������������������������������������������������������������������������������������������������������� 20 Operation of Controller ��������������������������������������������������������������������������������������������������������������������������������� 21 Controller Layout and Keys �������������������������������������������������������������������������������������������������������������������������� 21 Led Icons ��������������������������������������������������������������������������������������������������������������������������������������������������������� 22 Controller Functions and Operation ������������������������������������������������������������������������������������������������������������� 23 Wi-Fi Connection �������������������������������������������������������������������������������������������������������������������������������������������� 26 Contacts Rinnai E Series Heat Pump OIM - Issue 2... -
Page 4: Warnings And Important Information
For safety and warranty purposes, appliances that may be damaged or incorrect must not be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances. -
Page 5: Transport And Storage Of Appliance
FROM VERTICAL The Rinnai Electric Heat Pump must be transported at an angle no greater that 45º from vertical. As the compressor unit is located at the top of the electric heat pump, should the heat pump be tilted at a greater angle than 45º from vertical, the lubrication oil within the compressor can run down into the mufflers. -
Page 6: Scald Hazards
NEVER…. Leave a toddler in the care of another child. They may not understand the need to have the water temperature set at a safe level. Rinnai E Series Heat Pump OIM - Issue 2... -
Page 7: Operating Principle
During the occasional times when the ambient weather conditions are not suitable for the heat pump to operate, the electric element will provide heating to ensure a supply of hot water. SYSTEM SCHEMATIC FILTER FILTER EVAPORATOR HIGH PRESSURE SWITCH WATER TANK 4 WAY VALVE HEAT EXCHANGER COMPRESSOR MICRO-CHANNEL Rinnai E Series Heat Pump OIM - Issue 2... -
Page 8: Safety Devices
If the valve leaks continuously, try easing the valve gear for a few seconds. This may dislodge any foreign matter which may be causing the problem. If this does not fix the issue, contact Rinnai. Operate the easing gear regularly to remove any lime deposits and to verify that it is not blocked. -
Page 9: Hydrogen Gas
It is recommended that the anodes be inspected at least every 5 years. The factory fitted Rinnai anodes are Magnesium based. These anodes are suited to conditions where the total dissolved solids (TDS) content in the water supply does not exceed 600 mg/L, (which is the case in most areas). In areas where the total dissolved solids (TDS) content in the water supply exceeds 600 mg/L Rinnai aluminium based anodes are required. -
Page 10: Save A Service Call
SAVE A SERVICE CALL Rinnai’s servicing network personnel are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance needs service, ring one of the service contact numbers on the back of this booklet. - Page 11 Ambient temperature sensor fault Sensor fault/Connection is loose Suction temperature sensor fault Sensor fault/Connection is loose *If an error code is displayed on the control unit please contact Rinnai Customer Care Immediately. Rinnai E Series Heat Pump OIM - Issue 2...
-
Page 12: Specifications
SPECIFICATIONS SPECIFICATIONS SYSTEM SPECIFICATIONS Model EHPS265VMT Net Weight / Gross Weight 120 kg / 134 kg Tank Volume 265 L Sound Level 46 dB(A) Ambient Temperature Limits (for heat pump operation - element will -7°C to 43°C operate beyond these limits) -
Page 13: Dimensions
SPECIFICATIONS DIMENSIONS Model EHPS265VMT Cylinder height 1764 mm Hot water outlet / PTR height 1146 mm Cold water inlet height 136 mm Cylinder diameter 620 mm Cylinder Diameter Height Hot Outlet / PTR Cold Inlet Rinnai E Series Heat Pump OIM - Issue 2... -
Page 14: Clearances
Allow 300 mm minimum vertical clearance and 500mm frontal clearance for service access. 100 mm 100 mm 500 mm 500 mm 300 mm 150 mm 500 mm Rinnai E Series Heat Pump OIM - Issue 2... -
Page 15: Installation
As this heat pump is highly efficient, the surrounding air temperature could be cooled by up to 4°C and condensate formed, the condensate outlet will need to be plumbed to a suitable drain. Rinnai E Series Heat Pump OIM - Issue 2... -
Page 16: Water Supply
• An approved pressure limiting valve (supplied with some systems) is required if the maximum rated water supply pressure on page 12 is exceeded. • Tempering valve(s) or thermostatic mixing valve Rinnai E Series Heat Pump OIM - Issue 2... -
Page 17: Transport And Handling
As a general good practice it is better to keep the compressor upright as much as possible. Returning the Rinnai Electric Heat Pump to a vertical position will allow the oil to properly flow back into the compressor motor. Tilting the heat pump beyond 45º from vertical will also place undue strain on compressor motor mounts and associated piping. -
Page 18: Connect The Ptr Valve
A temperature limiting device may be required as detailed in the section the section ‘Hot Water Delivery Temperature’ on page 16 It is recommended that all hot water lines are insulated with high temperature, UV resistant 13mm closed cell insulation. Rinnai E Series Heat Pump OIM - Issue 2... -
Page 19: Connect Condensate Drain Line
Disconnect all power prior to installation and commissioning. This appliance is designed for single phase 240 Volts, AC mains electrical operation. IMPORTANT Rinnai E Series Heat Pump OIM - Issue 2... -
Page 20: Filling The System
DO NOT drill, screw or fix any ancillary items to the of the tank. This product is fitted with a high efficiency heat exchanger attached to the inner cylinder, anything penetrating the outer skin of the tank may damage the heat exchanger. WARNING Rinnai E Series Heat Pump OIM - Issue 2... -
Page 21: Operation Of Controller
Press the key to change temperature setting value or parameter value or change hour and minute value Down Press the key and hold for 3s to query the system status/ parameter Page down Rinnai E Series Heat Pump OIM - Issue 2... -
Page 22: Led Icons
Screen Lock Active Compressor Running Compressor Active High Fan Speed High Fan Speed Active Low Fan Speed Low Speed Fan Active Timer Timer Active (see “Operation Timer Setting” on page 24) Rinnai E Series Heat Pump OIM - Issue 2... -
Page 23: Controller Functions And Operation
The mode name will show at the clock display for 8 seconds each time the “M” key is pressed. When unlocked, the display will show the clock. Press “M” key once to show the current Operation Mode. . Rinnai E Series Heat Pump OIM - Issue 2... - Page 24 When the controller is in the normal display mode and the heat pump is ON, press “ “,” ” and “ ” buttons together for more than 5 seconds to sterilise the water tank. The symbol “ “ will flash for 2 seconds then light Rinnai E Series Heat Pump OIM - Issue 2...
- Page 25 Compressor working time before defrosting Measured value Link switch 0=Open; 1=Close Program code Show the code Dial switch 0=Open; 1=Close Dial switch 0=Open; 1=Close Phase detecting value 0=OK; 3=Lack phase; 4=Phase fault; 5=No connection Rinnai E Series Heat Pump OIM - Issue 2...
-
Page 26: Wi-Fi Connection
You will need to repeat step 5 if the icon stops flashing during the connection NOTE Connect to the SmartLife App as follows: i) Search for Device ii) Add Found Device iii) Connect to Wi-Fi Rinnai E Series Heat Pump OIM - Issue 2... - Page 27 Control the Heat Pump with the App The main controls for the App are laid out as follows on the App. Adjust Temp Setting Turn Select Timer / On/Off Mode Check Operation Rinnai E Series Heat Pump OIM - Issue 2...
-
Page 28: Contacts
(National calls from public phones in Australia are free.) For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line.
