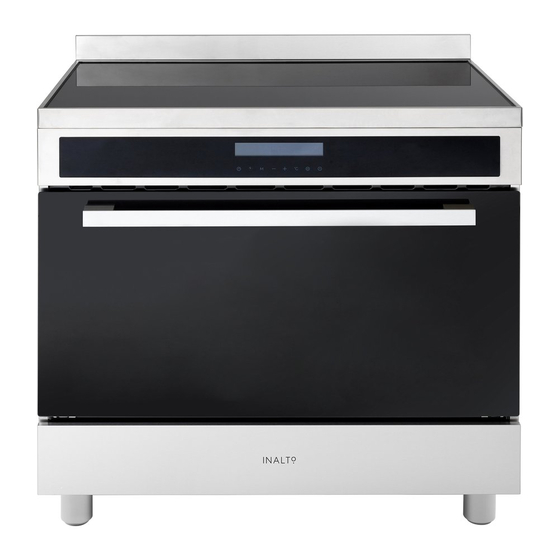

- Page 1 U S E R M A N U A L I N A L T O . H O U S E Electric Freestanding Oven — M O D E L C O D E R U 9 E I B A H I G H E R L E V E L O F L I V I N G V 1 .
-
Page 2: Welcome
Again, thank you for choosing an InAlto appliance and we look forward to being of service to you. A RESIDENTIA GROUP INITIATIVE... -
Page 3: Table Of Contents
PAGE 3 INALTO.HOUSE Contents Page Welcome Contents Safety Instructions Before Installing Installation Instructions Your Cooker Your Induction Cooktop Operating the Cooktop Cleaning and Care Cooktop Troubleshooting Cooktop Operating the Oven Cleaning and Care Oven Troubleshooting Tips and Tricks Wiring Diagram... -
Page 4: Safety Instructions
PAGE 4 Safety Instructions This cooker must only be installed in – Do not allow children to go near the oven accordance with the instructions provided and when it is operating, especially when the by a suitably licensed and qualified installer. grill is on. - Page 5 PAGE 5 INALTO.HOUSE Safety Instructions (Continued) Important information Read the instructions for use carefully. This will enable you to operate your appliance safely and correctly. This manual is valid for several models. Variations in details for each cooker are possible.
- Page 6 PAGE 6 Safety Instructions (Continued) Safety precautions This appliance is intended for domestic use only. This appliance must only be used for food preparation. Adults and children must not operate the appliance without supervision if: • they do not have the physical or mental ability; •...
- Page 7 PAGE 7 INALTO.HOUSE Safety Instructions (Continued) R isk of fire. Overheated oil and fat Overheated oil or fat can ignite very quickly. Never leave fat or oil to heat unattended. Should the oil ignite, do not try to put it out by pouring water on it.
- Page 8 PAGE 8 Safety Instructions (Continued) Property damage Damage to the hob Only use the hob plates if cookware is placed on them. Do not heat empty pots or pans. This will damage the pan base. Do not allow saucepans to boil dry, in particular enamel and aluminium saucepans.
- Page 9 PAGE 9 INALTO.HOUSE Safety Instructions (Continued) Damage to the oven Never cook meals on the floor of the cooking compartment. Do not leave the baking tray on the cooking compartment floor. Do not cover it with aluminium foil. Do not place oven or cookware on the oven floor.
-
Page 10: Before Installing
PAGE 10 Before Installing Safety precautions This manual is valid for several models. Variations in details for each cooker are possible. The safe operation of this appliance can only be guaranteed if it has been professionally assembled and installed in accordance with these instructions. The individual who assembled and installed the appliance is liable for damage or faults resulting from incorrect assembly or installation. -
Page 11: Installation Instructions
PAGE 1 1 INALTO.HOUSE Installation Instructions Installation This appliance is always supplied with a set of adjustable feet and, depending on the model, with a splash guard. The appliance may also be used without the splash guard. Fitting the adjustable feet Beforehand: •... - Page 12 PAGE 12 Installation Instructions (Continued) Positioning and levelling Positioning the appliance When installing the appliance, make sure that there is enough space in the final installation location to pull the appliance forwards for cleaning and maintenance work. The ground underneath must be hard and stable. The wall immediately behind the appliance must be made from non-flammable material, e.g.
- Page 13 PAGE 13 INALTO.HOUSE Installation Instructions (Continued) Electrical connection • This appliance must be earthed by law. Before connecting the appliance to the electrical supply, check that the earth system in your house is working correctly. • Check that unit voltage and power, marked on the rating plate applied on the appliance, are correct for the supply.
- Page 14 PAGE 14 Installation Instructions (Continued) Leave the mains cable slightly overlong so that you can pull out the appliance for cleaning purposes. Proceed as follows: • Remove the rear backboard. • Undo the screw on the terminal block that fixes the cable in place. •...
- Page 15 PAGE 15 INALTO.HOUSE Installation Instructions (Continued) Stability bracket...
-
Page 16: Your Cooker
PAGE 16 Your Cooker Appliance dimensions Note the specified dimensions. All product outward appearance, the color A=95-160 mm take the material object as, the picture only Appliance dimensions Note the specified dimensions. supply the reference. All product outward appearance, the color A=95-160 mm take the material object as, the picture only supply the reference. - Page 17 PAGE 17 INALTO.HOUSE THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 18: Your Induction Cooktop
PAGE 18 Your Induction Cooktop The hob (according to the models ) The hob (according to the models ) Induction hob Induction hob Table for for domestic electric hob in according to the Delegated Table for for domestic electric hob in according to the Delegated Regulation (UE) n°... - Page 19 PAGE 19 INALTO.HOUSE Your Induction Cooktop (Continued)
-
Page 20: Operating The Cooktop
PAGE 20 Operating the Cooktop Instruction for use of the induction hob A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. - Page 21 PAGE 21 INALTO.HOUSE Operating the Cooktop (Continued) • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
- Page 22 PAGE 22 Operating the Cooktop (Continued) The base diameter of induction cookware Cooking zone Minimum (mm) Maximum (mm) 1,2, Flexible zone 220x400 Using your Induction Hob To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, timer control show “...
- Page 23 PAGE 23 INALTO.HOUSE Operating the Cooktop (Continued) • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone.
- Page 24 PAGE 24 Operating the Cooktop (Continued) Cancel the Boost function 1. Touching the heating zone selection control that you wish to cancel the boost function a: Touching the boost control “ ”, then the cooking zone will revert to its original setting.
- Page 25 PAGE 25 INALTO.HOUSE Operating the Cooktop (Continued) 2. a: Touching the slider control, then the cooking zone will revert to the level you select. b: Touching the function control such as , then the cooking zone will revert to you select.
- Page 26 PAGE 26 Operating the Cooktop (Continued) viceversa),the flexible area detects automatically the new position, keeping the same power. 4. To add a further pot, press again the dedicated keys, in order to detect the cookware. As two independent zones To use the flexible area as two different zones with different power settings, press the dedicated keys.
- Page 27 PAGE 27 INALTO.HOUSE Operating the Cooktop (Continued) Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: .
- Page 28 PAGE 28 Operating the Cooktop (Continued) indicator shows “00 “ when the setting time finished. Setting the timer to turn cooking zones off If the timer is set on one zone: 1. Touching the heating zone selection control that you want to set the timer for. 2.
- Page 29 PAGE 29 INALTO.HOUSE Operating the Cooktop (Continued) (set to 15 minutes) (set to 45 minutes) 2. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.
- Page 30 PAGE 30 Operating the Cooktop (Continued) cooking begins, as this could affect the final result. • Once the water has boiled, a series of beeps is heard and the zone indicator flashes. Then give a short press on the boiling cue control .
- Page 31 PAGE 31 INALTO.HOUSE Operating the Cooktop (Continued) about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. 5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.
-
Page 32: Cleaning And Care Cooktop
• pancakes 12 - 14 • sautéing • cooking pasta 15/P • stir-frying PAGE 32 • searing Cleaning and Care • bringing soup to the boil • boiling water Care and Cleaning factors, including your cookware and the amount you are cooking. Experiment The settings below are guidelines only. - Page 33 PAGE 33 INALTO.HOUSE Troubleshooting Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.
-
Page 34: Troubleshooting Cooktop
PAGE 34 Troubleshooting (Continued) Pans do not become The induction hob cannot Use cookware suitable for induction hot and appears in detect the pan because it is not cooking. See section ‘Choosing the the display. suitable for induction cooking. right cookware’. The induction hob cannot Centre the pan and make sure that detect the pan because it is too... - Page 35 PAGE 35 INALTO.HOUSE THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 36: Operating The Oven
PAGE 36 Operating the Oven Electronic control Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). - Page 37 PAGE 37 INALTO.HOUSE Operating the Oven (Continued) Oven Accessories The accessories can be inserted in the oven in 4 different shelf positions. You can pull the accessories two-thirds of the way out without them tipping. This allows meals to be removed easily.
- Page 38 PAGE 38 Operating the Oven (Continued) NOTE: 1>The step quantities for the adjustment time of the coding switch are as follow: 0--0:30min: step 1 minute 0:30--9:00hour :step 5 minutes 2>The step quantities for the adjustment of temperature is 5 C, and " "...
- Page 39 PAGE 39 INALTO.HOUSE Operating the Oven (Continued) 8. Reservation Function Only when the clock has been set, delay function can be used. In standby mode, 1, Press " "2 timers，the display shows " " and “End”. 2, Press " < > " to set the hour of the cooking ending time of reserv ation.
- Page 40 PAGE 40 Operating the Oven (Continued) The storage compartment Open the storage compartment by folding down the fascia panel. This compartment can be used to store hob or oven accessories. There is a plastic sucker in some models can help you open the drawer. Risk of fire.
- Page 41 PAGE 41 INALTO.HOUSE Operating the Oven (Continued) Before using for the first time Please read the following instructions before using your appliance for the first time. Remove the appliance packaging and dispose of this appropriately. Baking out the oven Cooking compartment...
- Page 42 PAGE 42 Operating the Oven (Continued) Heating up the grill Put the switch in position grill After 25 minutes, switch the oven off by turning the control knob clockwise to position 0 . Rinsing cooking Clean the cooking compartment with hot soapy compartment after initial water.
- Page 43 PAGE 43 INALTO.HOUSE Operating the Oven (Continued) Inserting the rotary spit Insert the rotary spit as follows: Hook the spit holder into the bracket on the ceiling of the cooking compartment. If you require to preheat the oven, hook in the holder before preheating.
- Page 44 PAGE 44 Operating the Oven (Continued) Removing the rotary spit Risk of burns. Never touch the hot surfaces of the cooking compartment or the heating elements. Children must be kept at a safe distance from the appliance at all times. Open the appliance door carefully.
-
Page 45: Cleaning And Care Oven
PAGE 45 INALTO.HOUSE Cleaning and Care Cleaning and care Never use high-pressure cleaners or steam jets. Risk of short circuit. Never use caustic or abrasive cleaning agents. These could damage the surface. If such an agent gets on the front of the appliance, wipe it off immediately with water. - Page 46 PAGE 46 Cleaning and Care (Continued) Using the correct cleaning agent Do not use cleaning agents that contain abrasive substances or acids, or cleaning aids such as steel wool or stainless steel sponges. These could damage the surfaces. Appliance parts Cleaning agent and cleaning aid Appliance door glass panel •...
- Page 47 PAGE 47 INALTO.HOUSE Cleaning and Care (Continued) Cleaning the interior glass of the oven The interior glass of the oven door can be removed: with the door in the semi-open position, use both hands to remove the glass .After cleaning, refit the the glass by proseeding in reverse order.
- Page 48 PAGE 48 Cleaning and Care (Continued) Removing and fitting the appliance door You can remove the appliance door for easier cleaning. The hinges of the appliance door are each secured by a locking lever. When the locking lever is folded in (A), the appliance door is secured.
- Page 49 PAGE 49 INALTO.HOUSE Cleaning and Care (Continued) Fitting the appliance door Proceed as follows: Hold the appliance door at an angle. Insert both hinges, left and right, into the supports. Position the door so that the hinge grooves engage on both sides.
- Page 50 PAGE 50 Cleaning and Care (Continued) Removing and inserting the hook-in racks You can remove the hook-in racks in order to clean them separately. The hook-in racks are all fixed to the walls of the cooking compartment at four points. Removing the hook-in To remove the hook-in racks, proceed as follows: racks...
-
Page 51: Troubleshooting
PAGE 51 INALTO.HOUSE Troubleshooting Faults and the after-sales service Malfunctions often have simple explanations. Please read the following notes before calling the aftersales service. Fault Possible cause Remedial action The door panel steams up when Normal occurrence; Not possible; this has no the oven is hot. - Page 52 PAGE 52 Troubleshooting (Continued) Replacing the oven light bulb WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock If the oven light bulb fails, it must be replaced. Replacement heat-resistant bulbs can be obtained from the after-sales service or from specialist retailers.
- Page 53 PAGE 53 INALTO.HOUSE Troubleshooting (Continued) Aftersales service Our after-sales service is there for you if your appliance needs to be repaired. You will find the address and telephone number of your nearest after- sales service centre in the phone book. The after-...
-
Page 54: Tips And Tricks
PAGE 54 Tips and Tricks Tips and tricks The following are tips and tricks to help you when cooking food in your appliance. Tips for saving energy Here are a few tips for saving energy when using the hob and oven. Tips on using the hob Suitable cookware Make sure that the diameter of the cookware is... - Page 55 PAGE 55 INALTO.HOUSE Tips and Tricks (Continued) Tips for using your appliance The following tips relate to ovenware and cooking and explain what to do if something goes wrong. General tips Since a lower temperature allows more even browning. Clean the appliance and accessories after each use, once they have cooled down.
- Page 56 PAGE 56 Tips and Tricks (Continued) Baking tips How to confirm whether your Approximately 10 minutes before the end of the sponge cake is cooked baking time stated in the recipe, pierce the highest through. point of the cake with a wooden skewer. If no cake mixture sticks to the wood, the cake is ready.
-
Page 57: Wiring Diagram
PAGE 57 INALTO.HOUSE Wiring Diagram... -
Page 58: Warranty
PAGE 58 Warranty Warranty terms and conditions: In this warranty Cooking appliances (cookers) (a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning This document sets out the terms and conditions of the referred to in the ACL; product warranties for Residentia Group Appliances. - Page 59 PAGE 59 INALTO.HOUSE Warranty (Continued) You will bear the cost of transportation, travel and This warranty, the contract to which it relates delivery of the Appliance to and from Residentia and the relationship between you and Residentia Group or its ASR. If you reside outside of the...
- Page 60 A H I G H E R L E V E L O F L I V I N G VER SION A RESIDENTIA GROUP INITIATIVE...
