WT sensor PC91 Quick Start Manual

Monocrystalline silicon pressure sensor

Advertisement

Quick Links

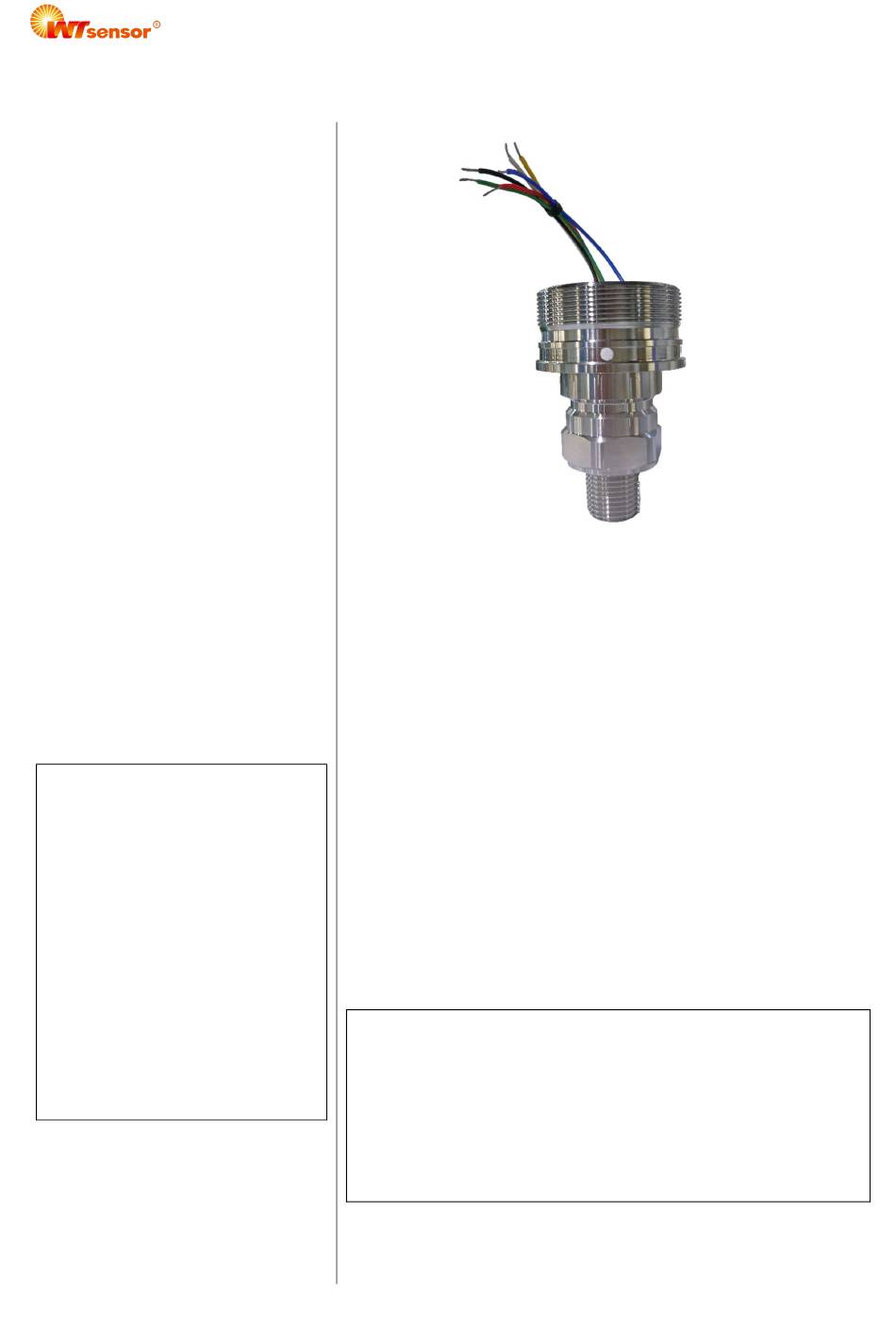

PC91 Monocrystalline Silicon Pressure Sensor
Features
Imported MEMS
monocrystalline silicon
pressure die
With overload protection
316L stainless steel all welded
integrated structure
Gauge pressure type applicable
to negative pressure
measurement
Suitable for a variety of threads
and shells
Applications and industries
Provide OEM for industrial
transmitter manufacturers
Notes:
1 Do not touch the diaphragm with
hard
objects,
which
damage to the diaphragm.
2 Please read the Instruction Manual of
the product carefully before installation
and check the relevant information of
the product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause
danger or personal injury.
Version No.: V1.1
Product overview
PC91 Monocrystalline Silicon Pressure Sensor adopts the
imported MEMS monocrystalline silicon pressure die, achieves
international leading overpressure performance and ensures the
excellent stability of signal. It is assembled in all-welded seal
structure and filled with silicon oil in high vacuum. Measuring
diaphragm of different materials isolates measured medium and
pressure die, meanwhile, the sensor performs long-term reliable
measurement of differential pressure signals of various strong
corrosive medium.
PC91 Monocrystalline Silicon Pressure Sensor allows
may
cause
measured pressure to act directly on the diaphragm of sensor.
Then the diaphragm produces a microdisplacement proportional
to the pressure, which can be detected with the integrated
electronic circuit and be converted to output a standard
measurement signal of the corresponding pressure.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
1
www.wtsensor.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PC91 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WT sensor PC91

  • Page 1 Suitable for a variety of threads ■ and shells Product overview PC91 Monocrystalline Silicon Pressure Sensor adopts the Applications and industries imported MEMS monocrystalline silicon pressure die, achieves Provide OEM for industrial international leading overpressure performance and ensures the ■...
  • Page 2 Performance parameters Power supply Constant voltage Operating temp. -40~85℃ Storage temp. -50~125℃ Output voltage 60~140mV Zero temp. coefficient ±0.05%FS/℃ ±0.1%FS (Range≥10kPa) Temp. hysteresis ±0.5%FS (Range<10kPa) Pressure hysteresis ±0.05%FS Long-term drift ±0.05%FS/Year ±0.5%FS (Range≥10kPa) Nonlinearity ±1.5%FS (Range<10kPa) Max. overpressure Refer to “Pressure range selection” Diaphragm material Stainless steel 316L, Hastelloy C Outline dimension...
  • Page 3 Thread code C7: NPT1/2 C7F: NPT1/2 (Female) Dimension In mm Recommended torque 15~25Nm 15~25Nm Electrical connection Electrical schematic diagram 1* Electrical schematic diagram 2 Electrical schematic diagram 3 Wire color Wire definition Excitation+ (IN+) Blue Excitation- (IN-) Yellow Output+ (OUT+) White Output- (OUT-) Green...
  • Page 4 C7=NPT1/2 C7F= NPT1/2 Female Example: PC91-250kGC7FH11-Z Refer to product model PC91, with pressure range 250kPa, pressure reference gauge pressure, pressure connection NPT1/2 Female, rear thread 55-16 British thread, diaphragm material stainless steel 316L and 1×7P terminal. Wotian reserves the right to make any change in this publication without notice. The information provided is believed to be accurate and reliable as of this product sheet.
