WT sensor PC90D Quick Start Manual

Monocrystalline silicon differential pressure sensor

Advertisement

Quick Links

Features
Imported ultra-high stability
differential pressure die
High accuracy and excellent
stability
Static pressure error within
± 0.15%FS/10MPa
Patented double overpressure
protection diaphragm design
Unilateral overpressure limit of up
to 40MPa
Constant voltage excitation
316L stainless steel all welded
integrated structure
Positive and negative pressure
symmetrical, no O-ring inside
With small flange kit
Applications
Differential pressure transmitter
core component
Differential pressure flow
transmitter core component
Notes:
1 Do not touch the diaphragm with hard
objects, which may cause damage to the
diaphragm.
2 Please read the Instruction Manual of
the product carefully before installation
and check the relevant information of the
product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause
danger or personal injury.

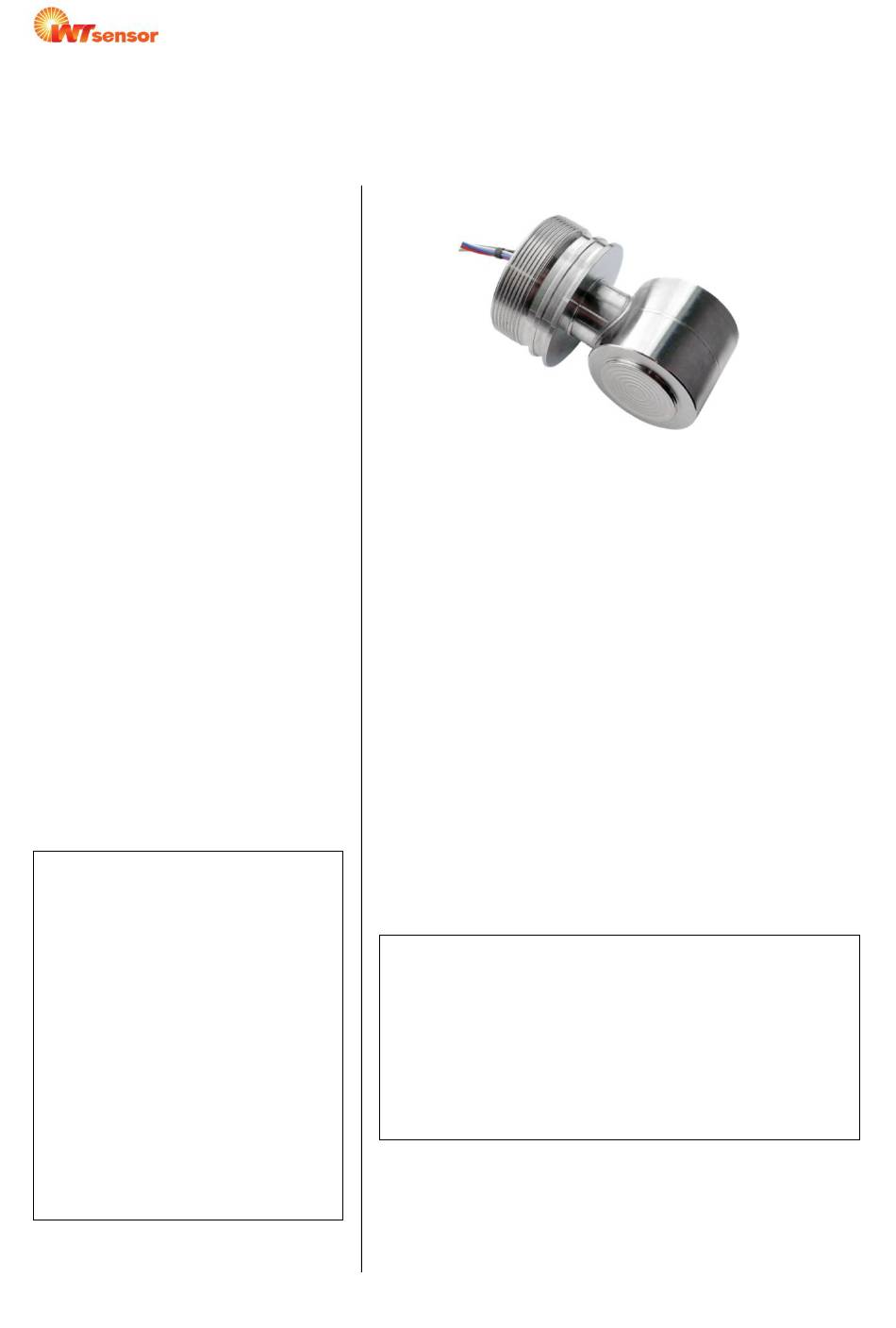

PC90D Monocrystalline Silicon
Differential Pressure Sensor
Overview
PC90D
Sensor is a kind of differential pressure sensor designed
with overpressure protection function. The differential
pressure sensitive core element adopts high performance
piezoresistive silicon chip, which is assembled in all-welded
seal structure and filled with silicon oil in high vacuum.
Diaphragm of different materials isolates measuring
medium and differential pressure die, meanwhile, the
sensor performs long-term reliable measurement of
differential pressure signals of various strong corrosive
media. Differential pressure sensor converts the measured
differential pressure signal into millivolt voltage signal
proportional to its linearity by external constant current or
constant voltage excitation.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference
only. Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information
is provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
Monocrystalline
1
Silicon
Differential
www.wtsensor.com
Pressure

Advertisement

loading
Need help?

Need help?

Do you have a question about the PC90D and is the answer not in the manual?

Questions and answers

Summary of Contents for WT sensor PC90D

  • Page 1 PC90D Monocrystalline Silicon Differential Pressure Sensor Features ■ Imported ultra-high stability differential pressure die ■ High accuracy and excellent stability ■ Static pressure error within ± 0.15%FS/10MPa ■ Patented double overpressure protection diaphragm design ■ Unilateral overpressure limit of up...
  • Page 2 Performance parameters Supply Operating temp. -40℃-85℃ Storage temp. -50℃-125℃ Output voltage 60~140mV Zero temp. coefficient ± 0.05%FS/℃ ± 0.1%FS(10kPa<Range≤1000kPa) Temp. hysteresis ± 0.5%FS(Range≤10kPa) Pressure hysteresis ± 0.025%FS Long-term drift ± 0.05%FS/Year ± 0.5%FS(10kPa<Range≤1000kPa) Nonlinearity ± 1.5%FS(Range≤10kPa) Static pressure impact ± 0.15%FS/10MPa Diaphragm material Stainless steel 316L Structure &...
  • Page 3 Structure & dimensions (cont.) Thread code Dimensional drawing in mm H11: 55-16 British thread Pressure range selection Code Pressure range Unilateral overpressure Static pressure -6kPa~0~6kPa 16MPa 16MPa -40kPa~0~40kPa 16MPa 16MPa -100kPa~0~100kPa 100k 16MPa 25MPa -250kPa~0~250kPa 250k 16MPa 25MPa -1MPa~0~1MPa 16MPa 40MPa Electrical connection Schematic Diagram 1*...
  • Page 4 H10 = M56×1.5 H11 = 55-16 British thread Example: PC90D-100kH11M1R1 Refer to product model PC90D, with pressure range -100kPa~0~100kPa, thread 55-16 British thread, diaphragm material stainless steel 316L, and filling oil silicon oil. Ordering tips: 1. Accessories need to be ordered separately.
  • Page 5 Wotian reserves the right to make any change in this publication without notice. The information provided is believed to be accurate and reliable as of this product sheet. Contact us Nanjing Wotian Technology Co.,Ltd. Add: 5 Wenying Road, Binjiang Development Zone, Nanjing, 211162, China Sales Manager: Wuzhou Lian MP: 0086-13998828452 Email: lianwuzhou@wtsensorus.com...
