WT sensor PC12K Quick Start Manual

Flush diaphragm pressure sensor

Advertisement

Quick Links

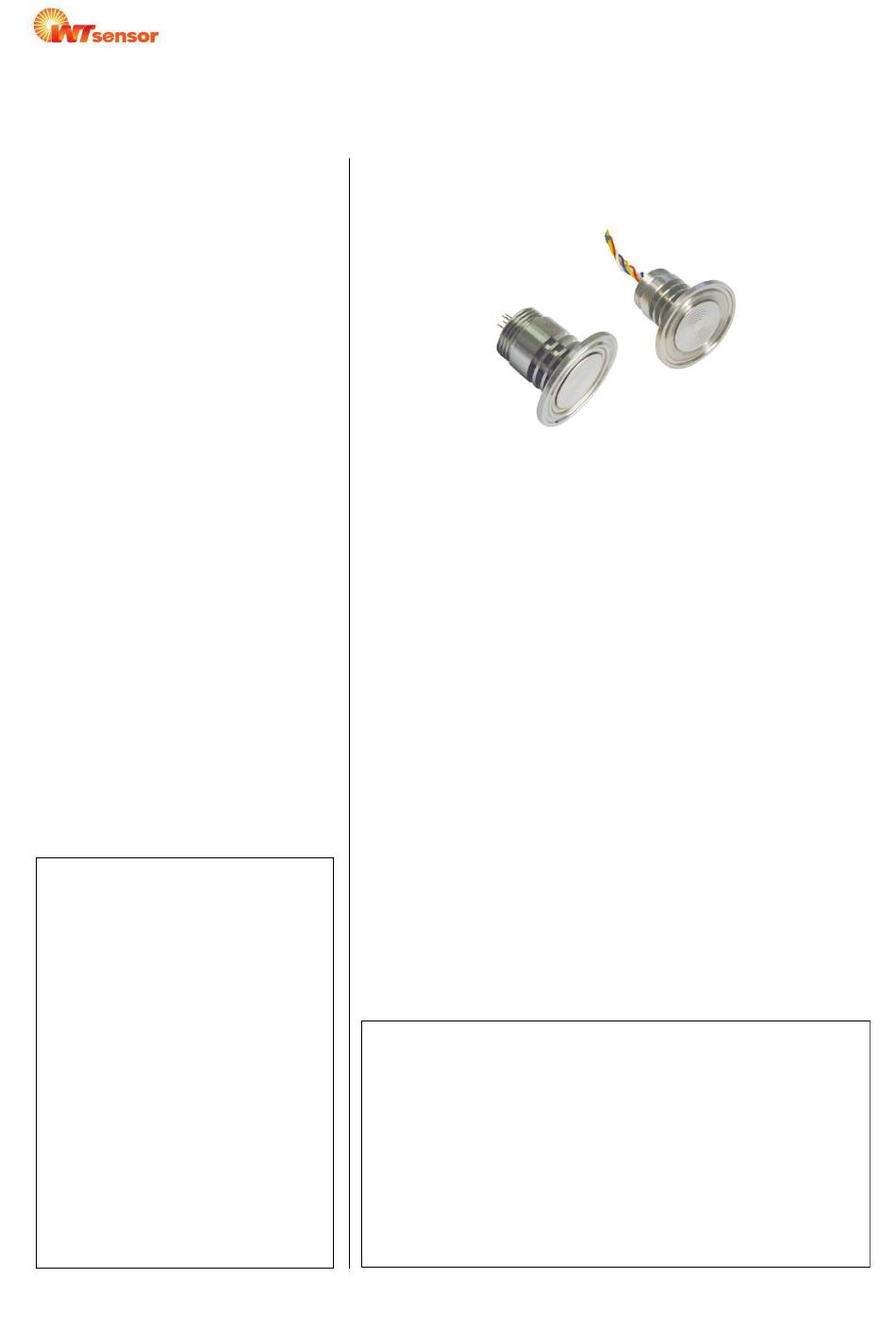

PC12K Flush Diaphragm Pressure Sensor with Clamp

Features

Flush diaphragm pressure sensor
with clamp structure
Imported highly reliable pressure
die
A single time silicon oil isolated
filling technology
Compensation board filled with
glue
for
protection
moisture
All
stainless
material
High accuracy, high reliability
Strong anti-interference, good
long-term stability
■18 months warranty period

Applications

■Medical, food industry
■Environmental protection,
chemical, coating
■Polyurethane equipment
■Industry standards supporting

Notes:

1 Do not touch the diaphragm with
hard objects, which may cause
damage to the diaphragm.
2 Please read the Instruction
Manual of the product carefully
before installation and check the
relevant
information
product.
3 Strictly follow the wiring method
for wiring, otherwise it may
cause product damage or other
potential faults.
4 Misuse of the product may
cause danger or personal injury.
against
steel
housing

Product overview

filling technology. The perceived pressure is transmitted to the
pressure chip through the silicone oil to generate an electrical
signal, and the compensation circuit corrects the pressure
signal to a linear pressure signal. The clamp face diaphragm
is exposed to direct pressure, which can prevent scaling,
unsanitary and viscous pressure blockage. It is especially
suitable
measurement in the medical and food industries. It is widely
used in food, pharmaceutical, winemaking and other sanitary
industries.
make products of special structure and size. We have mature
batch production lines, which can ensure production tasks be
finished perfectly.
Notes:
1 Do not misuse documentation.
of
the
2 The information presented in this product sheet is for
reference only. Do not use this document as a product
installation guide.
3 Complete installation, operation, and maintenance
information is provided in the instructions of the product.
4 Misuse of the product may cause danger or personal
injury.
PC12K pressure sensor adopts a single time silicon oil
for
viscous
The company can customize products for customers, to
1
fluid
pressure
and
www.wtsensor.com
liquid
level

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC12K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WT sensor PC12K

  • Page 1 Product overview Strong anti-interference, good ■ long-term stability PC12K pressure sensor adopts a single time silicon oil ■18 months warranty period filling technology. The perceived pressure is transmitted to the pressure chip through the silicone oil to generate an electrical...
  • Page 2 Electrical performance parameters Pressure range -100kPa~0~10kPa…10MPa Pressure reference Gauge pressure, Absolute pressure, Sealed gauge pressure Excitation 1.5mA recommended for constant current Input impedance Constant current: 2kΩ~5kΩ Electrical connection Gold-plated KOVAR pin or silicon soft wire Compensated temp. Constant current: 0℃~60℃(≤70kPa); -10℃~70℃(Other ranges) Operating temp.
  • Page 3 Structure and dimensions Wire color Definition 110mm silicon wire Airway Excitation+(IN+) Blue Excitation-(IN-) Yellow Output+(OUT+) White Output-(OUT-) Rear thread 1.5” clamp How to choose cooling elements: 110mm silicon wire Airway Medium temp.: -40℃~150℃ cooling elements) Medium temp.: -40℃~220℃ cooling elements) Rear thread 2”...
  • Page 4 K2 = 2” clamp I1 = 1.5mA Example: PC12K-35kGI1K1H1T3 Refer to product model PC12K, with pressure range 35kPa, gauge pressure, 1.5mA constant current excitation, 1.5” clamp, 3 pieces cooling elements, and rear thread M25×1. Ordering tips: 1 Pressure range can be selected higher or lower than actual conditions but should be within ±30%FS.
  • Page 5 ⑵ Absolute pressure is based on vacuum. ⑶ As for sealed gauge pressure, PC10 uses absolute pressure die for gauge pressure product based on the atmospheric pressure of production site. For pressure range above 6MPa, gauge pressure cannot be selected, but only sealed gauge pressure. 3 Confirm the maximum overload of the applied system, which should be less than the overload protection limit of the sensor, otherwise it will affect the product life or even damage the product.
