WT sensor PC12K Quick Start Manual

Flush diaphragm pressure sensor with clamp

Advertisement

Quick Links

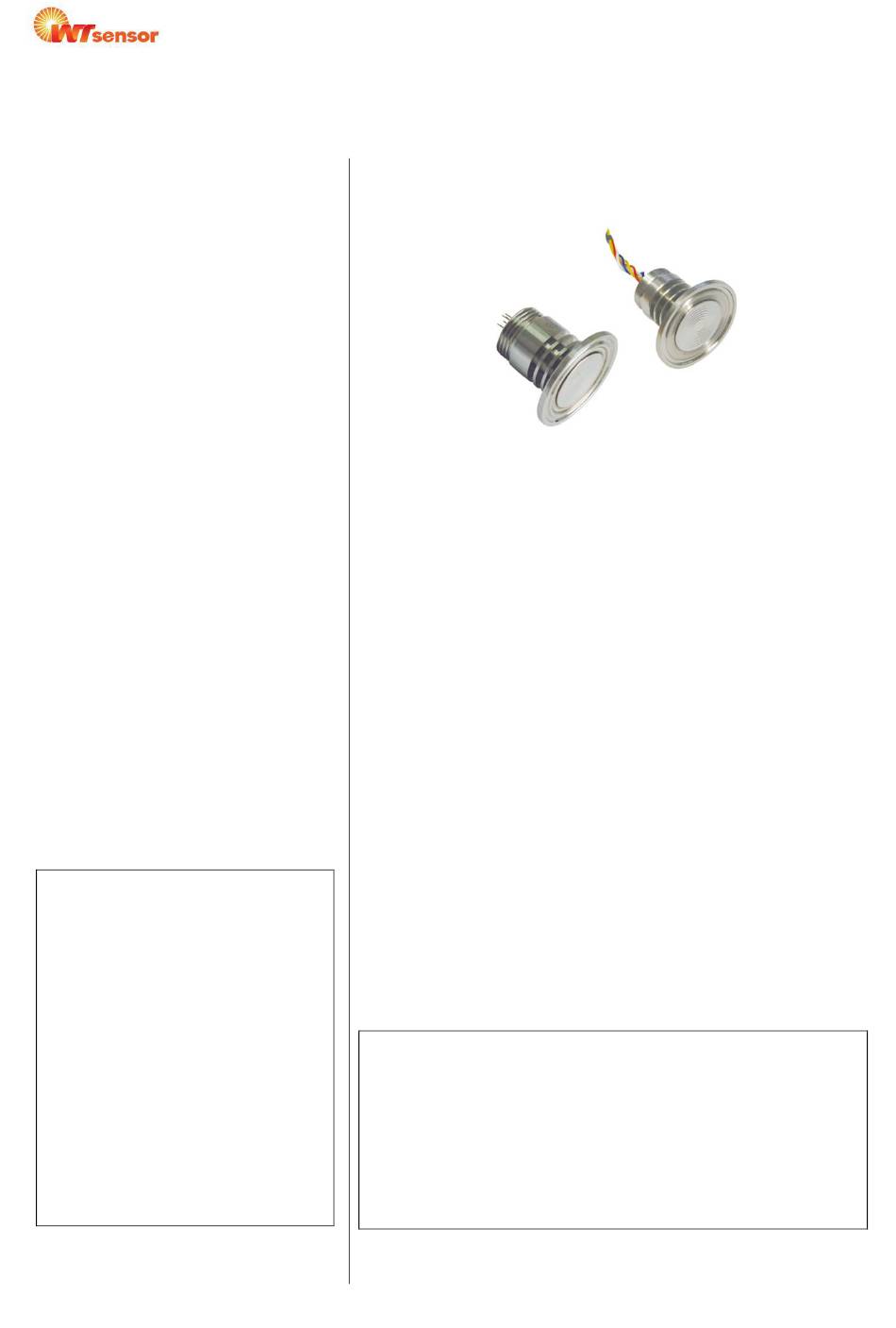

PC12K Flush Diaphragm Pressure Sensor with Clamp

Features

Flush diaphragm with clamp
structure
High reliability imported pressure
chip
One-time silicon oil filling
technology
Compensation board filled with
glue for moisture-proof protection
All stainless steel housing
High precision and stability
Strong anti-interference and
good long-term stability
18 months warranty

Applications

Medical, food industry
Environmental protection
chemical coating
Polyurethane equipment
Industry standard support
Notes:
1 Do not touch the diaphragm with hard
objects, which may cause damage to
the diaphragm.
2 Please read the Instruction Manual of
the
product
carefully
installation and check the relevant
information of the product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause
danger or personal injury.

Product overview

PC12K clamp type pressure sensor adopts one-time silicon oil
filling technology. The pressure felt by the diaphragm is
transmitted to the pressure chip through the silicon oil, and the
compensation circuit corrects the pressure signal into a linear
electric signal. The clamp face diaphragm is exposed to direct
pressure, which can prevent scaling, unhygienic and sticky
pressure blockage and other problems. It is widely used in
food, pharmaceutical, wine-making and other sanitary
industries as well as occasions where the measuring medium
may be fouled.
Customization is available for special structure and size of the
product. The company has a mature batch production line that
can complete production tasks in time with quality.
before
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
1
www.wtsensor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC12K and is the answer not in the manual?

Questions and answers

Summary of Contents for WT sensor PC12K

  • Page 1 ■ 18 months warranty Product overview PC12K clamp type pressure sensor adopts one-time silicon oil Applications filling technology. The pressure felt by the diaphragm is transmitted to the pressure chip through the silicon oil, and the ■...
  • Page 2 Electrical performance parameters Pressure range -100kPa~0~10kPa…10MPa Pressure reference Gauge pressure, Absolute pressure, Sealed gauge pressure Excitation 1.5mA recommended for constant current Constant current: 2kΩ~5kΩ Input impedance Electrical connection Gold-plated KOVAR pin or silicon soft wire Compensated temp. Constant current: 0℃~60℃(≤70kPa); -10℃~70℃(Other ranges) Operating temp.
  • Page 3 Structure and dimensions Wire color Definition Airway 110mm silicon wire Excitation+(IN+) Blue Excitation-(IN-) Yellow Output+(OUT+) White Output-(OUT-) Rear thread 1.5” clamp 110mm silicon wire Airway Cooling fan selection: Medium temp.: -40℃~85℃ (No cooling fan) Medium temp.: -40℃~150℃ (3 cooling fans) Medium temp.: -40℃~220℃...
  • Page 4 K2 = 2” clamp I1 = 1.5mA Example: PC12K-35kGI1K1H1T0 Refer to product model PC12K, with pressure range 35kPa, gauge pressure, 1.5mA constant current excitation, 1.5” clamp, no cooling fan, and rear thread M25×1. Ordering tips: 1 Pressure range can be selected higher or lower than actual conditions but should be within ± 30%FS.
  • Page 5 on the atmospheric pressure of production site. For pressure range above 6MPa, gauge pressure cannot be selected, but only sealed gauge pressure. 3 Confirm the maximum overload of the applied system, which should be less than the overload protection limit of the sensor, otherwise it will affect the product life or even damage the product. 4 The commonly used compensation of the product is 1.5mA constant current compensation.
