New Classic Furniture B2210-110 Assembly Instructions

Z:\DRAWING\AUTOCAD LIBRARY\LOGO\NEWCLASSICLOGO.png Z:\DRAWING\AUTOCAD LIBRARY\LOGO\NEWCLASSICLOGO.png
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with the
parts list and/or hardware list shown below.
Caution : please read the instruction thoroughly before assembly.
1. We recommended that you assemble this product with the assistance of another person, this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not tighten screws or bolt until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
NO. DESCRIPTION
A HEADBOARD
B FOOTBOARD
C SIDE RAIL
D SLAT
E SLAT SUPPORT LEG

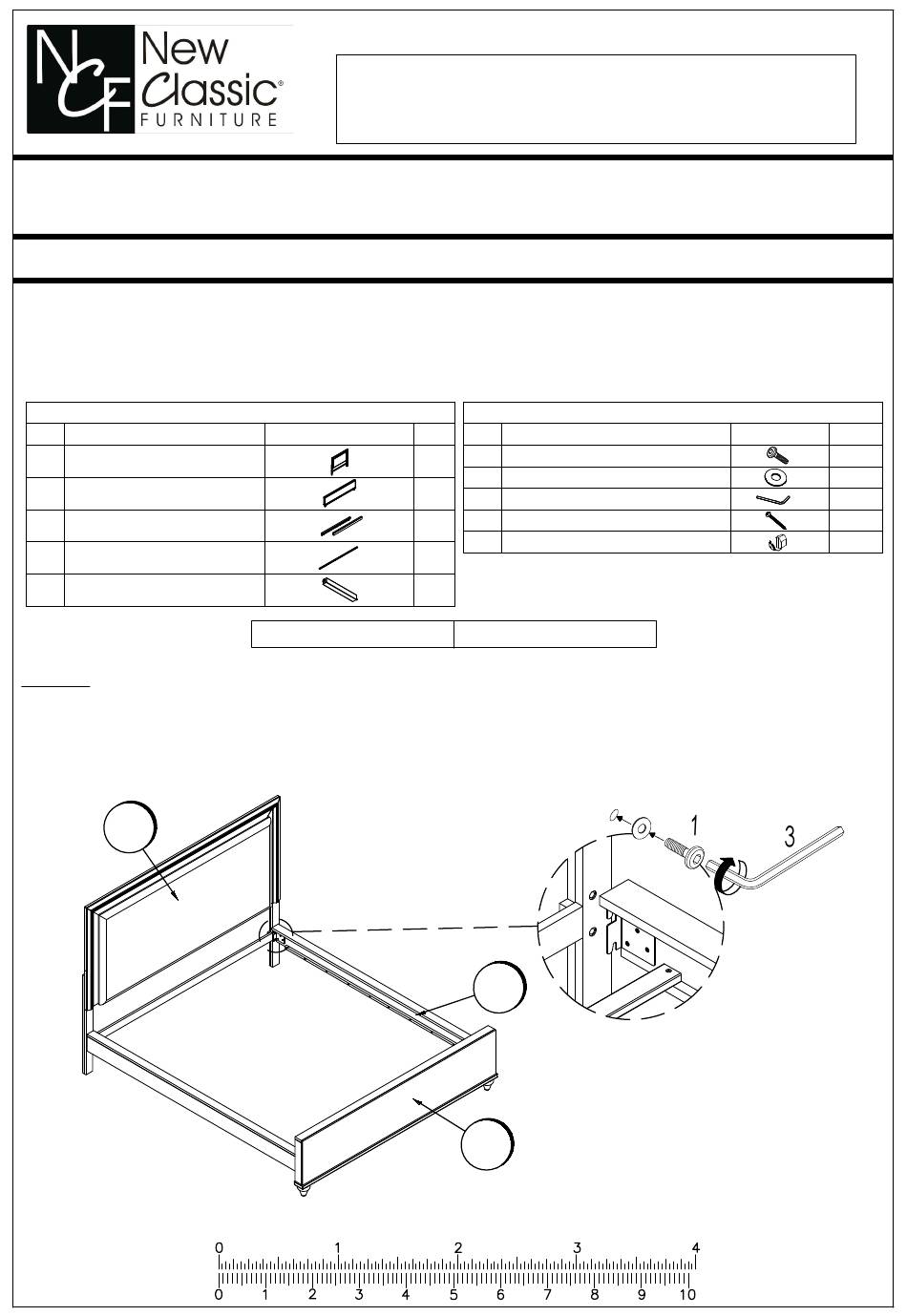

STEP 1 :
Assembly the Side Rail (C) to Headboard (A) and Footboard (B) by using Allen Key (3)
with hardware 1 and 2.
A
Created date :30/5/2024
PAGE 1 OF 2
ITEM NO.
B2210-110 LUMINA - 6/6-6/0 EK/WK LIGHTED HEADBOARD
B2210-120 LUMINA - 6/6-6/0 EK/WK FOOTBOARD & SLATS
B2210-230 LUMINA - 6/0 WK SIDE RAILS
PARTS LIST
SKETCH
WEIGHT CAPACITY
inch
Assembly Instructions
QTY NO. DESCRIPTION
1 JCBB - M8 x 25/32''
1 pc
2 FLAT WASHER - M8 x 23/32''
1 pc
3 ALLEN KEY - M5
4 PANHEAD - M4 x 1-3/16''
2 pcs
5 AC/DC ADAPTER
4 pcs
8 pcs
800 lbs
C
B
HARDWARE LIST
SKETCH
2
MADE IN MALAYSIA
QTY
8 pcs
8 pcs
1 pc
8 pcs
1 pc
