Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with the
PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person: this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently
PARTS LIST
NO:
COMPONENT
A
Headboard
B
Footboard
C
Side Rail
D
Headboard Crossbar
Left Side Facing
E
(LSF) HB Leg
Right Side Facing
F
(RSF) HB Leg
G
Roll-Out Slat
H
Support Legs
B2442-110
B2442-128
B2442-330
SKETCH
Q'TY
1PC
1PC
2PCS
1PC
1PC
1PC
1 SET
8PCS
MADE IN VIETNAM

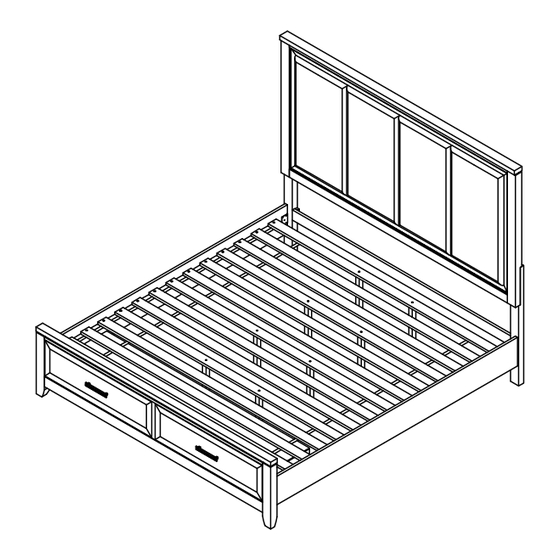

Assembly Instructions
FIONA 6/6-6/0 EK/WK HEADBOARD
FIONA 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS
FIONA 5/0-6/6 Q/EK RAILS
HARDWARE LIST
NO:
COMPONENT
1
Bolt 5/16" x 1-3/4"
2
Lock Washer 5/16"
3
Flat Washer 5/16"*3/4"
4
Allen key
5
Screw: #8*1-1/4"
SKETCH
Q'TY
8pcs
8pcs
8pcs
1pc
26pcs
PAGE: 1 of 4
Advertisement
Related Manuals for New Classic Furniture FIONA B2442-110
Summary of Contents for New Classic Furniture FIONA B2442-110
- Page 1 Assembly Instructions FIONA 6/6-6/0 EK/WK HEADBOARD B2442-110 B2442-128 FIONA 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS B2442-330 FIONA 5/0-6/6 Q/EK RAILS Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions FIONA 6/6-6/0 EK/WK HEADBOARD B2442-110 B2442-128 FIONA 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS B2442-330 FIONA 5/0-6/6 Q/EK RAILS STEP 1 Assemble LSF HB Leg (E) and RSF HB Leg (F) to Headboard (A) by using Allen Key (4) with hardware 1,2, and 3. Attn: DO NOT TIGHEN THE BOLTS BACK VIEW STEP 2...
- Page 3 Assembly Instructions FIONA 6/6-6/0 EK/WK HEADBOARD B2442-110 B2442-128 FIONA 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS B2442-330 FIONA 5/0-6/6 Q/EK RAILS STEP 3 Assemble side rails (C) to HB legs (E & F) and Footboard (B) as below STEP 4 Assemble the support legs (H) by twisting them on the roll-out slat (G). Then adjust the leveler on the support legs (H) to level with the floor.
- Page 4 Assembly Instructions FIONA 6/6-6/0 EK/WK HEADBOARD B2442-110 B2442-128 FIONA 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS B2442-330 FIONA 5/0-6/6 Q/EK RAILS STEP 5 Assemble the roll-out slat (G) to the side rails (C) by using a screwdriver with hardware 5. PAGE: 4 of 4 MADE IN VIETNAM...
