Step 4, Setup
The InVision Digital Dash comes equipped with a button/knob referred to as the "Selector Knob". To enter the InVision
®
Menu, push in & release the Selector Knob one time. The Main Menu will appear. The Selector Knob also turns slightly left or right. Use the
left or right motion to scroll through the menu. Think of pushing in & releasing the knob as an "Enter" command.
If you attempt to enter the menu while driving (vehicle in motion), you will only get a partial menu. In order to access the full menu, the power

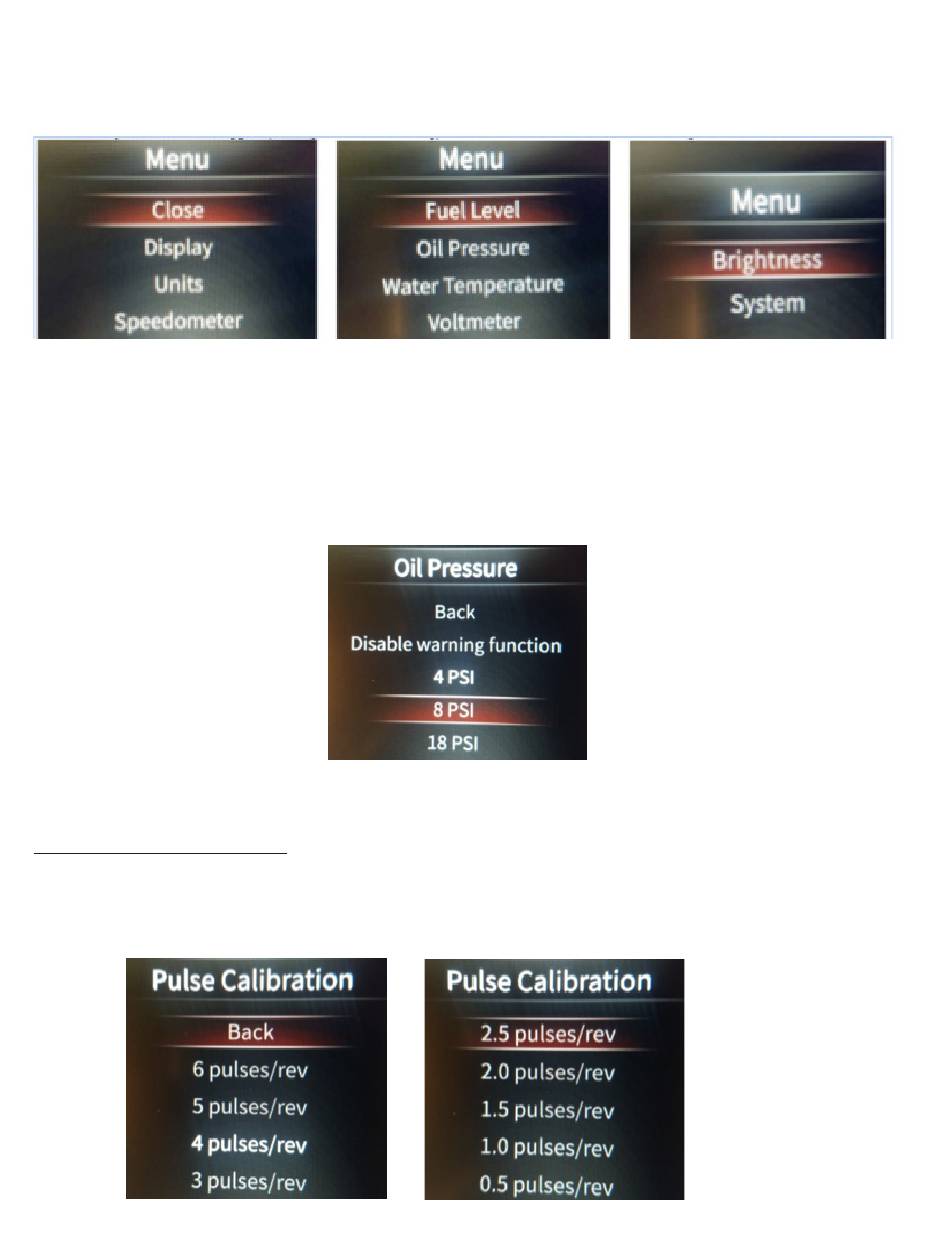

needs to be on, but you need to be stopped (the engine can be running). The full Menu shown is in the below pictures.
Warnings: The InVision ® Digital Dash provides audible and visual warnings for certain parameters. Warnings are only active when the engine
is running. The fuel level warning is not adjustable, and comes pre-set at around 1/8 tank. You can disable the warning if you choose. The oil
pressure warning can be adjusted to turn on at 4, 8, or 18 PSI. You can disable the warning if you choose.
The water temperature warning can be adjusted to turn on at 220, 235, or 250 degrees. You can disable the warning if you choose. The
voltmeter warning can be adjusted to turn on at 11.5, 12.2, or 15.0 volts. You can disable the warning if you choose.
To adjust, or disable a warning, enter the Main Menu and scroll to the gauge you want to adjust (we will show oil pressure here), and press
Enter. Scroll to the value you want to select, and press Enter. To exit, scroll up to Back and press Enter.
Once you are finished adjusting your warnings, and you are back at the Main Menu, scroll to the top until Close is highlighted, and press
Enter.
Tachometer PPR (Pulse Calibration): This is the tachometer calibration. PPR stands for pulses per revolution. A standard V8 with a
distributor type ignition system will be 4ppr. This is also the standard setting for the InVision
setting would be 3ppr. And if you have updated your drivetrain to an LS type engine and are using a factory PCM, the PCM tachometer
output is 2ppr.
To adjust PPR, enter the Main Menu. Scroll to Tachometer, and press Enter. Next, scroll to Pulse Calibration, and press Enter.
Once you have chosen the correct PPR, scroll up to Back, and press Enter. Then, scroll up to Back again, and press Enter. Once you are
back at the Main Menu, scroll to Close and press Enter.
®
Digital Dash. If you have an in line 6, your
®
Digital Dash Main
