VL2 B(P)PC ... EX
12/42
PHOENIX CONTACT
3
4
5
1

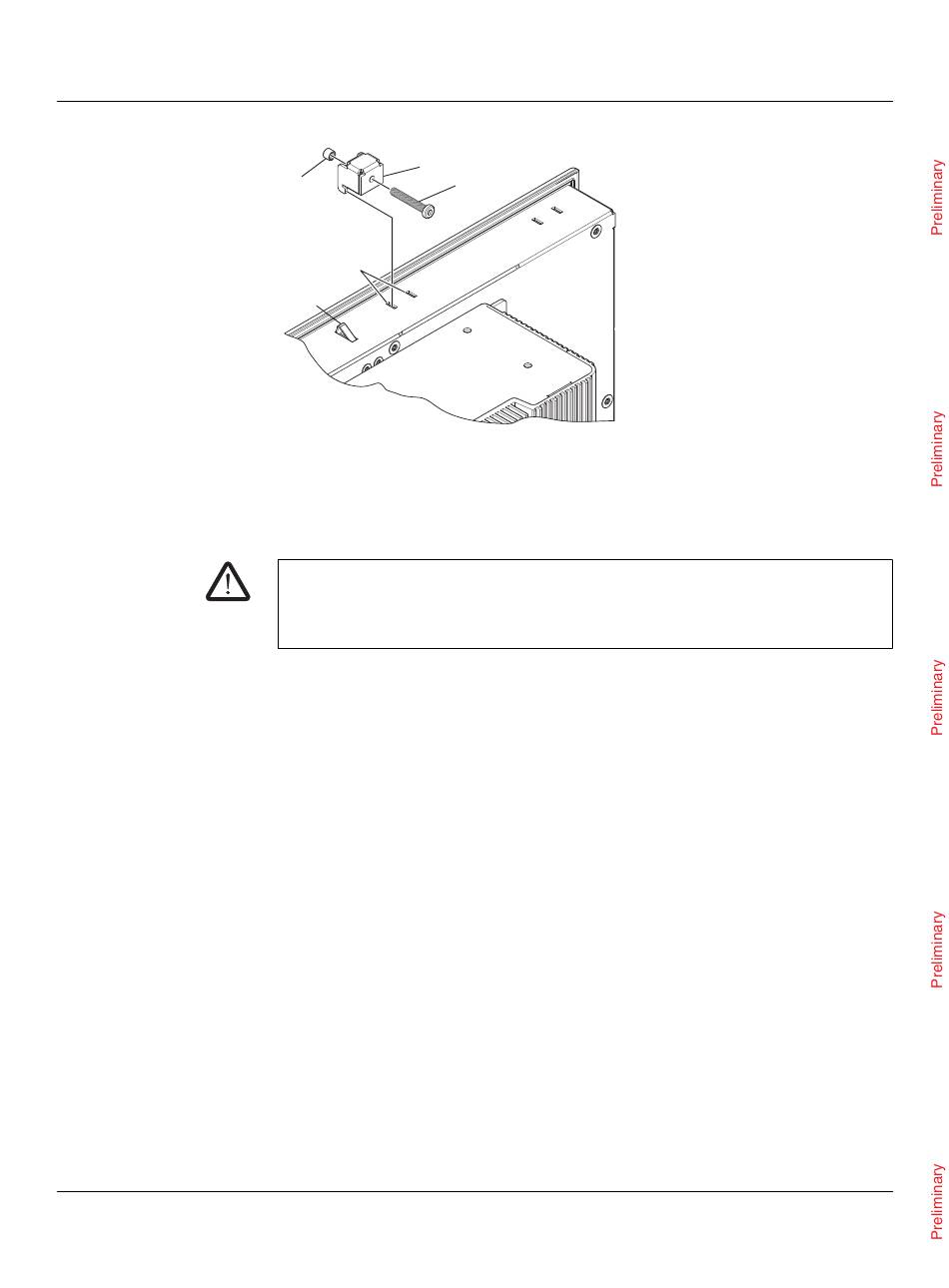

Figure 3-4 Panel-mounting clamps
2. From the front, place the bottom edge of the VL2 PPC ... EX in the opening, making
sure the retention clips (1) are inside the panel. Tilt the top of the VL2 PPC ... EX back
through the opening until the retention clips are inside the panel. Ensure that the gasket
is properly positioned in the groove and against the panel.
CAUTION:
All clamps must be installed around the monitor to secure the VL2 PPC ... EX in the panel.
The retention clips on top and bottom of the monitor only provide temporary assistance
during installation.
3. Insert the screw (2) through the clamp (3) and thread the foot (4) onto the screw.
4. From the rear, place the clamps in the slots (5) on the display. Clamps must be installed
in every slot.
5. Tighten the screws on all clamps, alternating from one side to the other until the front
bezel is secure against the mounting panel. Torque the screws to 0.89 Nm.
Removal
1. Remove power and disconnect cables to the VL2 PPC ... EX.
2. Loosen and remove the clamps securing the VL2 PPC ... EX in the panel.
3. Using an assistant, press the two retention clips along the top, and tilt the
VL2 PPC ... EX forward.
4. Lift the VL2 PPC ... EX so the bottom retention clips clear the panel, and remove.
