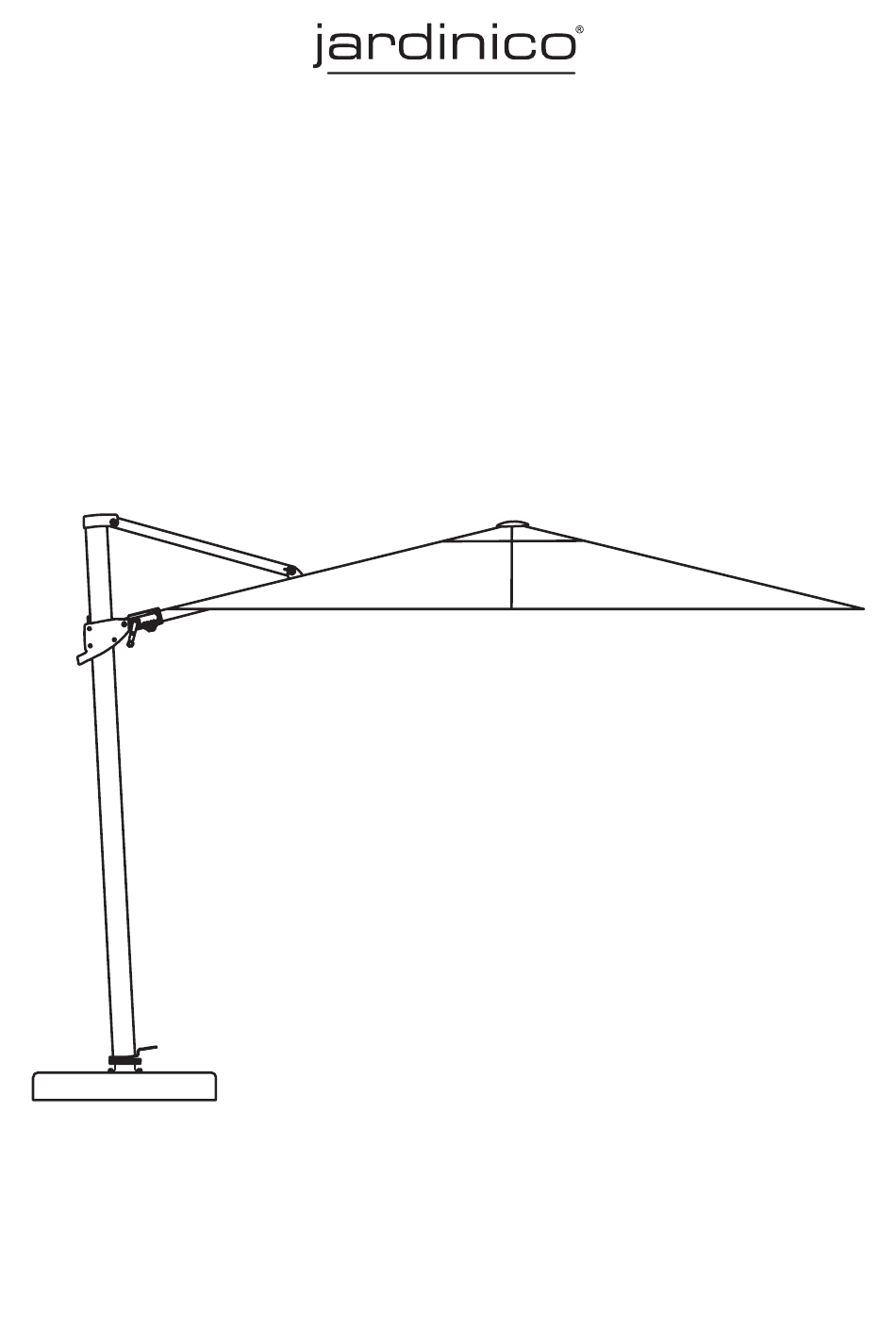

  • Page 1 AZORE FREE POLE ASSEMBLY AND OPERATION GUIDE...
  • Page 2: General Guidelines

    We provide, barring different agreement of more or less, a maximum warranty of 2 years on our products. The warranty takes effect on the day that the product is purchased from an offi cial commercial partner of Jardinico® Parasols (date of invoicing). The warranty applies to production and/or materials errors, caused by normal use.
  • Page 3 AZORE main support arm canopy "close / open" and "left / right" mechanism crank handle slider adjustment knob mast rotation pedal base 300 x 300 cm 343 cm - 135" 7 cm - 2.2" 228 cm - 89.8" 260 cm - 102.4" 330 cm - 129.9"...
  • Page 4 ASSEMBLY INSTRUCTIONS Two-person team is recommended for assembly. · Take the rotation pedal from the umbrella frame and assembly it to its base. · Install the umbrella frame to the rotation pedal with the supplied 2 bolts and tighten using an allen wrench. Do not use power drill. This may cause damage to the base.
  • Page 5 OPERATING INSTRUCTIONS Remove all packaging from the umbrella. OPEN THE UMBRELLA · Remove the strap that holds the canopy structure to the mast when in the closed position. Take note of the “parachute” folding method used to fold the canopy when closed.
  • Page 6 TILT LEFT / RIGHT · Insert crank handle into “right / left” socket. Crank handle right or left until desired tilt degree of shade is reached. Note: do not over crank past “Max” arrow. Doing so may cause damage to your umbrella. ·...
  • Page 7 ROTATE 360° · Pressdown on the rotation pedal. Rotate the sunshade around the pole with 360° to any desired angle. Note: do not use rotating function during winds. Doing so may cause damage to your umbrella. CLOSE THE UMBRELLA · Clutch the handle on the slider, press down the plastic part, and move the slider to the bottom hole of the standing pole and keep it fixed.
  • Page 8 FOLD CANOPY USING PARACHUTE METHOD The 100% solution dyed canopy will last longer if you fold it as it was packed and shipped. This technique is similar to the way a parachute is folded and is especially important when folding the canopy for seasonal storage or when left in the closed position for an extended period of time.
  • Page 9: Maintenance

    · Seaside and indoor pool use: due to demands of both of these environments, Jardinico recommends weekly or biweekly cleaning with mild soap and water to remove the concentrated deposits and protect the powder coat finish.
  • Page 10 ‘after-sales service’ form. This form must Our general sales and delivery terms and conditions, as outlined here, be filled in by an official commercial partner of JARDINICO Parasols. are deemed to have been accepted by the customer, even if these...
  • Page 11 Only the courts of the district of Kortrijk are competent in respect of by normal use. The product shall not be replaced in its entirety if a any and all disputes and Belgian law is applicable. Only JARDINICO defective part and/or component can be replaced. This warranty does Parasols can deviate from this.
