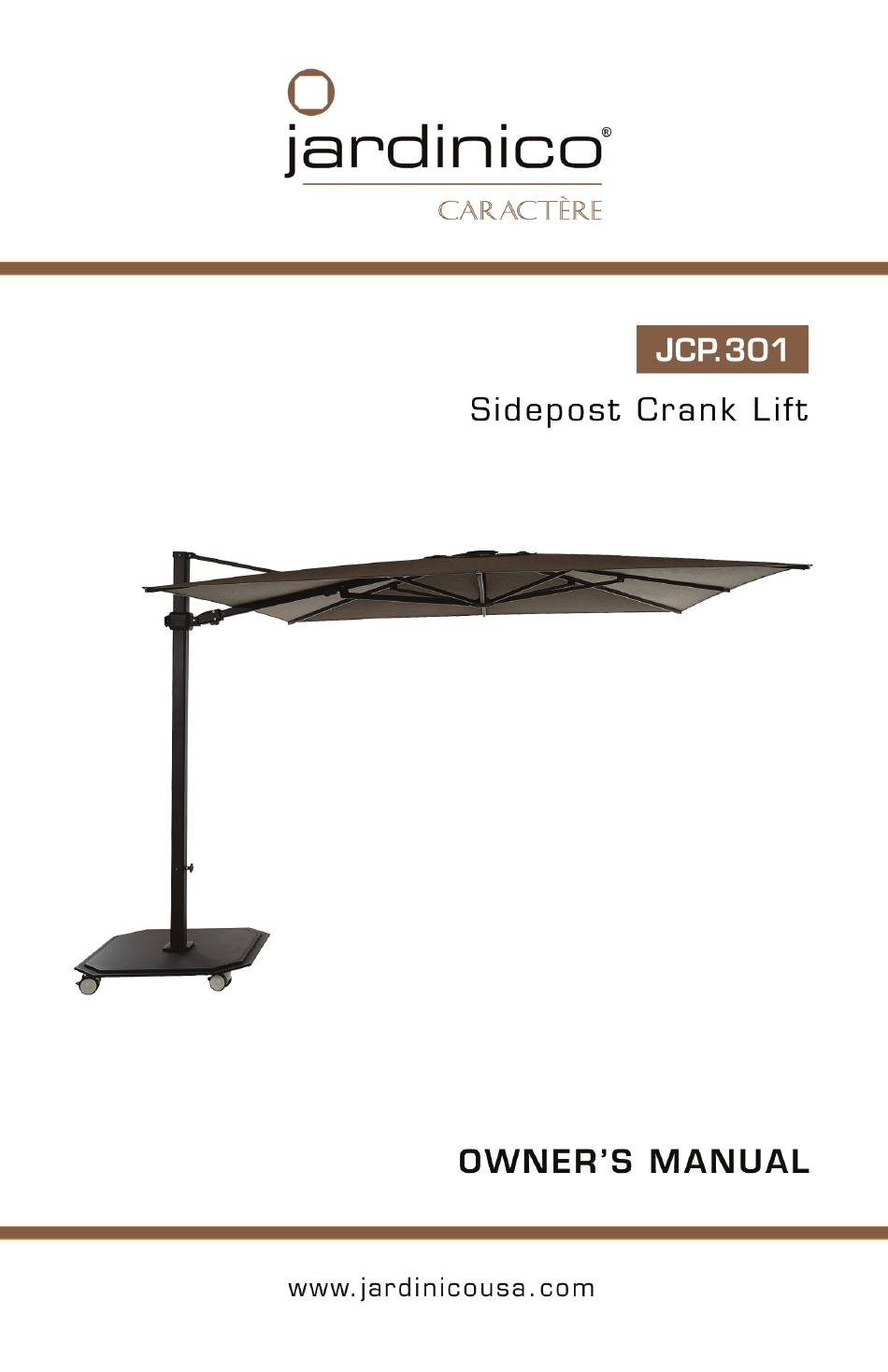

JARDINICO Caractère JCP.301 Owner's Manual
  1. Manuals
  2. Brands
  3. JARDINICO Manuals
  4. Patio Furniture
  5. JCP.301
  6. Owner's manual

JARDINICO Caractère JCP.301 Owner's Manual

Sidepost crank lift
Hide thumbs Also See for Caractère JCP.301:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Caractère JCP.301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JARDINICO Caractère JCP.301

Summary of Contents for JARDINICO Caractère JCP.301

  • Page 2 I M P O R T A N T : Please read this entire manual before installing or operating your umbrella. D I A G R A M & P A R T S L I S T 1. Self-Locking Canopy Fasteners 9.
  • Page 3 A S S E M B L Y I N S T R U C T I O N S Two-person team is recommended for assembly Installing Internal Stem 1. Lay umbrella on soft clean surface. Attach finial to canopy structure. 2.
  • Page 4 O P E R A T I N G I N S T R U C T I O N S Remove all packaging from umbrella. To Open Canopy 1. Remove the strap that holds the canopy structure to the mast when in the closed position. Take note of the “parachute”...
  • Page 5 To Tilt Canopy Left to Right 1. Turn adjustment knob counter clockwise and slide downward to comfortable position. Tighten knob by turning clockwise to secure in place. 2. Insert crank handle into “Right / Left” socket. Crank handle right or left until desired tilt degree of shade is reached.
  • Page 6 To Tilt Canopy Front to Back 1. Turn adjustment knob counter clockwise and slide car upward or downward until desired tilt degree of shade is reached. Tighten knob by turning clockwise to secure in place. NOTE: Do not use tilt function during winds. To Rotate 360°...
  • Page 7 To Close Canopy 1. Bring canopy to 0° (horizontal) tilt position. 2. Insert crank handle in “Close / Open” socket. 3. Turn adjustment knob counter clockwise and begin cranking handle counter clockwise. Canopy will close and umbrella will slide down mast simultaneously by operating the crank handle.
  • Page 8 To Properly Fold Canopy The 100% solution dyed canopy will last longer if you fold it as it was packed and shipped. This technique is similar to the way a parachute is folded and is especially important when folding the canopy for seasonal storage or when left in the closed position for an extended period of time.

  • Page 9: General Guidelines

    2. Inspect the installation fittings, mount bolts, rib spacers, etc. on a regular basis and tighten if necessary. 3. Seaside and indoor pool use: Due to demands of both of these environments, Jardinico recommends weekly or biweekly cleaning with mild soap and water to remove the concentrated deposits and protect the powder coat finish.
  • Page 10 5 Year Limited Warranty covers the wheels, powder coat finish, rust and corrosion on all bases. If the powder coat finish flakes, bubbles, peels or loses color; Jardinico will re-finish or replace the defective base at its discretion. Normal wear and tear is not covered under this limited warranty.
  • Page 11 Those filing warranty claims will be responsible for all shipping, handling, and freight charges on all claims to Jardinico in Baldwin Park, CA. All warranty claims must be submitted with the original proof of purchase, date of purchase, name of dealer, and the description of the damage.
  • Page 12 ® 13401 Brooks Drive, Baldwin Park, CA 91706 626.338.8810 626.338.8816 fax jardinicousa.com info@jardinicousa.com ©2019 JARDINICO. All rights reserved. JAOM-JCP301-1019...
